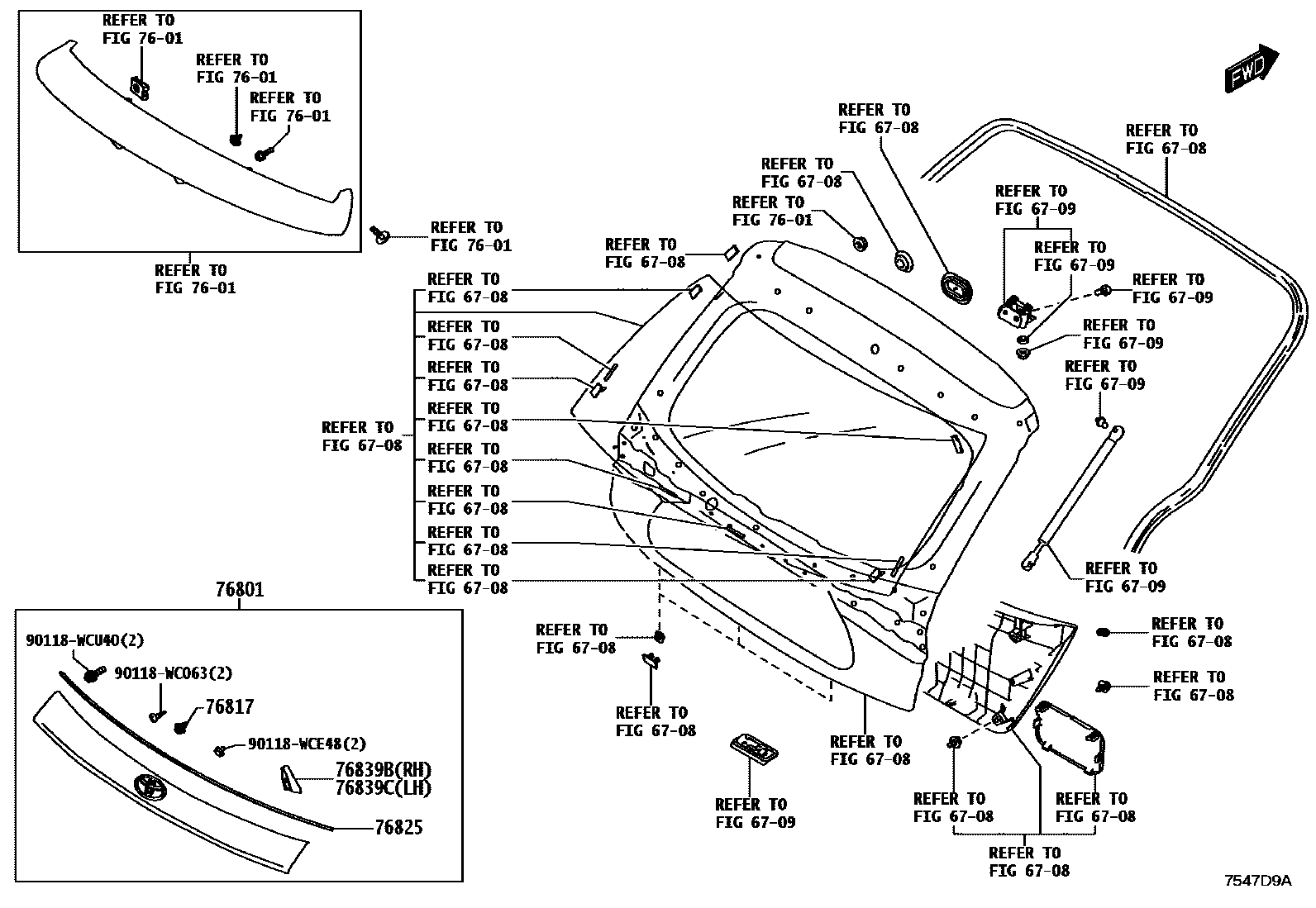

REAR MOULDING

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-WC028iK10T,12N202404

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90118-WCU03×5iK10T,12N202404

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-WC005iK10T,12N202404

76839BCOVER, BACK DOOR GARNISH

main76839-WC001iK10T,12N202404

76839CCOVER, BACK DOOR GARNISH

main76839-WC003iK10T,12N202404

90118WC063

main90118-WC063

90118WCE48

main90118-WCE48

90118WCU40

main90118-WCU40

11 parts on this diagram · 1 diagram in section
