Toyota URBAN CRUISER TAISOR13E — RADIATOR GRILLE

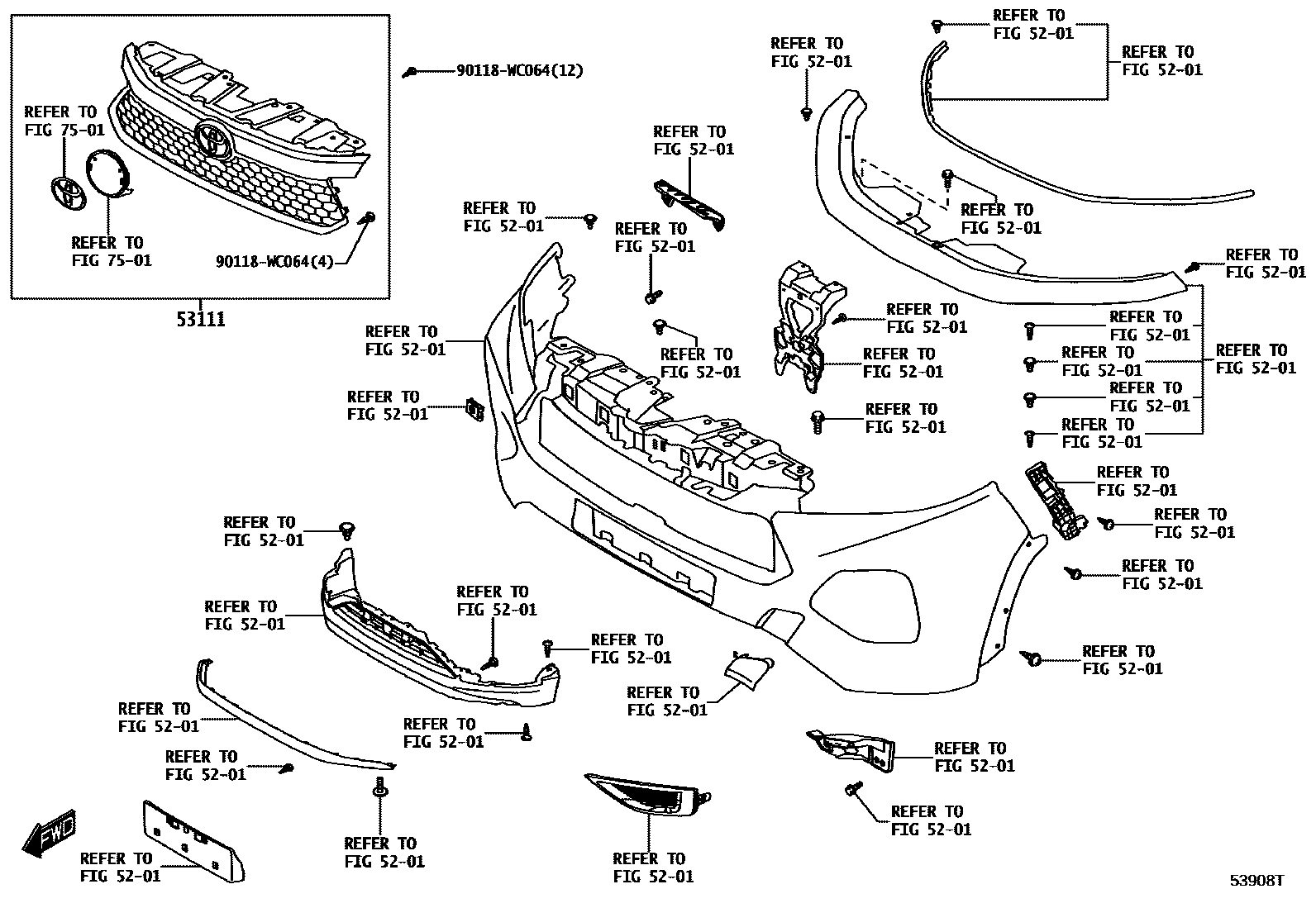

Parts diagram
5201FRONT BUMPER & BUMPER STAY
→ Go to FIG 52-01
53111GRILLE, RADIATOR
53111-WC014
53111-WC015
53111-WC016
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 75-01
90118WC064
90118-WC064

4 parts on this diagram · 1 diagram in section

RADIATOR GRILLE for Toyota URBAN CRUISER TAISOR13E

This section contains 4 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota URBAN CRUISER TAISOR13E. Key components include: FRONT BUMPER & BUMPER STAY, GRILLE, RADIATOR, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
