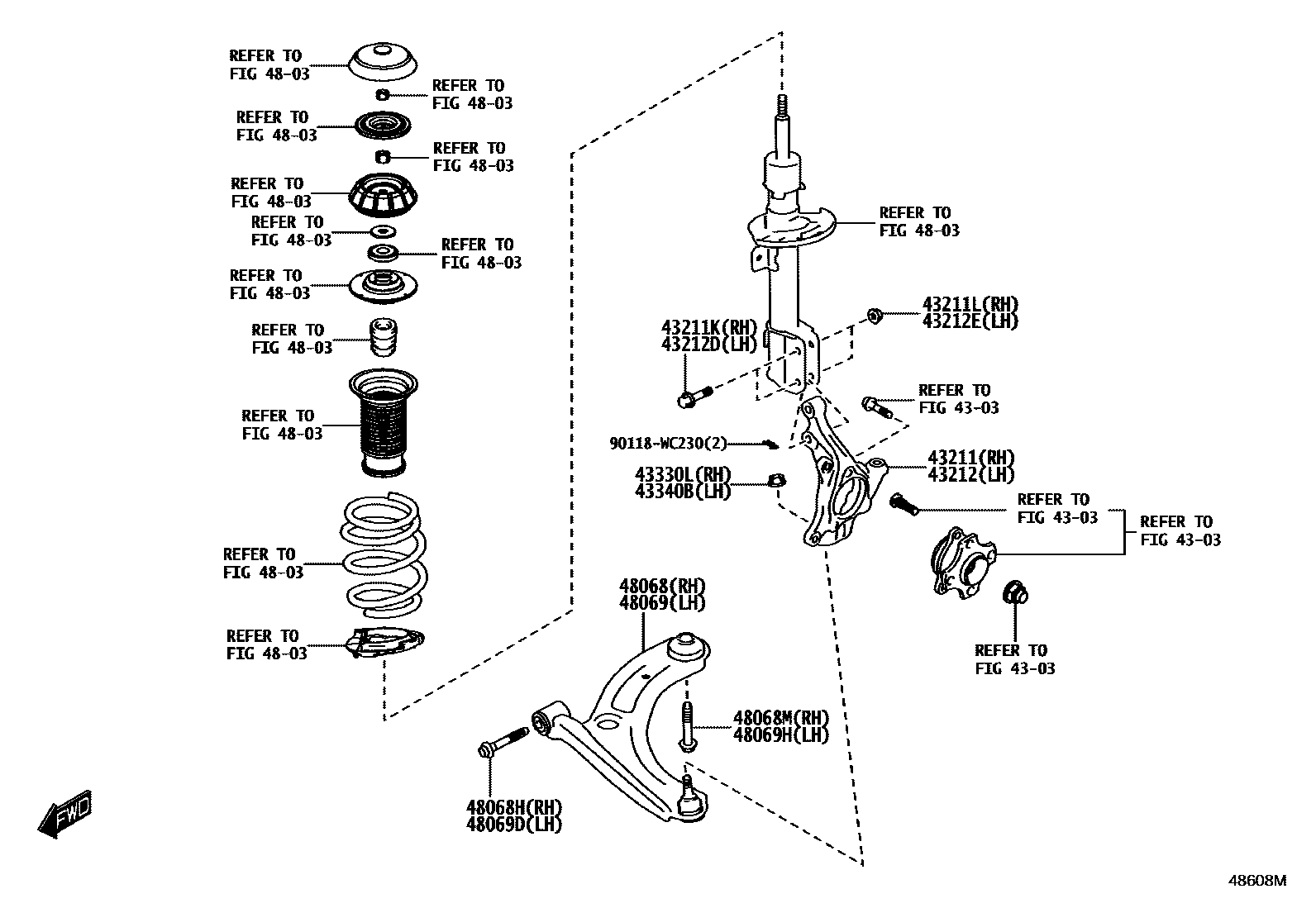

FRONT AXLE ARM & STEERING KNUCKLE
4303FRONT AXLE HUB
43211KNUCKLE, STEERING, RH
43211KBOLT (FOR STEERING KNUCKLE RH)
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212DBOLT (FOR STEERING KNUCKLE LH)
43212ENUT (FOR STEERING KNUCKLE LH)
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
4803FRONT SPRING & SHOCK ABSORBER
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
POS.1; POS.2; POS.21; POS.22
main48068-WC006iK10T..5F..G; K10T..5F..V; K10T..D; K12N..AMT..D; K12N..AMT..S; K12N..E..CNG; K12N..E..GAS; K12N..MTM..D; K12N..MTM..S..GAS; K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.20; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.40; POS.5; POS.6; POS.7; POS.8; POS.9
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
POS.1; POS.2; POS.21; POS.22
main48069-WC006iK10T..5F..G; K10T..5F..V; K10T..D; K12N..AMT..D; K12N..AMT..S; K12N..E..CNG; K12N..E..GAS; K12N..MTM..D; K12N..MTM..S..GAS; K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.20; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.40; POS.5; POS.6; POS.7; POS.8; POS.9
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90118WC230
main90118-WC230
17 parts on this diagram · 1 diagram in section
