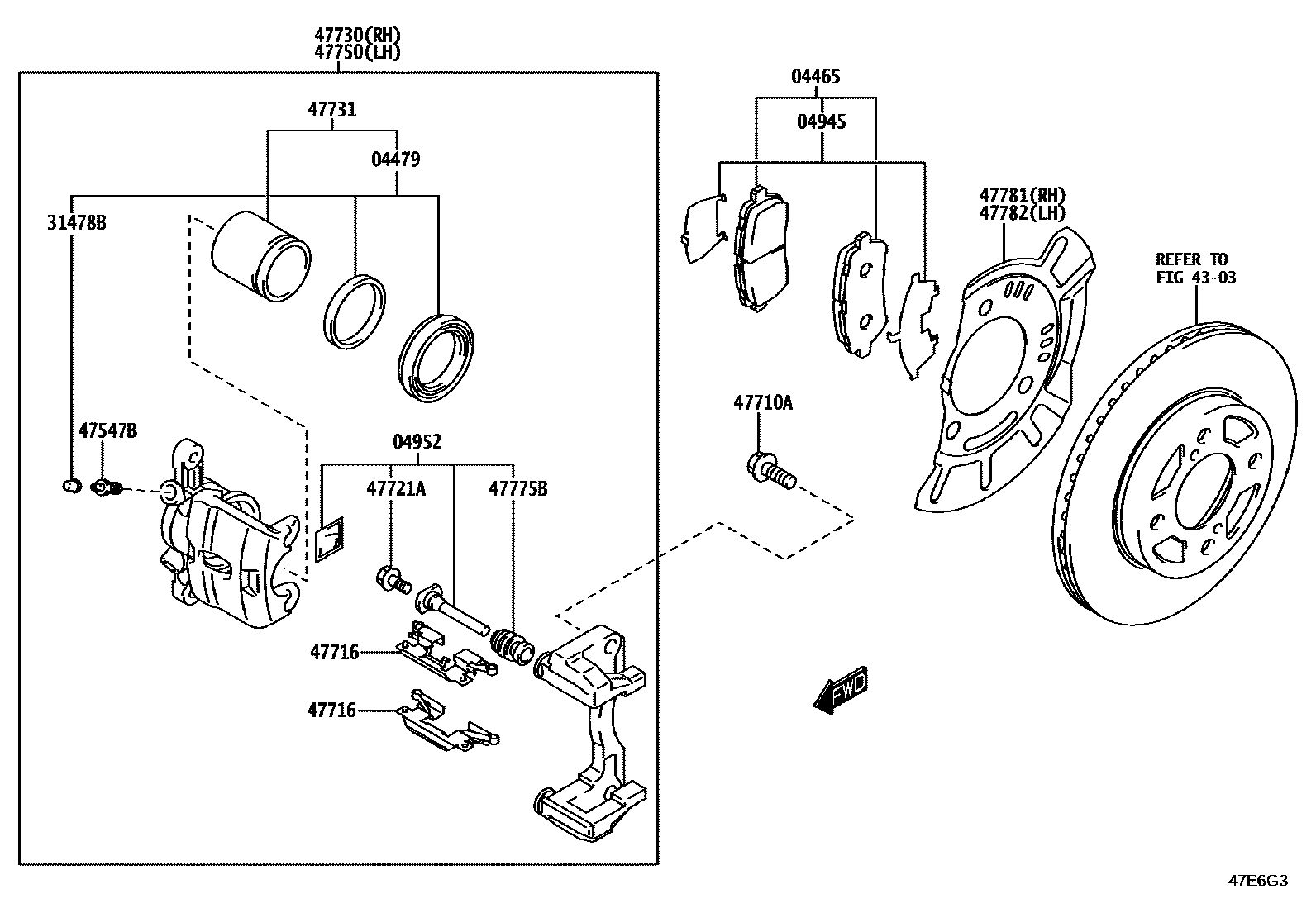

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-WC002iK10T,12N202404

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-WC002iK10T,12N202404

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-WC002iK10T,12N202404

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-WC002iK10T,12N202404

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-WC001iK10T,12N202404

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-WC001iK10T,12N202404

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90118-WC560×4iK10T,12N202404

*12-1.25PX32-15

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47717-WC002×2iK10T,12N202404

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90118-WC561×2iK10T,12N202404

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-WC002iK10T,12N202404

47731PISTON, FRONT DISC BRAKE

main47731-WC002iK10T,12N202404

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-WC002iK10T,12N202404

47775BBOOT, BUSH DUST, NO.1

main47741-WC002×2iK10T,12N202404

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-WC005iK10T,12N202404

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-WC003iK10T,12N202404

16 parts on this diagram · 1 diagram in section
