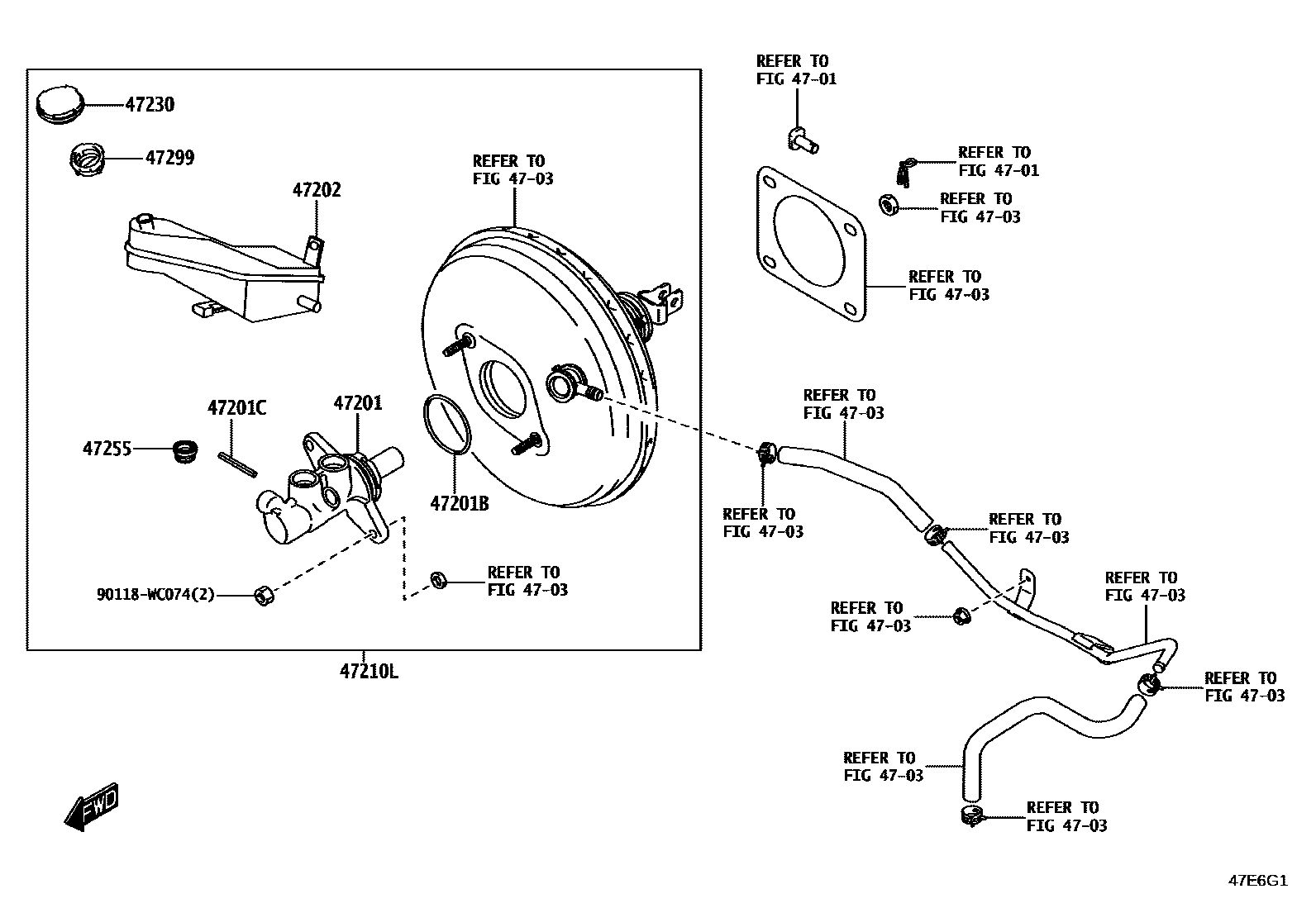

BRAKE MASTER CYLINDER
4701BRAKE PEDAL & BRACKET
4703BRAKE BOOSTER & VACUUM TUBE
47201CYLINDER SUB-ASSY, BRAKE MASTER
main47201-WC017iK10T..5F..G; K10T..5F..V; K10T..D; K12N..E..CNG; K12N..E..GAS; K12N..MTM..D; K12N..MTM..S..GAS; K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.17; POS.18; POS.19; POS.20; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.31; POS.32; POS.37; POS.38; POS.39; POS.4; POS.40; POS.5; POS.6; POS.7; POS.8; POS.9
POS.1; POS.13; POS.14; POS.15; POS.16; POS.2; POS.21; POS.22; POS.33; POS.34; POS.35; POS.36
47201BRING, O(FOR BRAKE MASTER CYLINDER)
47201CRING PIN, BRAKE MASTER CYLINDER
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
main47220-WC015iK10T..5F..G; K10T..5F..V; K10T..D; K12N..E..CNG; K12N..E..GAS; K12N..MTM..D; K12N..MTM..S..GAS; K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.17; POS.18; POS.19; POS.20; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.31; POS.32; POS.37; POS.38; POS.39; POS.4; POS.40; POS.5; POS.6; POS.7; POS.8; POS.9
POS.1; POS.13; POS.14; POS.15; POS.16; POS.2; POS.21; POS.22; POS.33; POS.34; POS.35; POS.36
47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER
POS.17; POS.18; POS.19; POS.20; POS.37; POS.38; POS.39; POS.40
POS.1; POS.13; POS.14; POS.15; POS.16; POS.2; POS.21; POS.22; POS.33; POS.34; POS.35; POS.36
main47200-WC012iK10T..5F..G; K10T..5F..V; K10T..D; K12N..E..GAS; K12N..MTM..D; K12N..MTM..S..GAS202404
POS.10; POS.11; POS.12; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.31; POS.32; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47255GROMMET, MASTER CYLINDER RESERVOIR
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
90118WC074
main90118-WC074
11 parts on this diagram · 1 diagram in section
