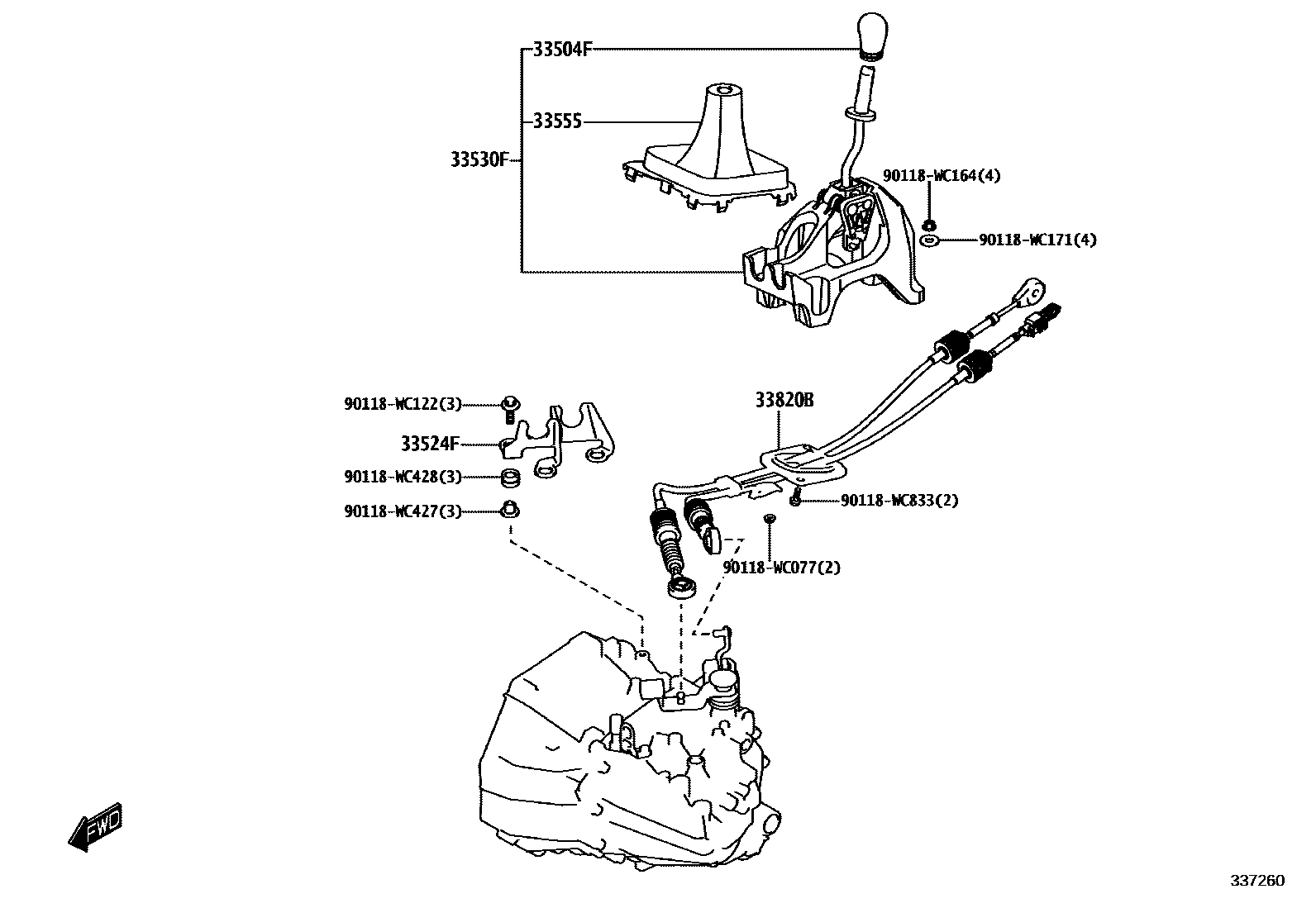

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
main33504-WC014iK10T..5F..G; K10T..5F..V; K10T..D; K12N..E..CNG; K12N..E..GAS; K12N..MTM..D; K12N..MTM..S..GAS; K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.17; POS.18; POS.19; POS.20; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.31; POS.32; POS.37; POS.38; POS.39; POS.4; POS.40; POS.5; POS.6; POS.7; POS.8; POS.9
POS.13; POS.14; POS.15; POS.16; POS.33; POS.34; POS.35; POS.36
POS.1; POS.2; POS.21; POS.22
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
POS.10; POS.11; POS.12; POS.17; POS.18; POS.19; POS.20; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.37; POS.38; POS.39; POS.40; POS.7; POS.8; POS.9
POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
main33530-WC020iK10T..5F..G; K10T..5F..V; K10T..D; K12N..MTM..D; K12N..MTM..S..GAS; K12N..S..CNG202404
POS.10; POS.17; POS.18; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.37; POS.38; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
POS.11; POS.12; POS.19; POS.20; POS.31; POS.32; POS.39; POS.40
POS.1; POS.2; POS.21; POS.22
33555BOOT, SHIFT LEVER
main58808-WC011iK10T..5F..G; K10T..5F..V; K10T..D; K12N..E..CNG; K12N..E..GAS; K12N..MTM..D; K12N..MTM..S..GAS; K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.17; POS.18; POS.19; POS.20; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.31; POS.32; POS.37; POS.38; POS.39; POS.4; POS.40; POS.5; POS.6; POS.7; POS.8; POS.9
POS.13; POS.14; POS.15; POS.16; POS.33; POS.34; POS.35; POS.36
POS.1; POS.2; POS.21; POS.22
33820BCABLE ASSY, TRANSMISSION CONTROL
POS.1; POS.2; POS.21; POS.22
POS.10; POS.11; POS.12; POS.17; POS.18; POS.19; POS.20; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.37; POS.38; POS.39; POS.40; POS.7; POS.8; POS.9
POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
90118WC077
main90118-WC077
90118WC122
main90118-WC122
90118WC164
main90118-WC164
90118WC171
main90118-WC171
90118WC427
main90118-WC427
90118WC428
main90118-WC428
90118WC833
main90118-WC833
12 parts on this diagram · 5 diagrams in section
