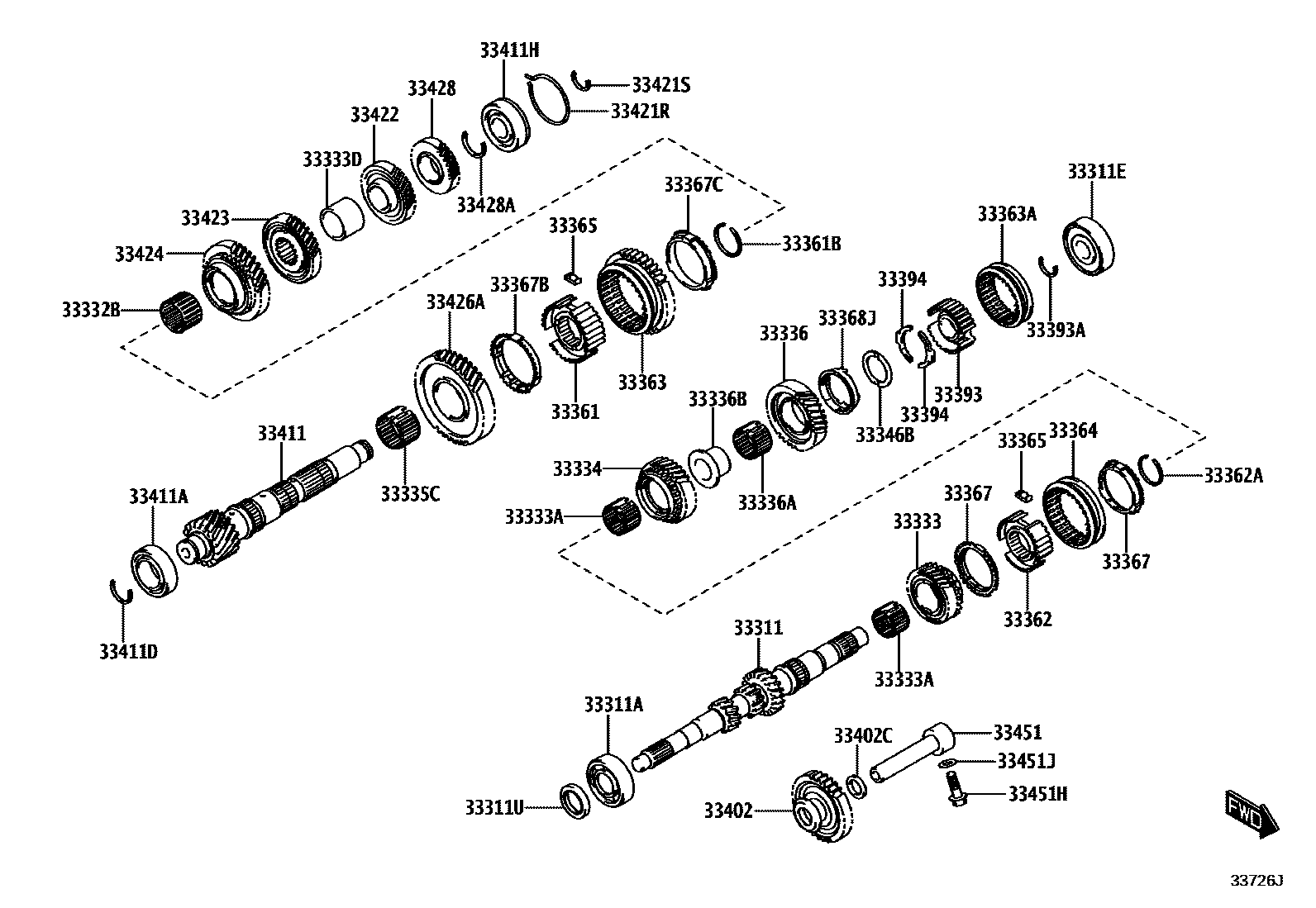

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33311SHAFT, INPUT

main33311-WC008iK10T,12N202404

33311ABEARING (FOR INPUT SHAFT FRONT)

main90118-WCA59iK10T,12N202404

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90118-WCA60iK10T,12N202404

33311USEAL, OIL (FOR INPUT SHAFT)

main90118-WCA58iK10T,12N202404

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90118-WCA68iK10T,12N202404

33333GEAR, 3RD

main33034-WC004iK10T,12N202404

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90118-WCA63iK10T,12N202404

33333DSPACER (FOR 3RD GEAR)

main33431-WC003iK10T,12N202404

33334GEAR, 4TH

main33035-WC005iK10T,12N202404

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90118-WCA66iK10T,12N202404

33336GEAR, 5TH

main33036-WC007iK10T,12N202404

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90118-WCA65iK10T,12N202404

33336BSPACER (FOR 5TH GEAR BEARING)

main90118-WCB66iK10T,12N202404

33346BWASHER, 5TH GEAR THRUST

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-WC001

main90118-WC385

main90118-WCA70

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90118-WCA70iK10T,12N202404

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-WC001

main90118-WC386

main90118-WCA71

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90118-WCA71iK10T,12N202404

33363SLEEVE, TRANSMISSION HUB, NO.1

main33363-WC002

main33395-WC003

33363ASLEEVE, TRANSMISSION HUB, NO.3

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-WC002

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-WC002iK10T,12N202404

33367RING, SYNCHRONIZER, NO.1

main33367-WC003iK10T,12N202404

33367BRING, SYNCHRONIZER (FOR 1ST GEAR)

33367CRING, SYNCHRONIZER (FOR 2ND GEAR)

33368RING, SYNCHRONIZER, NO.2

main33368-WC002iK10T202404

33368JRING, SYNCHRONIZER (FOR 5TH GEAR)

main33369-WC004iK10T,12N202404

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-WC001

main33393-WC002

main90118-WC387

main90118-WC388

main90118-WC389

main90118-WC390

main90118-WC391

main90118-WC392

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

33394KEY, SYNCHROMESH SHIFTING, NO.3

main90118-WC384

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-WC002iK10T,12N202404

33402CWASHER, PLATE (FOR REVERSE IDLER)

main90118-WCS94iK10T,12N202404

33411COUNTERSHAFT

main33321-WC011iK10T,12N202404

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90118-WCA61iK10T,12N202404

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90118-WCA62iK10T,12N202404

33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)

33421SRING, SHAFT SNAP(FOR COUNTER GEAR REAR)

33422GEAR, COUNTERSHAFT 4TH SPEED

main33422-WC005iK10T,12N202404

33423GEAR, COUNTERSHAFT 3RD SPEED

main33423-WC004iK10T,12N202404

33424GEAR, COUNTERSHAFT 2ND SPEED

main33332-WC003iK10T,12N202404

33426AGEAR, COUNTERSHAFT, 1ST SPEED

main33335-WC003iK10T,12N202404

33428GEAR, COUNTERSHAFT 5TH

main33428-WC006iK10T,12N202404

33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)

33451SHAFT, REVERSE IDLER GEAR

main33451-WC003iK10T,12N202404

33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)

main90118-WC393iK10T,12N202404

33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)

main90118-WC183iK10T,12N202404

47 parts on this diagram · 6 diagrams in section
