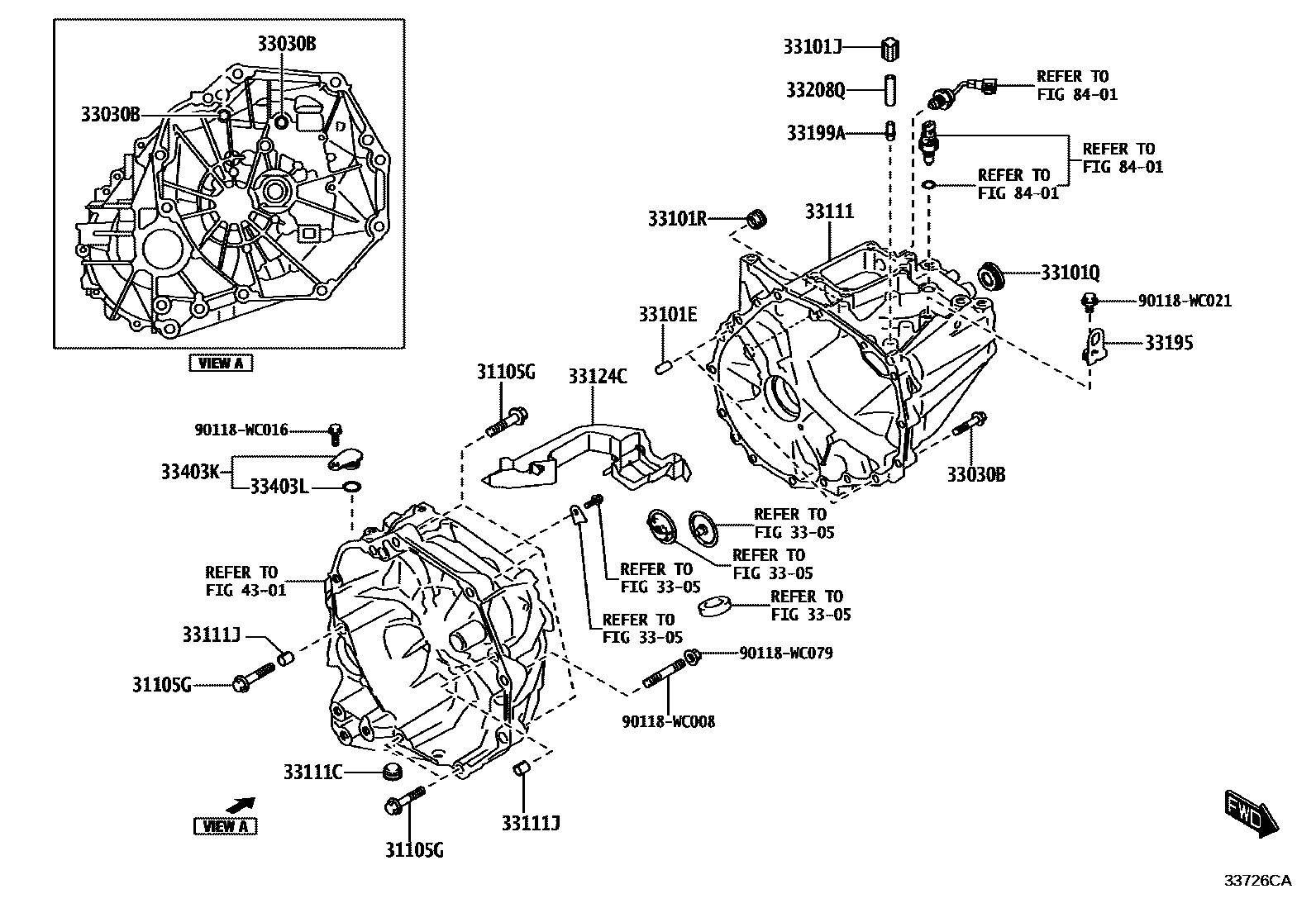

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90118-WC658×6iK12N..MTM..S..GAS202404

POS.8

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90118-WC027×16iK12N..MTM..S..GAS202404

POS.8

3305

33101EPIN, STRAIGHT(FOR TRANSMISSION CASE)

main90118-WC303×2iK12N..MTM..S..GAS202404

POS.8

33101JPLUG, BREATHER

main90118-WC424iK12N..MTM..S..GAS202404

POS.8

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90118-WC397iK12N..MTM..S..GAS202404

POS.8

33101RPLUG, NO.2(FOR TRANSMISSION CASE)

main90118-WC199iK12N..MTM..S..GAS202404

POS.8

sub90118-WCU36

33111CASE, MANUAL TRANSMISSION

main33111-WC015iK10T..5F..V202404

POS.5

main33111-WC020iK12N..AMT..S202404

POS.14

main33111-WC021iK12N..MTM..D202404

POS.8

main33111-WC022iK12N..S..CNG202404

POS.17,W(CNG)

33111CPLUG(FOR TRANSMISSION CASE)

main90118-WC200iK12N..MTM..S..GAS202404

POS.8

sub90118-WCU53

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90118-WC066×2iK12N..MTM..S..GAS202404

POS.8

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-WC004iK10T..5F..V202404

POS.5

main33124-WC005iK12N..MTM..S..GAS202404

POS.8

33195HANGER, TRANSMISSION CASE, NO.1

main33195-WC002iK12N..MTM..S..GAS202404

POS.8

main33195-WC003iK10T..5F..V202404

POS.5

main33195-WC006iK12N..AMT..S202404

POS.14

33199APROTECTOR, BREATHER

main90118-WC403iK12N..MTM..S..GAS202404

POS.8

main90118-WCG36iK12N..AMT..S202404

POS.14

33208QHOSE, BREATHER

main90118-WCA76iK10T..5F..V202404

POS.5

main90118-WCG23iK12N..MTM..S..GAS202404

POS.8

main90118-WCG37iK12N..AMT..S202404

POS.14

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-WC001iK12N..MTM..S..GAS202404

POS.8

33403LRING, O

main90118-WC214iK12N..MTM..S..GAS202404

POS.8

4301

8401

90118WC008

main90118-WC008

90118WC016

main90118-WC016

90118WC021

main90118-WC021

90118WC079

main90118-WC079

22 parts on this diagram · 4 diagrams in section
