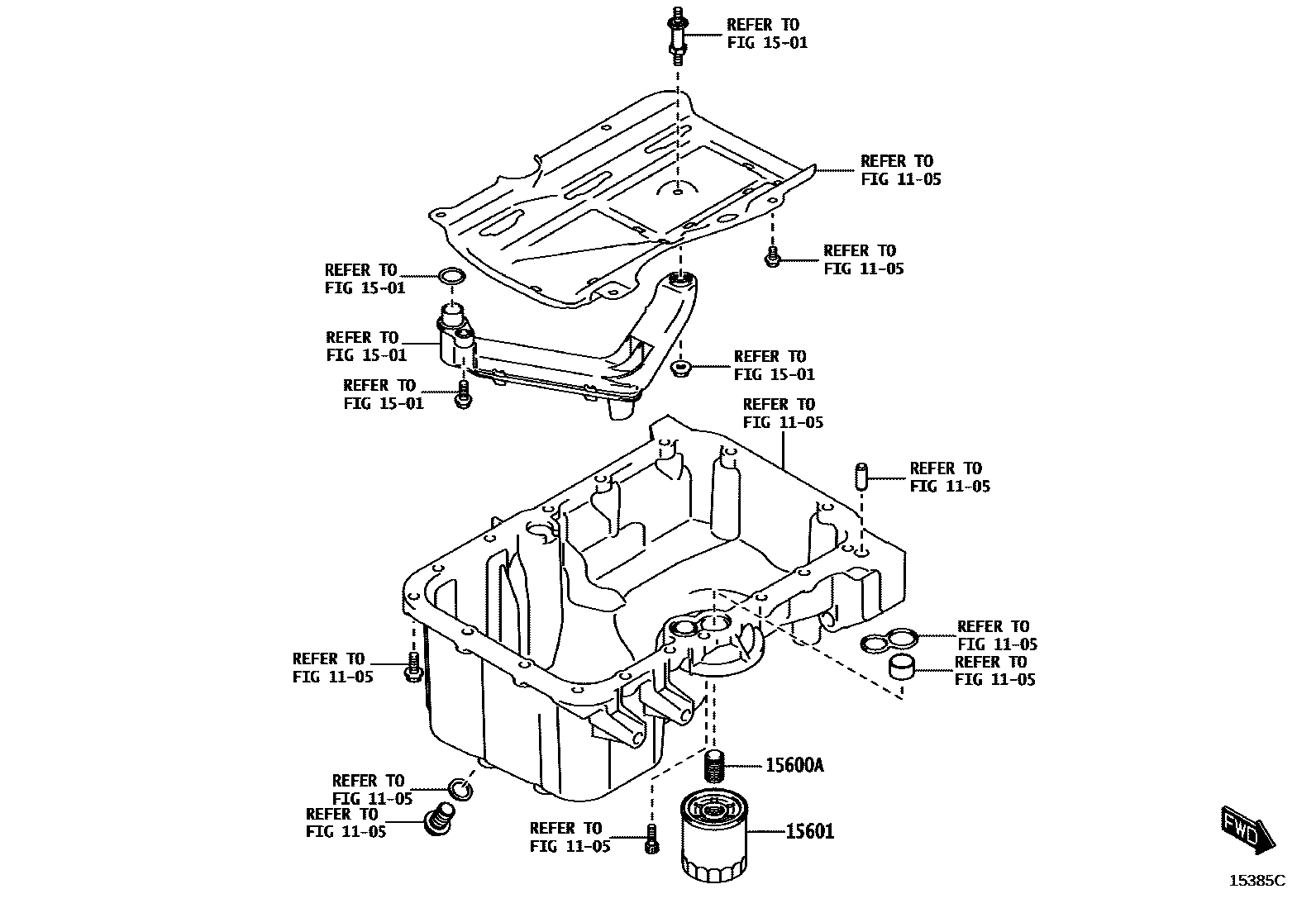

Toyota URBAN CRUISER TAISOR13E — OIL FILTER

1105CYLINDER BLOCK

→ Go to FIG 11-05

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15600AUNION(FOR OIL FILTER)

15601FILTER SUB-ASSY, OIL

90118-WC340

90118-WCT05

4 parts on this diagram · 2 diagrams in section

OIL FILTER for Toyota URBAN CRUISER TAISOR13E

This section contains 6 genuine Toyota parts for the OIL FILTER system of the Toyota URBAN CRUISER TAISOR13E. Key components include: CYLINDER BLOCK, VENTILATION HOSE, ENGINE OIL PUMP, UNION(FOR OIL FILTER), FILTER SUB-ASSY, OIL.
