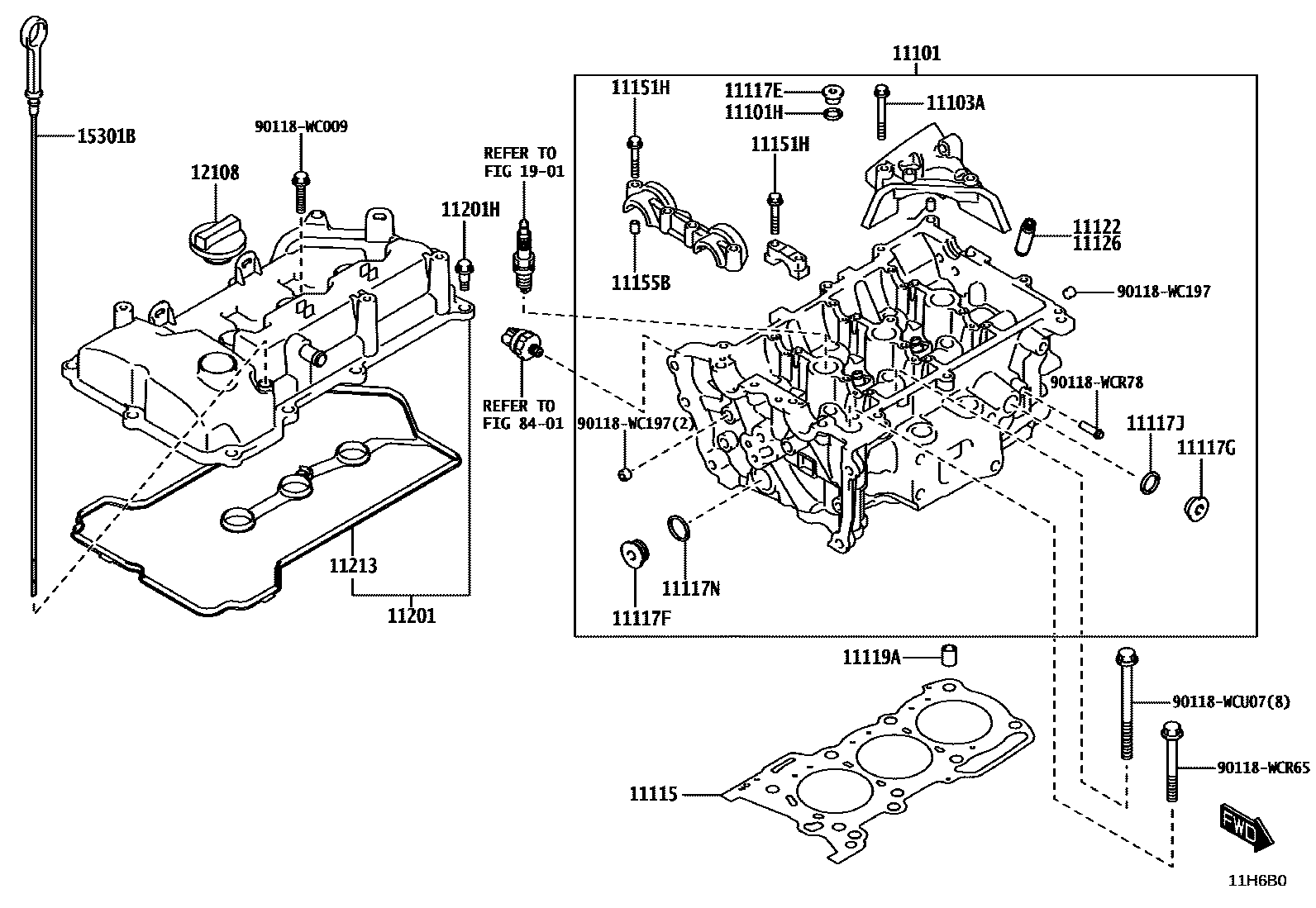

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
main11101-WC005iK12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS202404
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.7; POS.8; POS.9
POS.17; POS.18; POS.19; POS.20; POS.37; POS.38; POS.39; POS.40
main11101-WC014iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
main90118-WC294×2iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
11103ABOLT(FOR CAMSHAFT HOUSING SET)
main90118-WC290×4iK12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.20; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.7; POS.8; POS.9
main90118-WCU08×3iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
11115GASKET, CYLINDER HEAD
main11115-WC007iK12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.20; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.7; POS.8; POS.9
main11115-WC008iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90118-WC201×2iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D; K12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
POS.1; POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.40; POS.5; POS.6; POS.7; POS.8; POS.9
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
main90118-WCR73iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
main90118-WC202×4iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
main90118-WC294×3iK12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.20; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.7; POS.8; POS.9
main90118-WC640×4iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
main90118-WCR85iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
11119APIN, STRAIGHT, NO.1
main90118-WC067×2iK12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.20; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.7; POS.8; POS.9
main90118-WC193×2iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
11122BUSH, INTAKE VALVE GUIDE
main11122-WC003×6iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D; K12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
STD,POS.1; STD,POS.10; STD,POS.11; STD,POS.12; STD,POS.13; STD,POS.14; STD,POS.15; STD,POS.16; STD,POS.17; STD,POS.18; STD,POS.19; STD,POS.2; STD,POS.20; STD,POS.21; STD,POS.22; STD,POS.23; STD,POS.24; STD,POS.25; STD,POS.26; STD,POS.27; STD,POS.28; STD,POS.29; STD,POS.3; STD,POS.30; STD,POS.31; STD,POS.32; STD,POS.33; STD,POS.34; STD,POS.35; STD,POS.36; STD,POS.37; STD,POS.38; STD,POS.39; STD,POS.4; STD,POS.40; STD,POS.5; STD,POS.6; STD,POS.7; STD,POS.8; STD,POS.9
11126BUSH, EXHAUST VALVE GUIDE
main11122-WC003×6iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D; K12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
STD,POS.1; STD,POS.10; STD,POS.11; STD,POS.12; STD,POS.13; STD,POS.14; STD,POS.15; STD,POS.16; STD,POS.17; STD,POS.18; STD,POS.19; STD,POS.2; STD,POS.20; STD,POS.21; STD,POS.22; STD,POS.23; STD,POS.24; STD,POS.25; STD,POS.26; STD,POS.27; STD,POS.28; STD,POS.29; STD,POS.3; STD,POS.30; STD,POS.31; STD,POS.32; STD,POS.33; STD,POS.34; STD,POS.35; STD,POS.36; STD,POS.37; STD,POS.38; STD,POS.39; STD,POS.4; STD,POS.40; STD,POS.5; STD,POS.6; STD,POS.7; STD,POS.8; STD,POS.9
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155BPIN, RING
main90118-WC195×2iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D; K12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
POS.1; POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.40; POS.5; POS.6; POS.7; POS.8; POS.9
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-WC004iK12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.20; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.7; POS.8; POS.9
main11201-WC008iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
11201HBOLT(FOR CYLINDER HEAD COVER)
main90118-WC292×10iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D; K12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
POS.1; POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.40; POS.5; POS.6; POS.7; POS.8; POS.9
11213GASKET, CYLINDER HEAD COVER
main11213-WC004iK12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.20; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.7; POS.8; POS.9
main11213-WC008iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
12108CAP SUB-ASSY, OIL FILLER
15301BGAGE SUB-ASSY, OIL LEVEL
main15301-WC003iK12N..K12N..AMT..D; K12N..K12N..AMT..S; K12N..K12N..E..CNG; K12N..K12N..E..GAS; K12N..K12N..MTM..D; K12N..K12N..MTM..S..GAS; K12N..K12N..S..CNG202404
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.20; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.7; POS.8; POS.9
main15301-WC005iK10T..K10T..5F..G; K10T..K10T..5F..V; K10T..K10T..6FC..G; K10T..K10T..6FC..V; K10T..K10T..D202404
POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6
1901IGNITION COIL & SPARK PLUG / GLOW PLUG
8401SWITCH & RELAY & COMPUTER
90118WC009
main90118-WC009
90118WC197
main90118-WC197
90118WCR65
main90118-WCR65
90118WCR78
main90118-WCR78
90118WCU07
main90118-WCU07
26 parts on this diagram · 5 diagrams in section
