WINDSHIELD WASHER

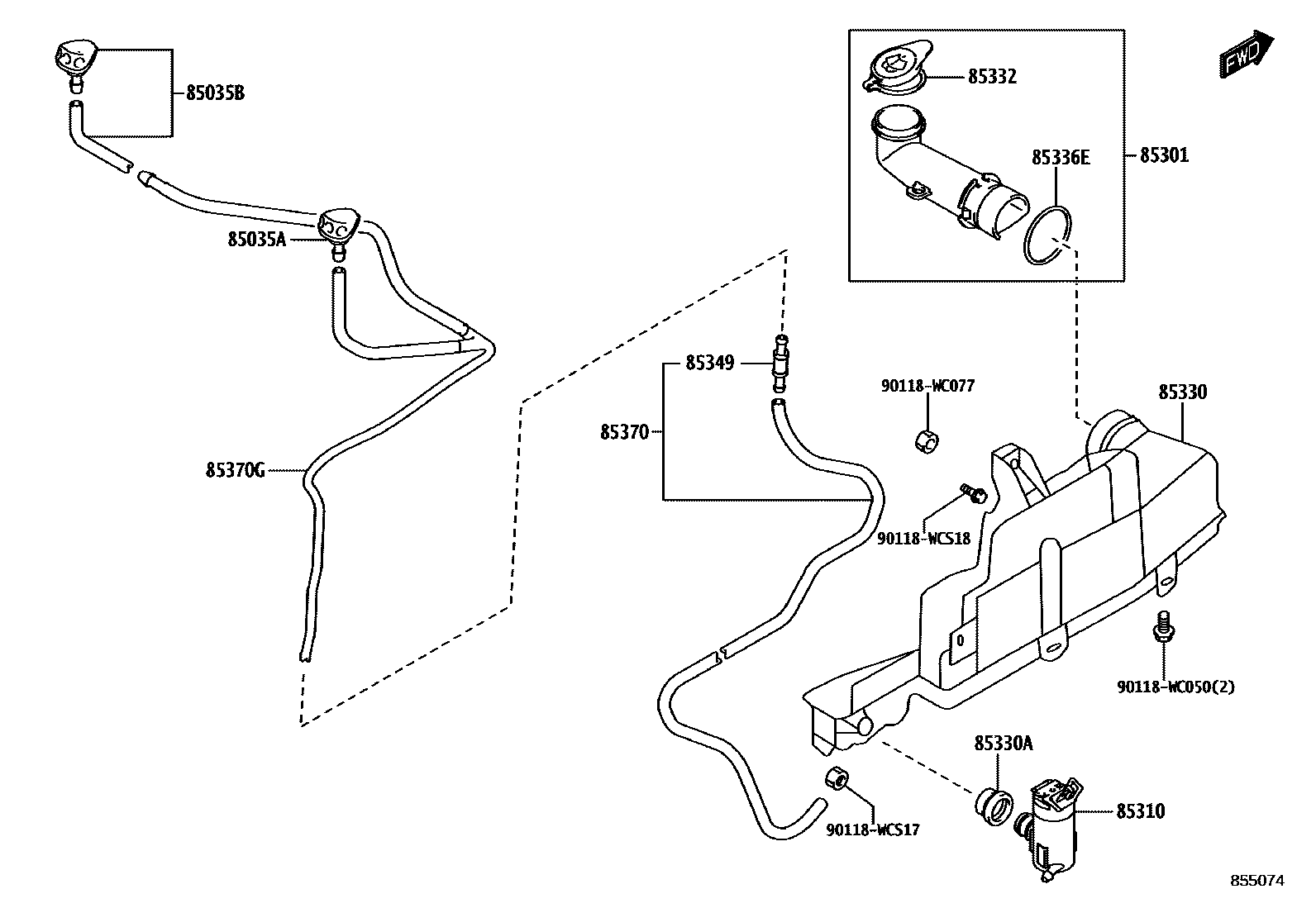

Parts diagram

85035ANOZZLE, FR WASHER, RH

main85381-WC014i202301

POS.39

85035BNOZZLE, FRONT WASHER, LH

main85381-WC015i202301-202310

POS.34

85301INLET SUB-ASSY, WASHER

main85301-WC003i202301-202310

POS.34

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-WC019i202301

POS.39

85330JAR ASSY, WINDSHIELD WASHER

main85330-WC020i202301

POS.16

main85330-WC021i202301

POS.39

85330ABUSH, WINDSHIELD WASHER JAR

main85336-WC004i202301-202310

POS.34

85332CAP, WINDSHIELD WASHER JAR

main85316-WC006i202301

POS.39

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main90118-WCS14i202301-202310

POS.34

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-WC011i202301-202310

POS.34

85370HOSE ASSY, WINDSHIELD WASHER

main90118-WCS15i202301-202310

POS.34

85370GHOSE ASSY, WINDSHIELD WASHER, NO.2

main90118-WCS19i202301-202310

POS.34

90118WC050

main90118-WC050

90118WC077

main90118-WC077

90118WCS17

main90118-WCS17

90118WCS18

main90118-WCS18

15 parts on this diagram · 2 diagrams in section
