REAR WIPER

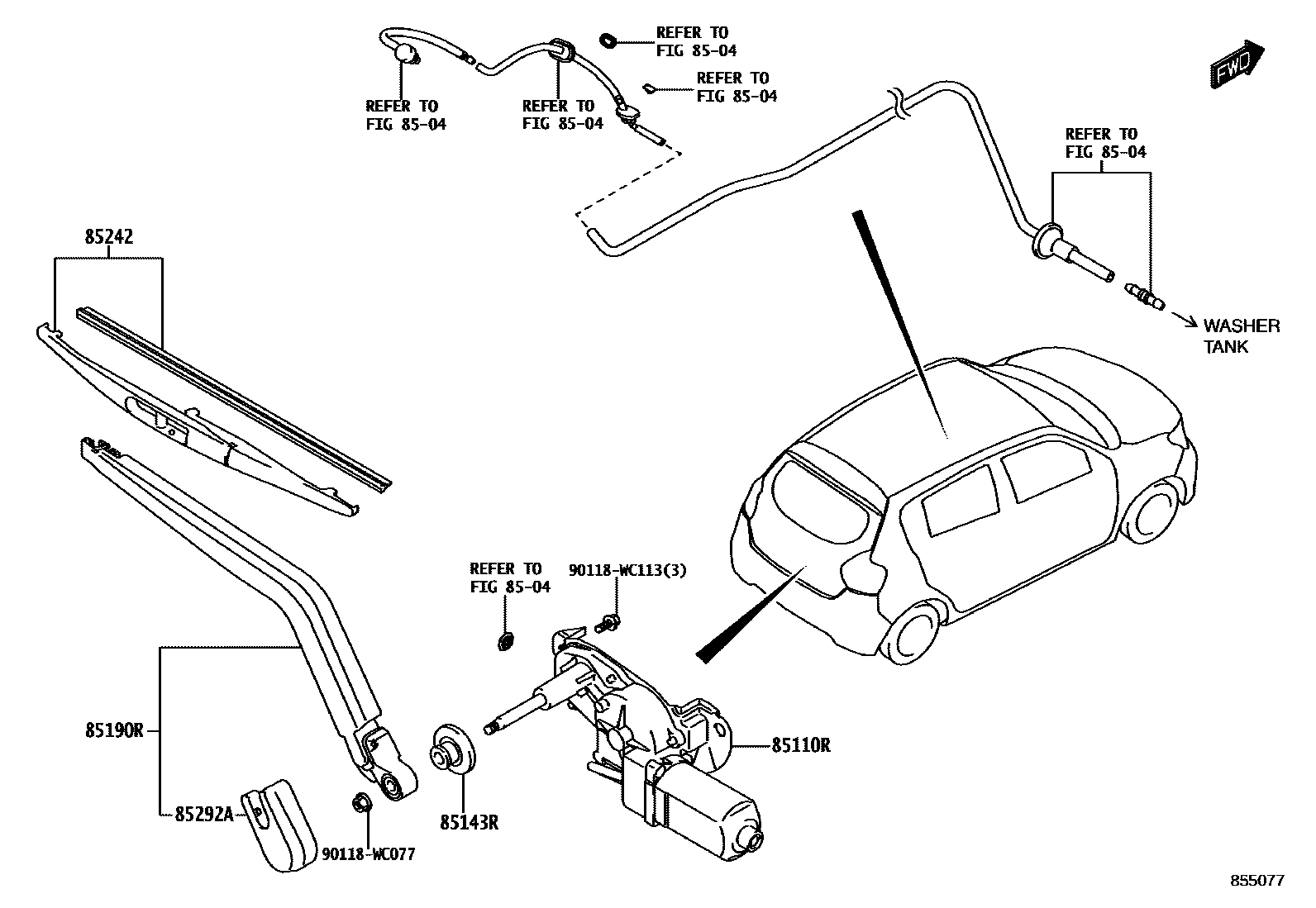

Parts diagram

8504

85110RMOTOR ASSY, REAR WIPER

main85130-WC007i202301-202310

POS.34

85143RGROMMET, REAR WIPER MOTOR

main85143-WC007i202301-202310

POS.34

85190RARM ASSY, REAR WIPER

main85241-WC005i202301-202310

POS.34

85242BLADE, RR WIPER

main85242-WC004i202301-202310

POS.34

85292ACAP, REAR WIPER ARM HEAD

main85292-WC001i202301-202310

POS.34

90118WC077

main90118-WC077

90118WC113

main90118-WC113

8 parts on this diagram · 1 diagram in section
