Home
›
GR
›
13B310
›

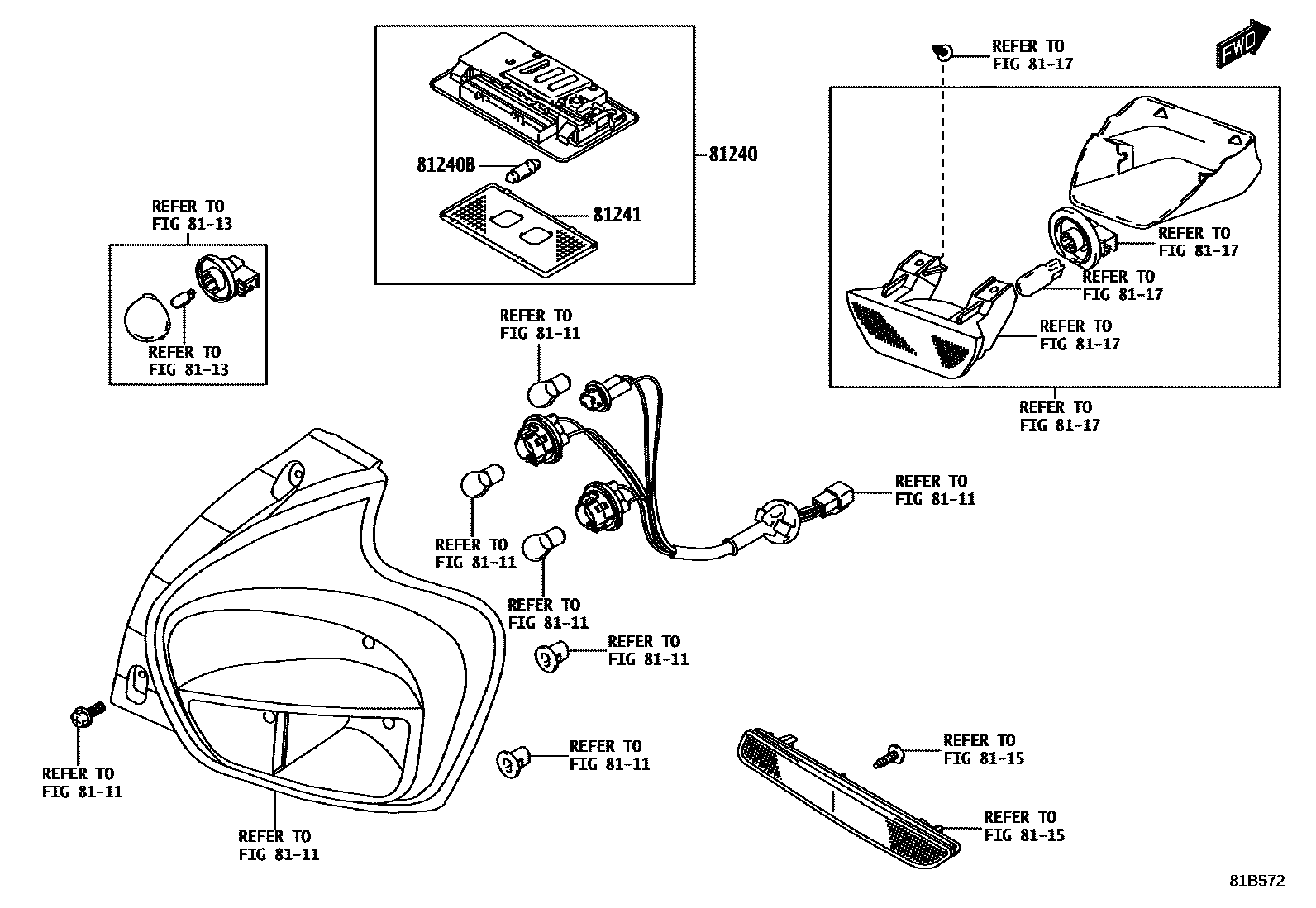

INTERIOR LAMP
INTERIOR LAMP
8111
8113
8115
8117
81240
LAMP ASSY, ROOM, NO.1
main
81230-WC016
i
K10C..SUD
202301-202310
POS.34
81240B
BULB, ROOM LAMP, NO.1
main
90118-WC270
i
K10C..SUD
202301-202310
12V 10W,POS.34
81241
LENS, ROOM LAMP, NO.1
main
81241-WC002
i
K10C..SUD
202301-202310
POS.34
7 parts on this diagram · 1 diagram in section
