Toyota VITZ 13B — CENTER STOP LAMP

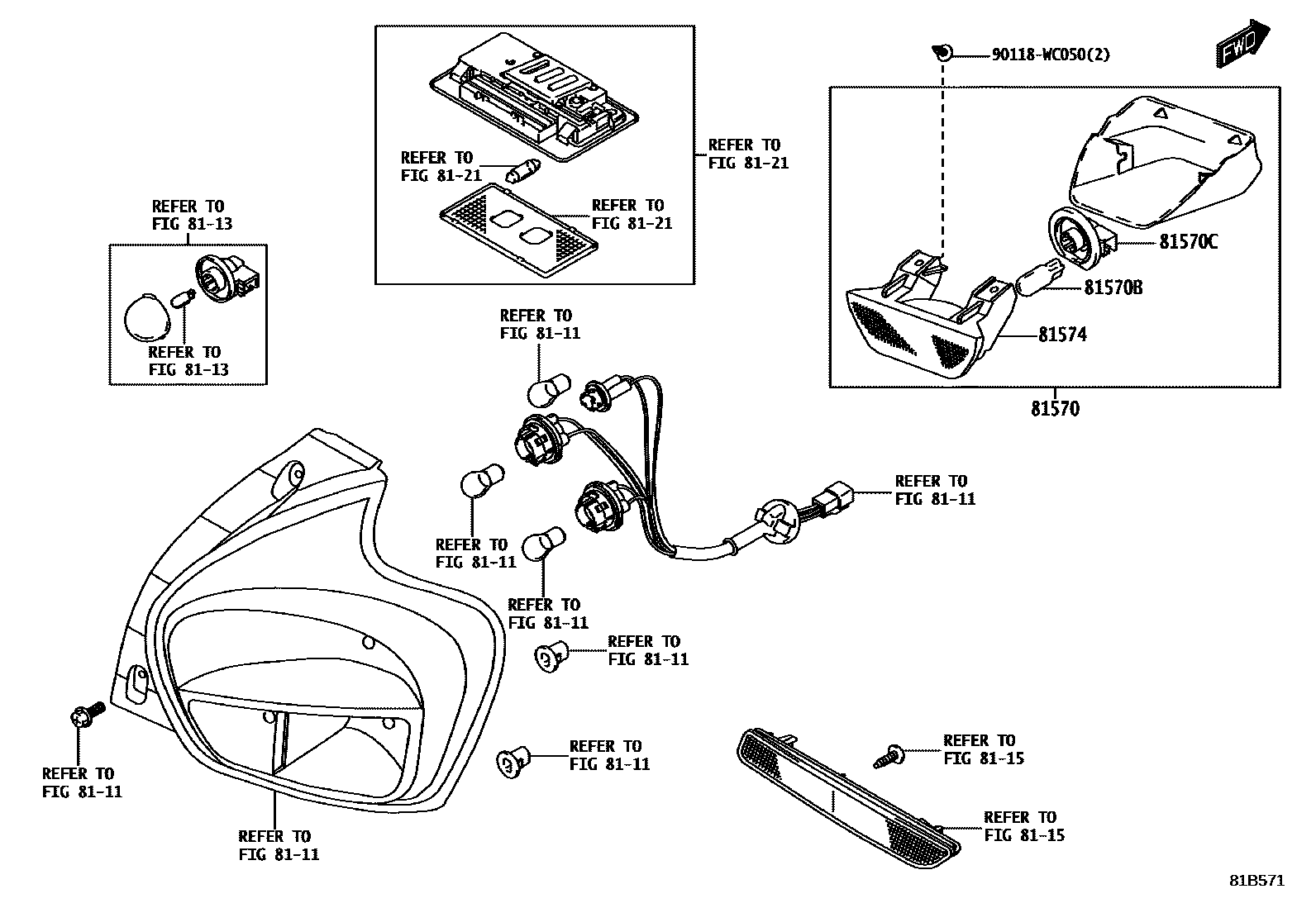

Parts diagram
8111REAR COMBINATION LAMP
→ Go to FIG 81-11
8113REAR LICENSE PLATE LAMP
→ Go to FIG 81-13
8115REFLEX REFLECTOR
→ Go to FIG 81-15
8121INTERIOR LAMP
→ Go to FIG 81-21
81570LAMP ASSY, CENTER STOP
81570-WC008
90118-WC269
90118-WCS10
81570BBULB (FOR CENTER STOP LAMP)
81570CSOCKET, CENTER STOP LAMP
81574COVER, CENTER STOP LAMP
81573-WC001
90118WC050
90118-WC050

9 parts on this diagram · 1 diagram in section

CENTER STOP LAMP for Toyota VITZ 13B

This section contains 9 genuine Toyota parts for the CENTER STOP LAMP system of the Toyota VITZ 13B. Key components include: REAR COMBINATION LAMP, REAR LICENSE PLATE LAMP, REFLEX REFLECTOR, INTERIOR LAMP, LAMP ASSY, CENTER STOP.
