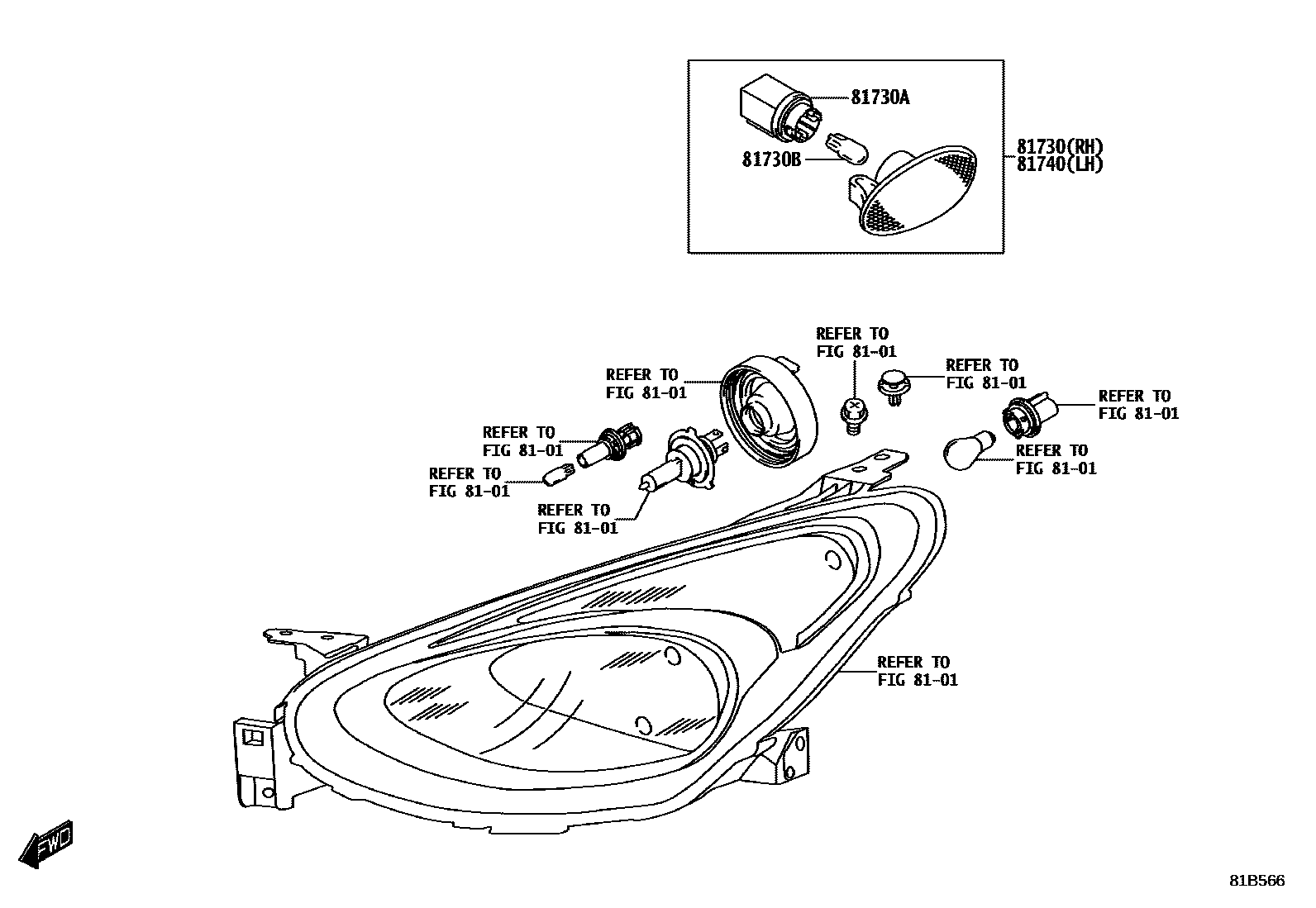

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

8101HEADLAMP

→ Go to FIG 81-01

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-WC007

main90118-WC272

main90118-WC793

81730ASOCKET PLUG(FOR SIDE TURN SIGNAL LAMP)

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-WC007

5 parts on this diagram · 1 diagram in section
