Toyota VITZ 13B — FRONT DOOR WINDOW REGULATOR & HINGE

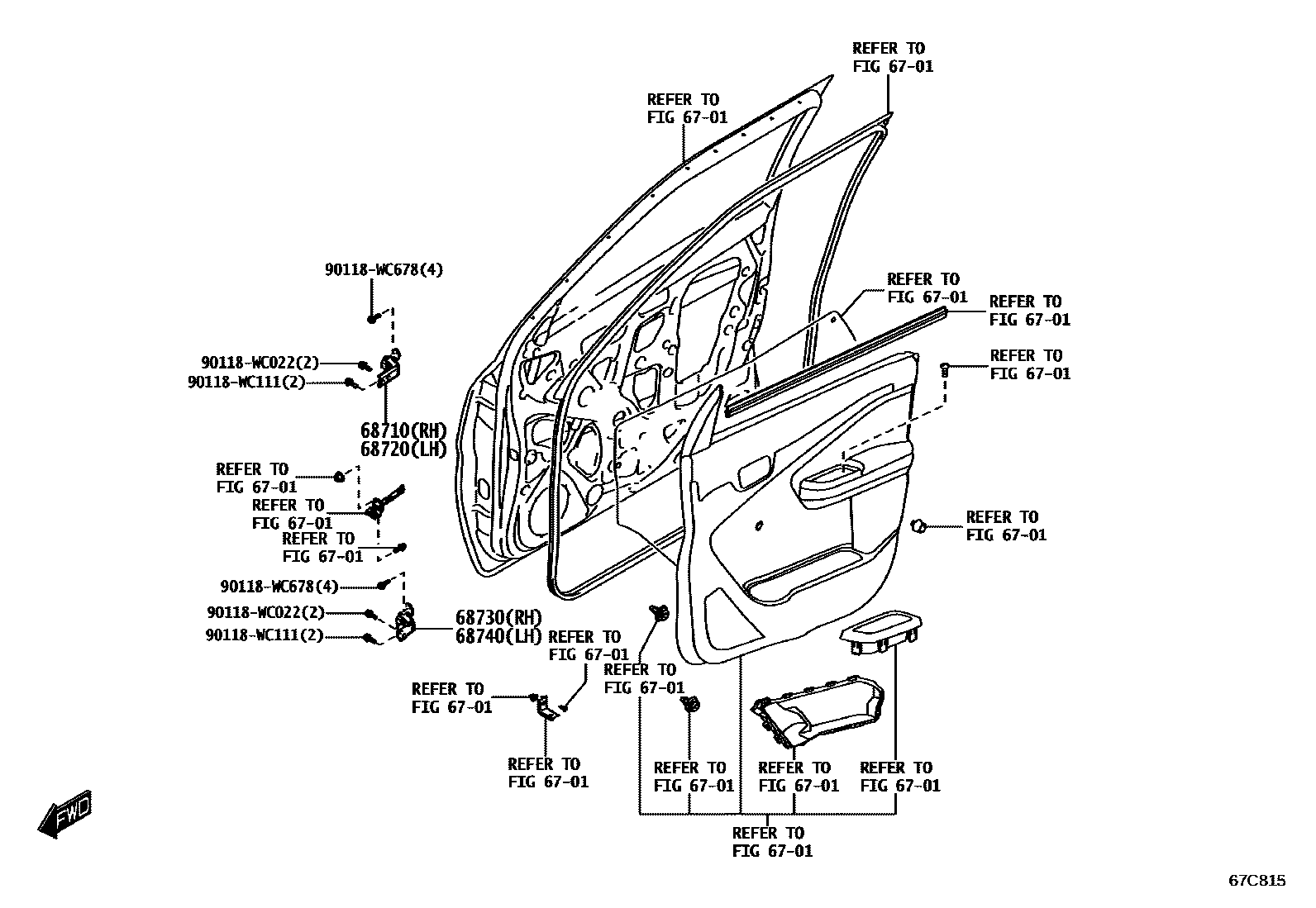

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

68720HINGE ASSY, FRONT DOOR, UPPER LH

68730HINGE ASSY, FRONT DOOR, LOWER RH

68740HINGE ASSY, FRONT DOOR, LOWER LH

90118WC022

90118WC111

90118WC678

8 parts on this diagram · 3 diagrams in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota VITZ 13B

This section contains 15 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota VITZ 13B. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
