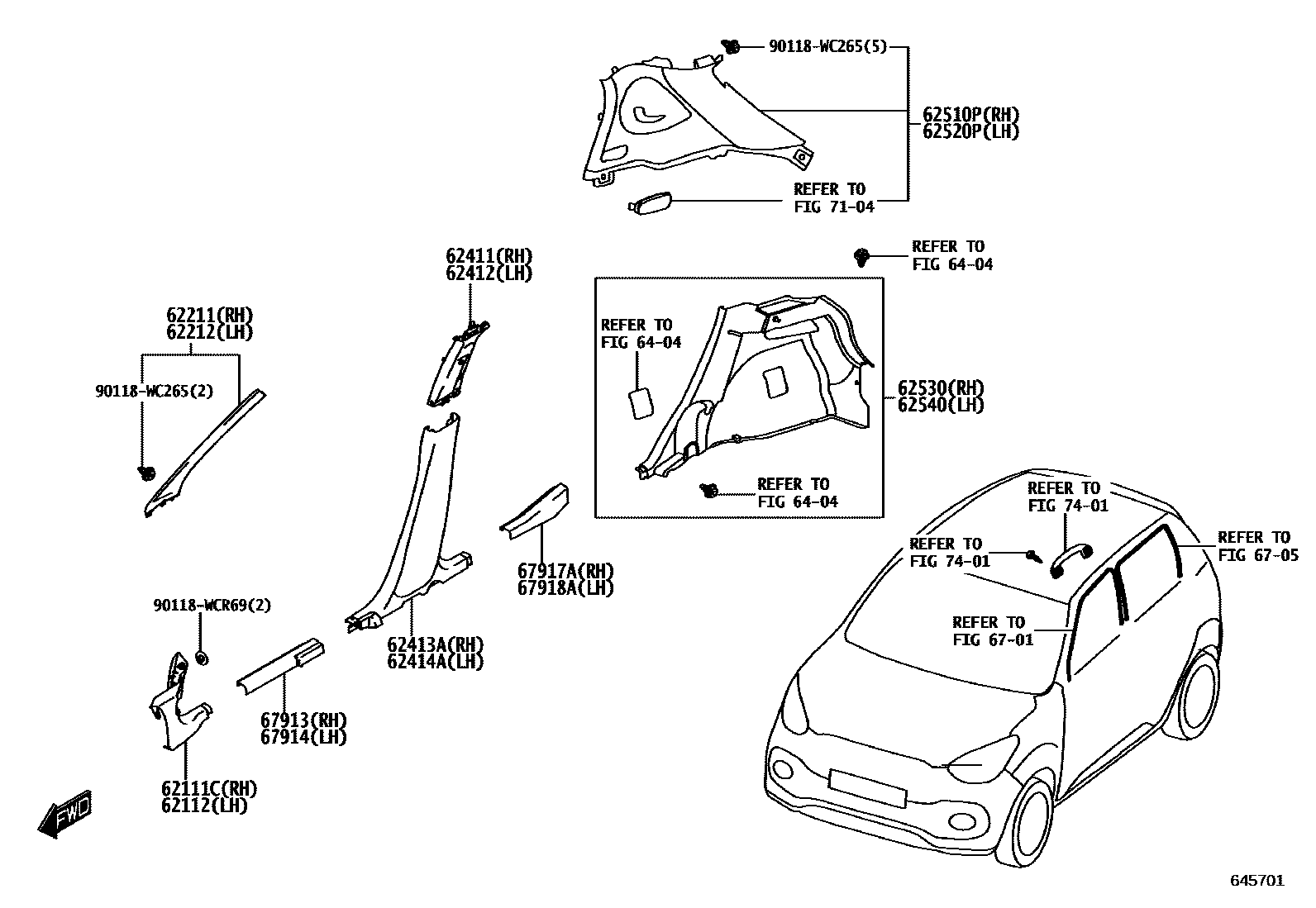

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111CBOARD, COWL SIDE TRIM, RH

62112BOARD, COWL SIDE TRIM, LH

main62112-WC008

62211GARNISH, FRONT PILLAR, RH

main62211-WC008

main62211-WC010

62212GARNISH, FRONT PILLAR, LH

main62212-WC008

main62212-WC010

62411GARNISH, CENTER PILLAR, RH

main62411-WC013

main62411-WC014

62412GARNISH, CENTER PILLAR, LH

main62412-WC013

main62412-WC014

62413AGARNISH, CENTER PILLAR, LOWER RH

62414AGARNISH, CENTER PILLAR, LOWER LH

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

62530PANEL ASSY, QUARTER TRIM, LOWER RH

main62530-WC001

main62530-WC004

62540PANEL ASSY, QUARTER TRIM, LOWER LH

main62540-WC001

main62540-WC004

6404

6701

6705

67913PLATE, FRONT DOOR SCUFF, RH

main67913-WC008

67914PLATE, FRONT DOOR SCUFF, LH

main67914-WC008

67917APLATE, REAR DOOR SCUFF, RH

67918APLATE, REAR DOOR SCUFF, LH

7104

7401

90118WC265

main90118-WC265

90118WCR69

main90118-WCR69

23 parts on this diagram · 2 diagrams in section
