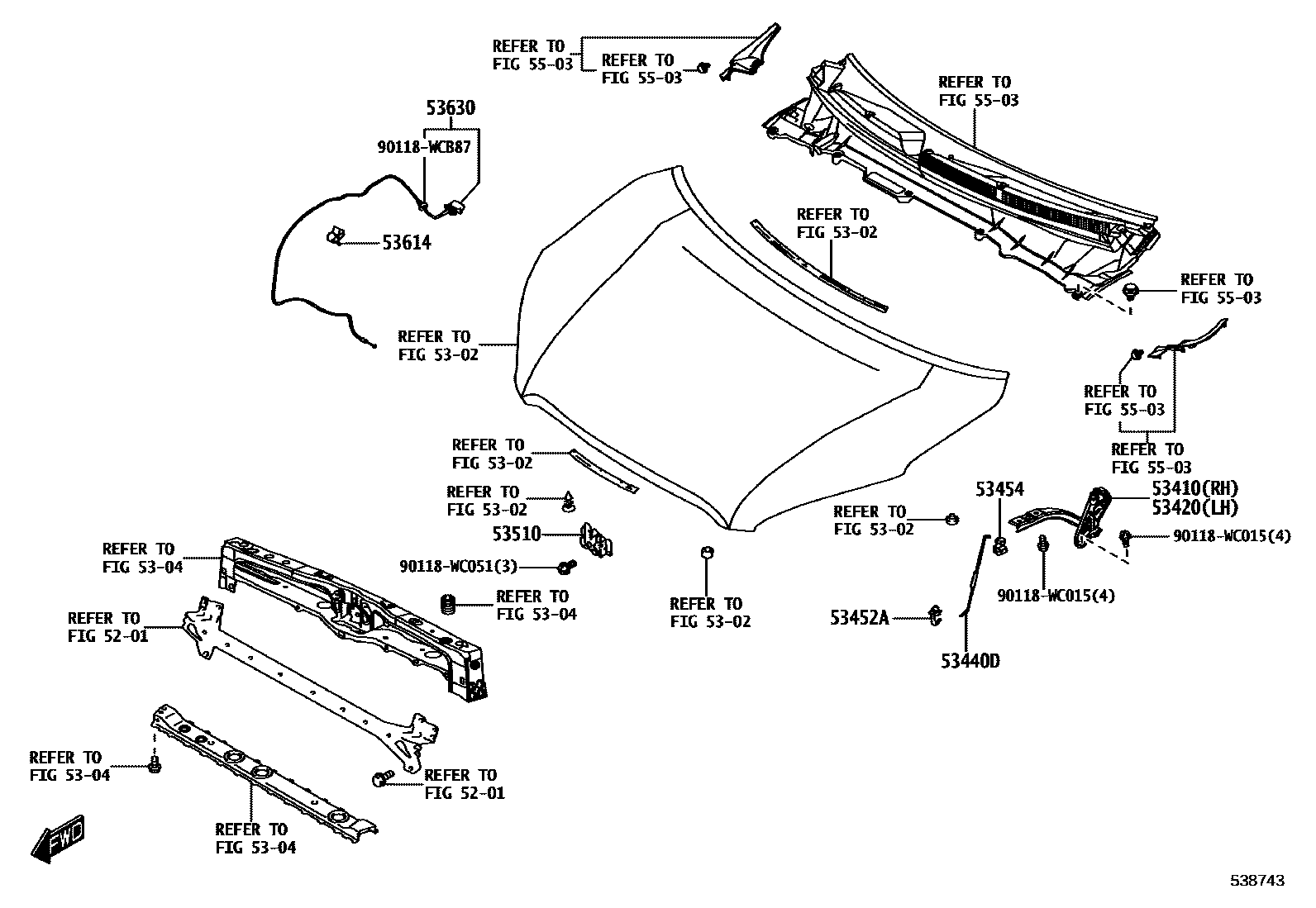

HOOD LOCK & HINGE

0001 1 0002 1

5201

5302

5304

53410HINGE ASSY, HOOD, RH

main53410-WC008iK10C..AMT..AFR202301

POS.63

53420HINGE ASSY, HOOD, LH

main53420-WC008iK10C..AMT..AFR202301

POS.63

53440DSUPPORT ASSY, HOOD

main53440-WC008iK10C..AMT..AFR202301

POS.63

53452AHOLDER, HOOD STAY

main53452-WC005iK10C..AMT..AFR202301

POS.63

53454CLIP, HOOD SUPPORT ROD

main53454-WC001iK10C..AMT..AFR202301

POS.63

53510LOCK ASSY, HOOD

main53510-WC021iK10C..I..SA202301

POS.7

main53510-WC022iK10C..AMT..AFR202301

POS.63

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-WC001×5iK10C..AMT..AFR202301

POS.63

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WC010iK10C..I..SA202301

POS.7

main53630-WC011iK10C..AMT..AFR202301

POS.63

5503

90118WC015

main90118-WC015

90118WC051

main90118-WC051

90118WCB87

main90118-WCB87

15 parts on this diagram · 2 diagrams in section
