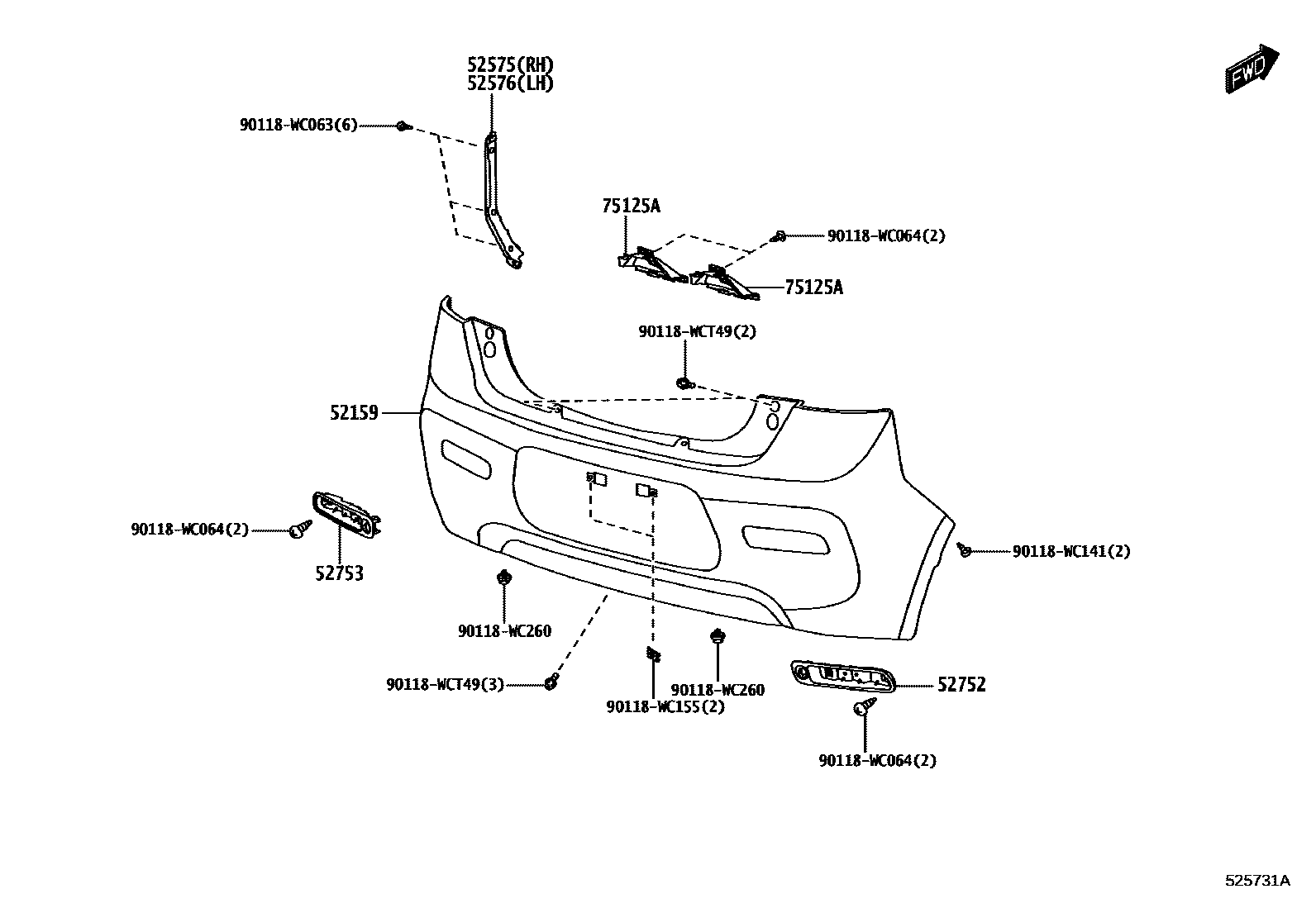

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-WC016iK10C..SUD202301-202310

POS.34

main52159-WC020iK10C..5F..S..SA202409

POS.65

52575RETAINER, REAR BUMPER SIDE, RH

main52575-WC009iK10C..SUD202301-202310

POS.34

52576RETAINER, REAR BUMPER SIDE, LH

main52576-WC010iK10C..SUD202301-202310

POS.34

52752MOULDING, REAR BUMPER SIDE, RH

main52752-WC001iK10C..SUD202301-202310

POS.34

52753MOULDING, REAR BUMPER SIDE, LH

main52753-WC001iK10C..SUD202301-202310

POS.34

75125ABRACKET, LICENSE PLATE LAMP

main75125-WC001×2iK10C..SUD202301-202310

POS.34

main75125-WC002iK10C..5F..S..SA202409

POS.65

90118WC063

main90118-WC063

90118WC064

main90118-WC064

90118WC141

main90118-WC141

90118WC155

main90118-WC155

90118WC260

main90118-WC260

90118WCT49

main90118-WCT49

12 parts on this diagram · 1 diagram in section
