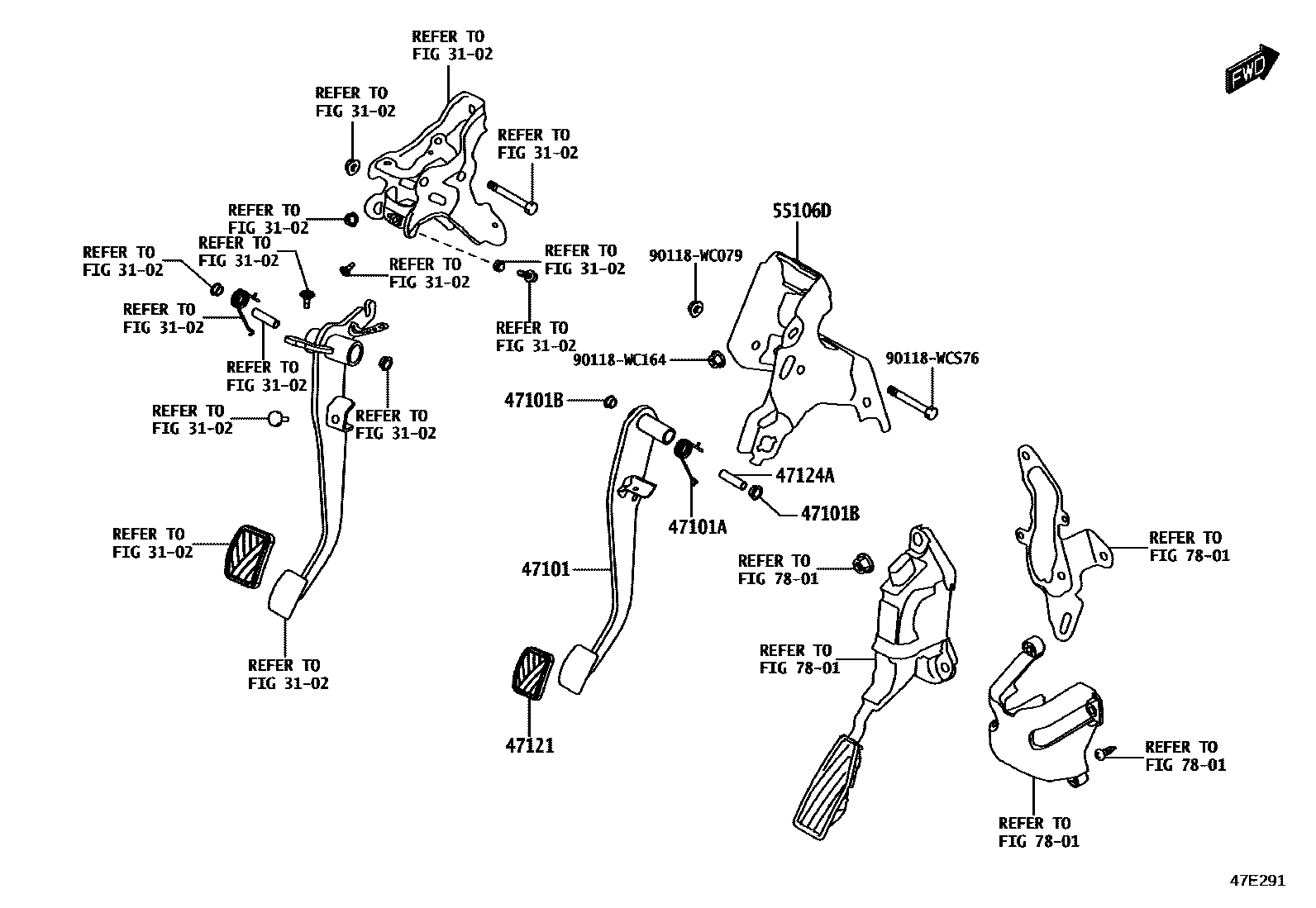

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

3102

47101PEDAL SUB-ASSY, BRAKE

main47101-WC018iK10C..5F..S..AFR202301

POS.40

main47101-WC019iK10C..I..SA202301

POS.49

main47101-WC020iK10C..AMT..AFR202301

POS.43

main47101-WC021iK10C..AMT..SA202301

POS.61

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90118-WCS75iK10C..I..AFR202301

POS.40

47101BBUSH(FOR BRAKE PEDAL)

main90118-WC219×2iK10C..I..AFR202301

POS.40

47121PAD, BRAKE PEDAL

main47121-WC001iK10C..SUD202301-202310

POS.34

main47121-WC002iK10C..5F..S..AFR202301

POS.40

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-WC001iK10C..SUD202301-202310

POS.34

55106DBRACKET SUB-ASSY, PEDAL

main55106-WC010iK10C..SUD202301-202310

POS.34

main55106-WC011iK10C..I..SA202301

POS.10

7801

90118WC079

main90118-WC079

90118WC164

main90118-WC164

90118WCS76

main90118-WCS76

11 parts on this diagram · 6 diagrams in section
