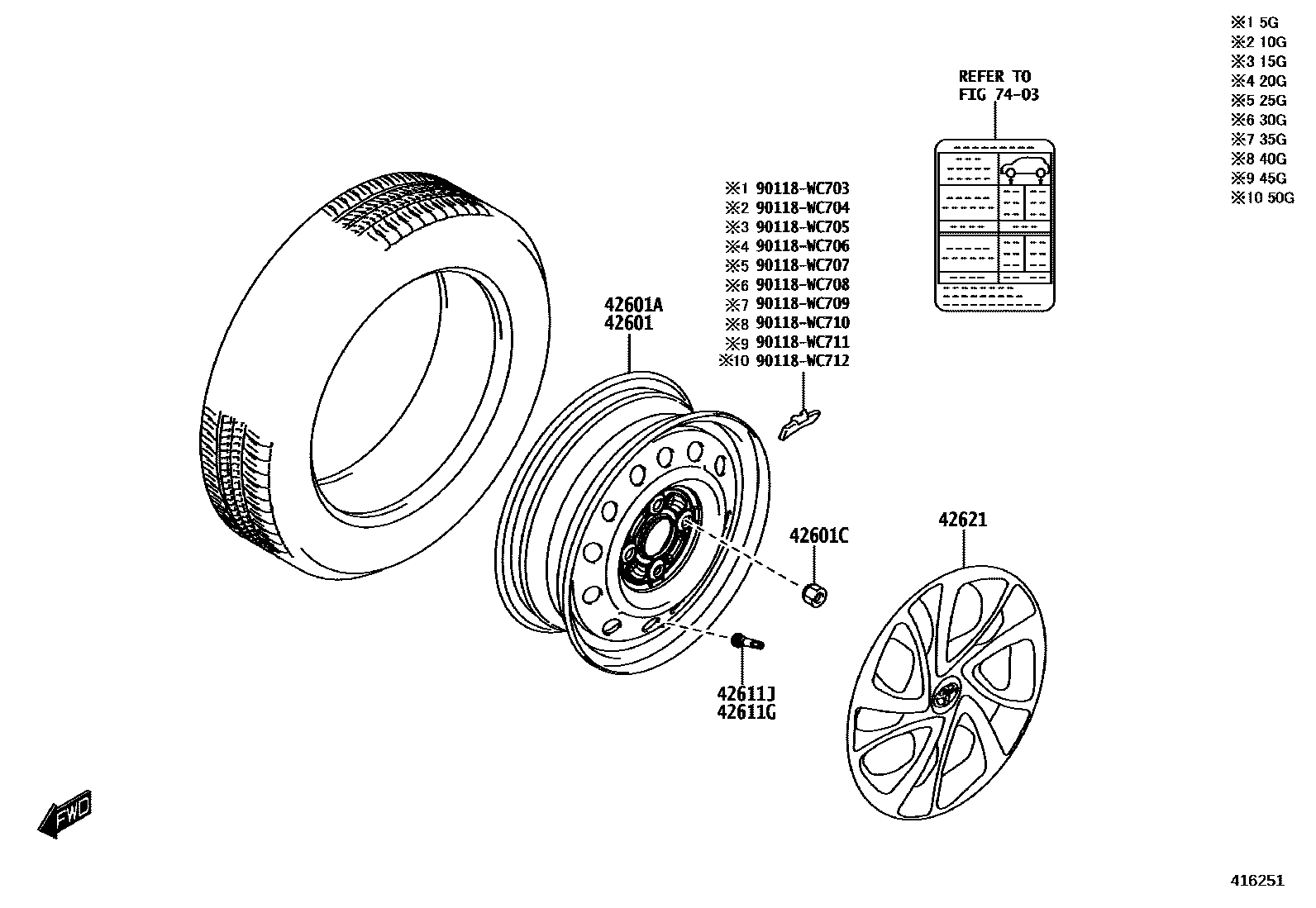

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-WC028×4iK10C..5F..S..SA202301

14X5J,POS.20

main42611-WC029×4iK10C..5F..S..AFR202301

15X5J,POS.48

42601AWHEEL, DISC (FOR SPARE)

main42611-WC028iK10C..SUD202301-202310

14X5J,POS.34

42601CNUT, HUB (FOR AXLE)

main90118-WC523×16iK10C..AMT..SA202301

POS.36,FOR ALUMINUM WHEEL

main90118-WC872×16iK10C..5F..S..SA202301

POS.44,FOR STEEL WHEEL

42611GVALVE (FOR TUBELESS TIRE)

main90118-WC493×4iK10C..SUD202301-202310

POS.34

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90118-WC493iK10C..SUD202301-202310

POS.34

42621CAP, WHEEL

main42602-WC007×4iK10C..5F..S..SA202301

POS.33

7403

90118WC703

main90118-WC703

90118WC704

main90118-WC704

90118WC705

main90118-WC705

90118WC706

main90118-WC706

90118WC707

main90118-WC707

90118WC708

main90118-WC708

90118WC709

main90118-WC709

90118WC710

main90118-WC710

90118WC711

main90118-WC711

90118WC712

main90118-WC712

17 parts on this diagram · 2 diagrams in section
