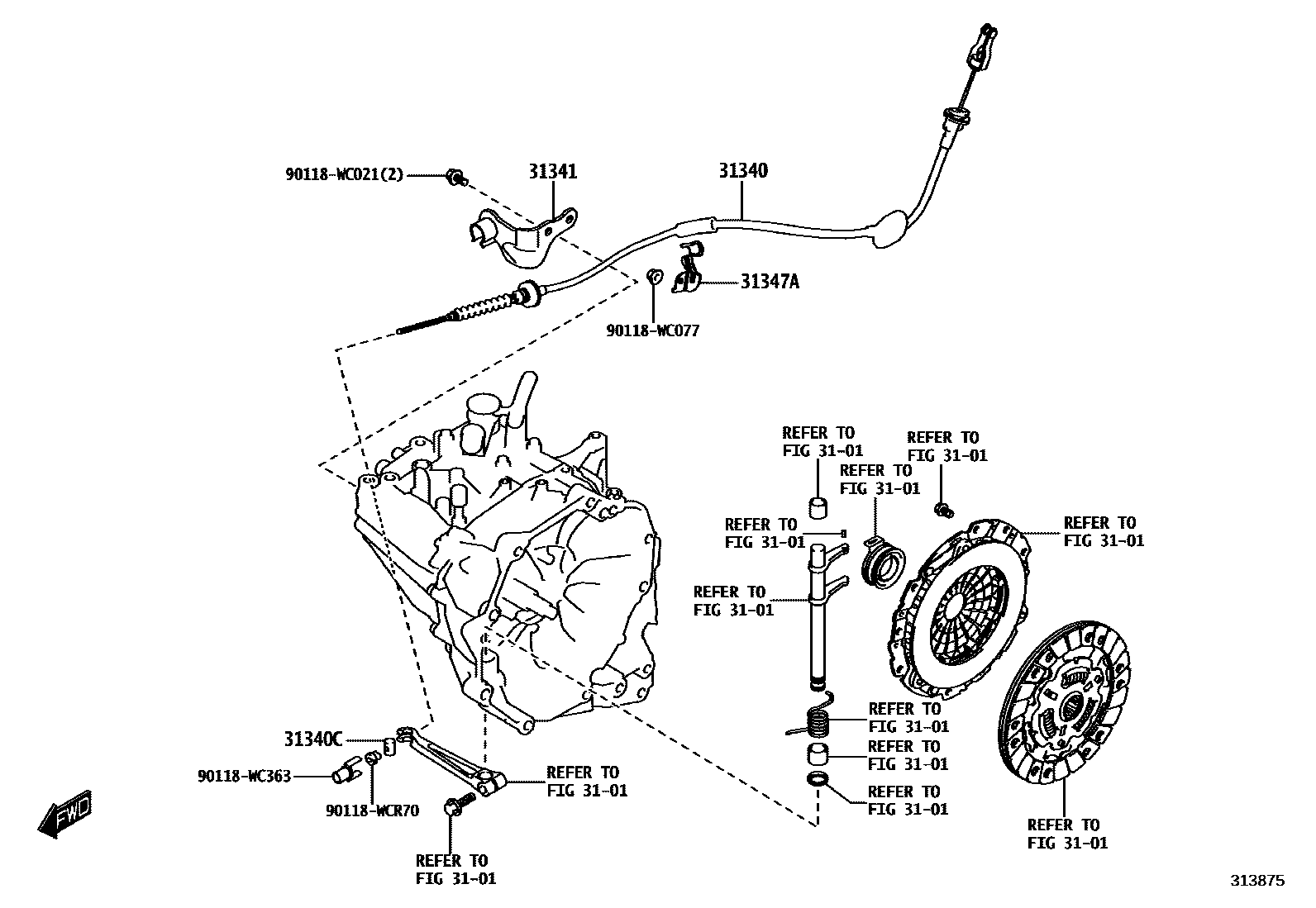

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

3101

31340CABLE ASSY, CLUTCH RELEASE

main31340-WC005iK10C..5F..S..AFR202301

POS.54

main31340-WC006iK10C..5F..S..SA202301

POS.4

31340CPIN, WIRE PIVOT(FOR CLUTCH RELEASE CABLE)

main90118-WCR92iK10C..5F..S..SA202301

POS.51

31341BRACKET, CLUTCH CABLE

main31304-WC002iK10C..5F..S..SA202301

POS.51

31347ACLAMP, CLUTCH CABLE, NO.1

main90118-WC362iK10C..5F..S..SA202301

POS.4

main90118-WCR93iK10C..5F..S..AFR202301

POS.54

90118WC021

main90118-WC021

90118WC077

main90118-WC077

90118WC363

main90118-WC363

90118WCR70

main90118-WCR70

9 parts on this diagram · 4 diagrams in section
