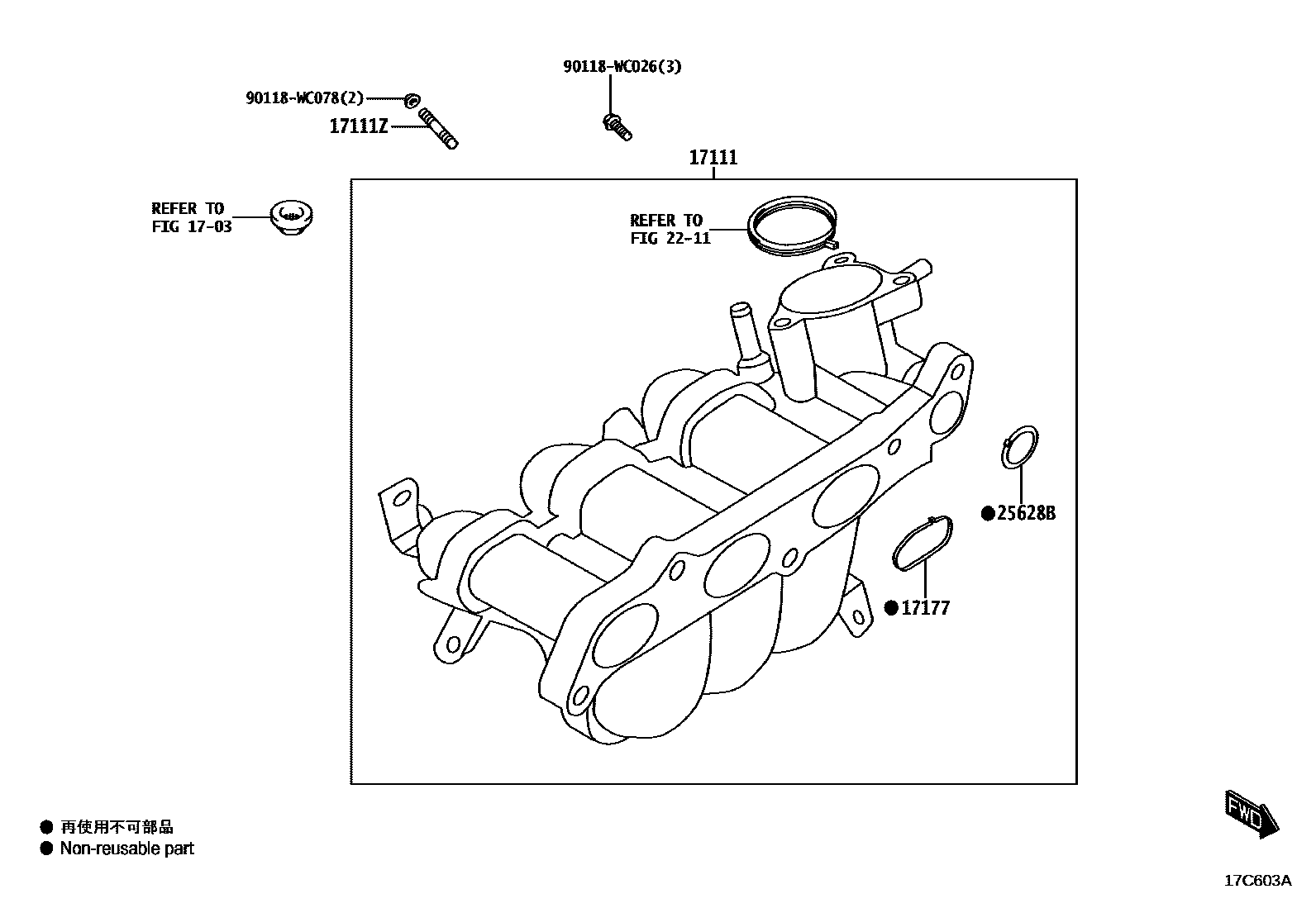

MANIFOLD

1703AIR CLEANER

→ Go to FIG 17-03

17111MANIFOLD, INTAKE

main17120-WC010iK10C..K10C..SUD202301-202310

POS.34

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90118-WC006×2iK10C..K10C..SUD202301-202310

POS.34

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-WC006×3iK10C..K10C..SUD202301-202310

POS.34

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25628BGASKET, EGR INLET

main25628-WC005iK10C..K10C..SUD202301-202310

POS.34

90118WC026

main90118-WC026

90118WC078

main90118-WC078

8 parts on this diagram · 1 diagram in section
