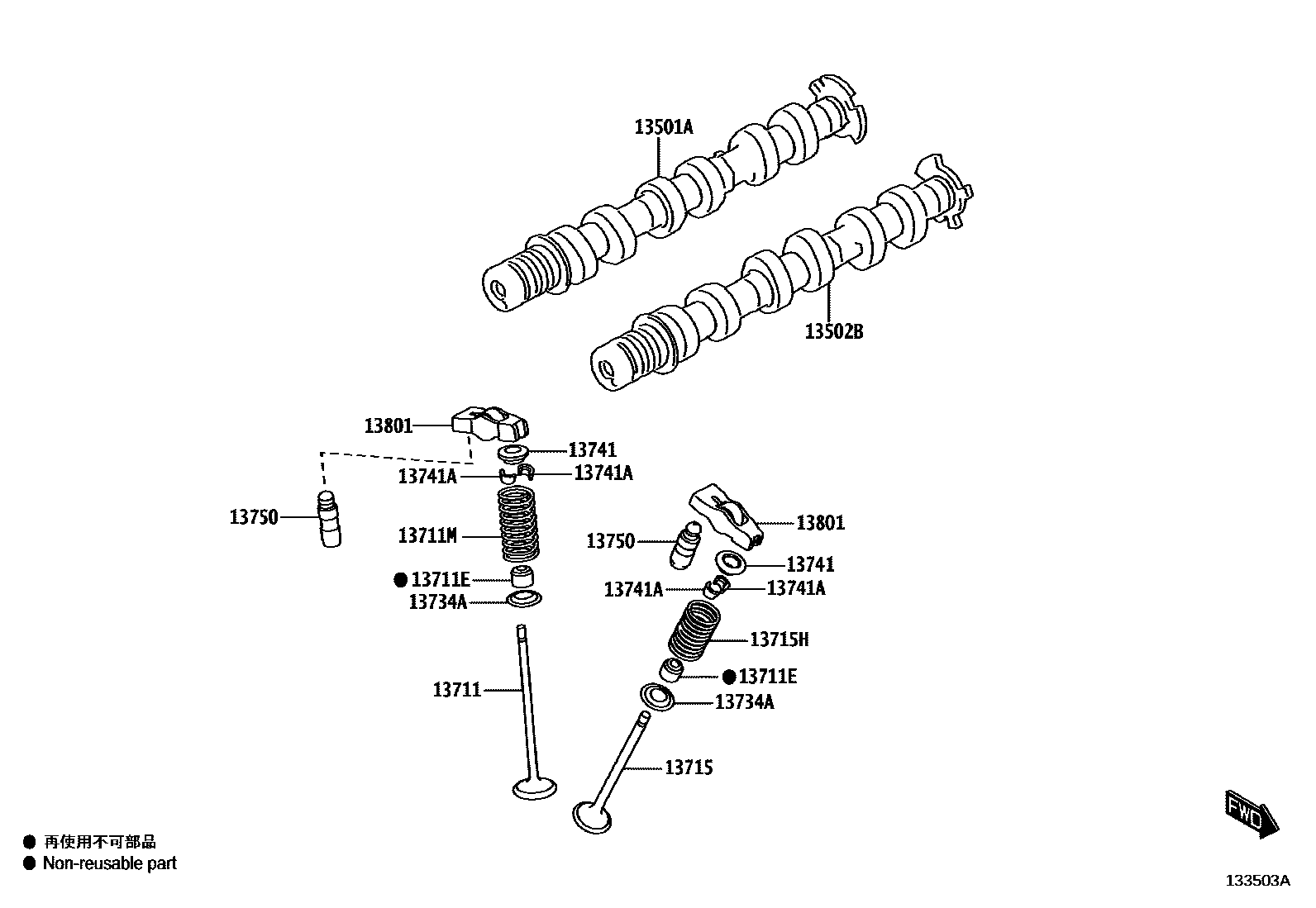

CAMSHAFT & VALVE
13501ACAMSHAFT SUB-ASSY, INTAKE
POS.34
13502BCAMSHAFT SUB-ASSY, EXHAUST
POS.34
13711VALVE, INTAKE
POS.34
13711ESEAL, INTAKE VALVE STEM OIL
POS.34
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
POS.34
13715VALVE, EXHAUST
POS.34
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
POS.34
13734ASEAT, INTAKE VALVE SPRING
POS.34
13741RETAINER, VALVE SPRING
POS.34
13741ALOCK, VALVE SPRING RETAINER
POS.34
13750ADJUSTER ASSY, VALVE LASH
POS.34
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
POS.34
12 parts on this diagram · 3 diagrams in section
