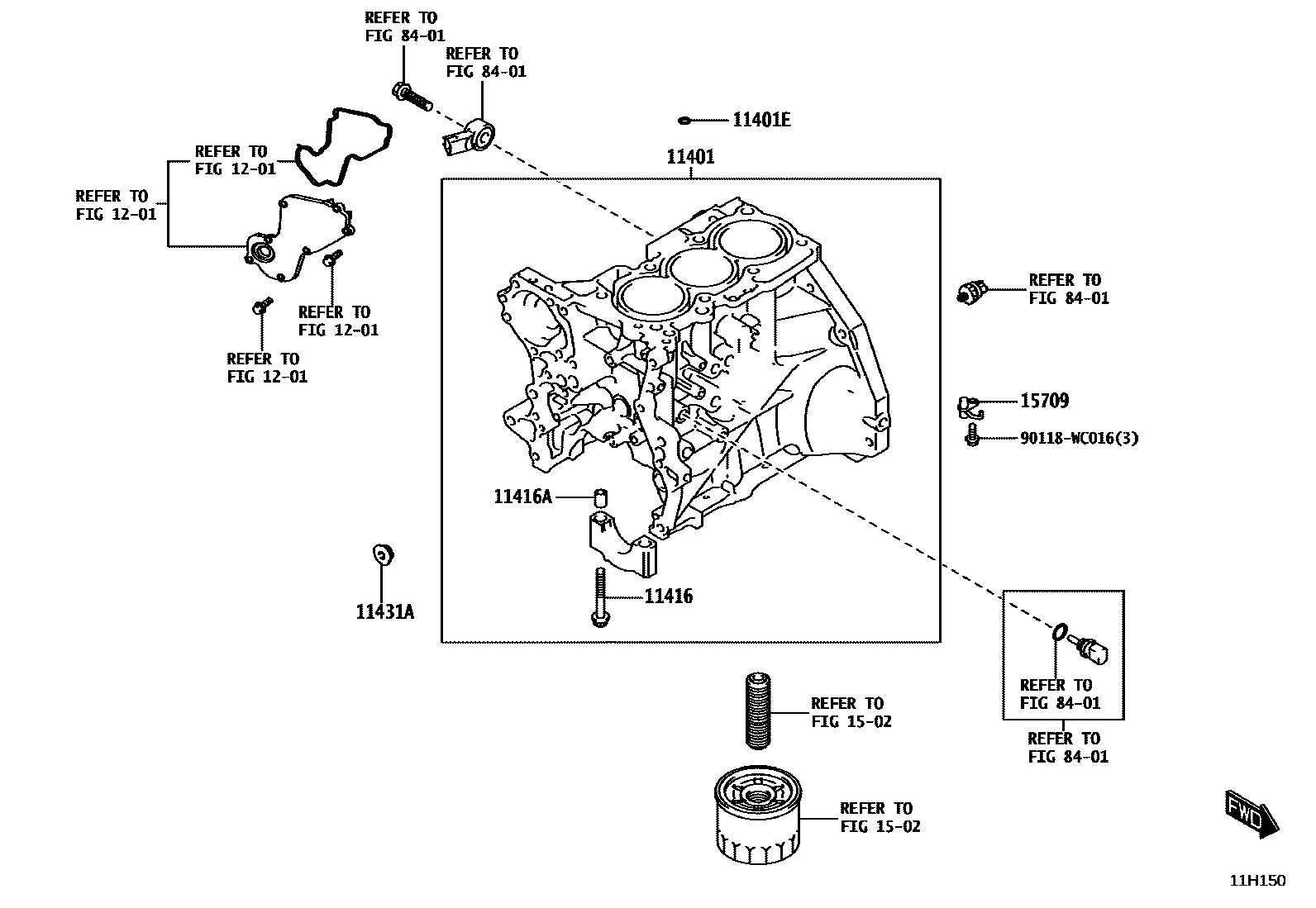

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11401BLOCK SUB-ASSY, CYLINDER

main11410-WC008

main90118-WC459

main90118-WC640

main90118-WCK37

11401EGASKET(FOR CYLINDER BLOCK PLUG)

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90118-WC067

main90118-WCA44

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

1201VENTILATION HOSE

→ Go to FIG 12-01

1502OIL FILTER

→ Go to FIG 15-02

15709NOZZLE SUB-ASSY, OIL, NO.2

main15708-WC003

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90118WC016

main90118-WC016

10 parts on this diagram · 4 diagrams in section
