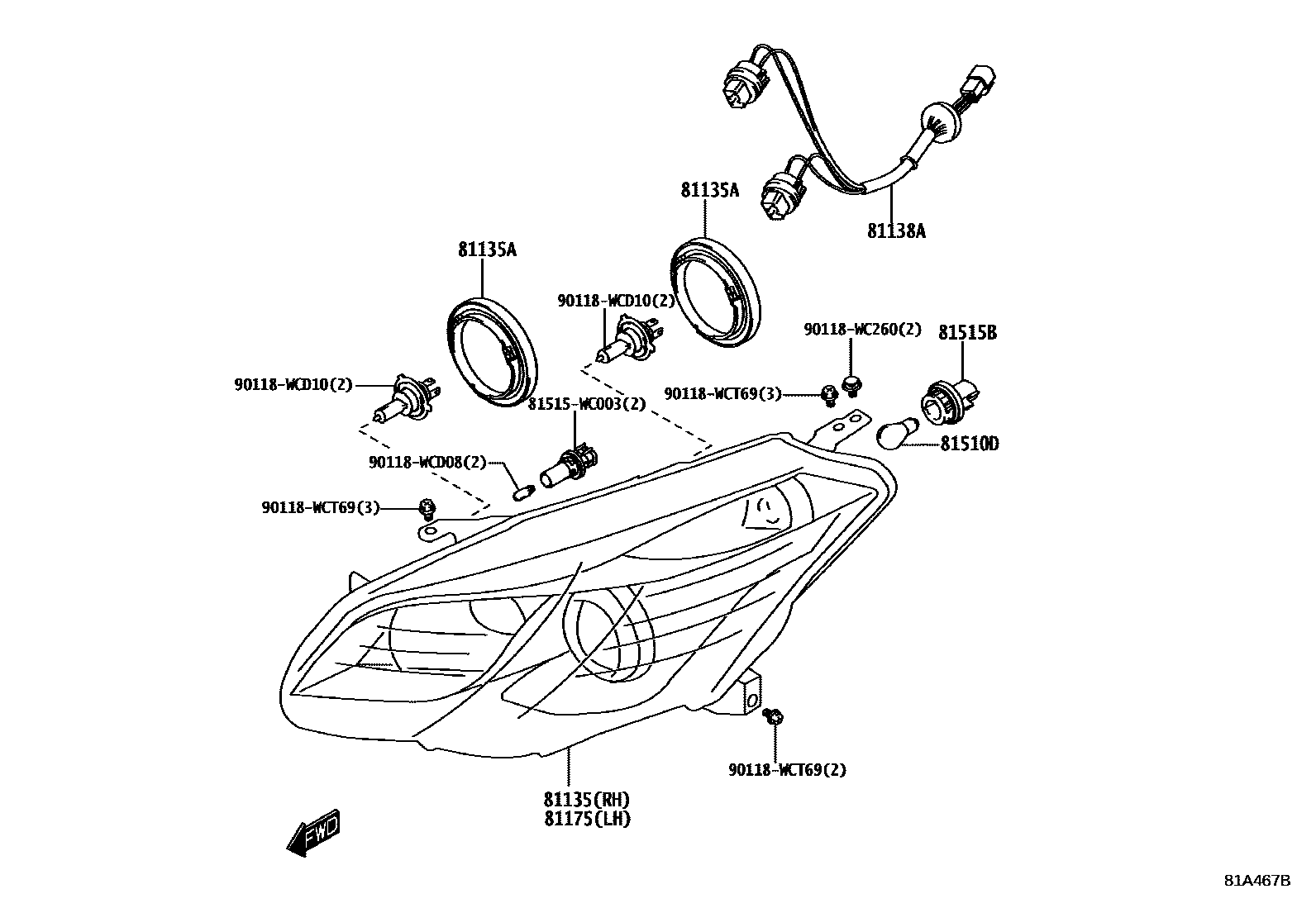

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP

81135UNIT ASSY, HEADLAMP, RH

main81130-WC008iK15B..5F..S..SA202107

POS.11

main81130-WC009iK15B..4FC..S..AFR202107

POS.33

main81130-WC010iK15B..4FC..R..SA202107

POS.10

main81130-WC011iK15B..4FC..R..AFR202107

POS.32

81135ACAP, LOCKING

main81135-WC001×4iK15B..4FC..S..AFR202107

POS.33

main81135-WC002×2iK15B..4FC..R..SA202107

POS.32

81138ASOCKET & WIRE, HEADLAMP

main81138-WC001×2iK15B..4FC..S..AFR202107

POS.33

81175UNIT ASSY, HEADLAMP, LH

main81170-WC006iK15B..5F..S..SA202107

POS.9

main81170-WC007iK15B..4FC..R..SA202107

POS.27

main81170-WC008iK15B..4FC..R..AFR202107

POS.32

main81170-WC011iK15B..4FC..S..AFR202107

POS.33

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90118-WC271×2iK15B..SUD202205-202310

12V 21W,POS.22

main90118-WCD12×2iK15B..4FC..S..AFR202107

12V 21W,POS.20

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81128-WC001×2iK15B..SUD202205-202310

POS.17

main81515-WC004×2iK15B..4FC..S..AFR202107

POS.33

81515WC003WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-WC003

90118WC260

main90118-WC260

90118WCD08

main90118-WCD08

90118WCD10

main90118-WCD10

90118WCT69

main90118-WCT69

11 parts on this diagram · 2 diagrams in section
