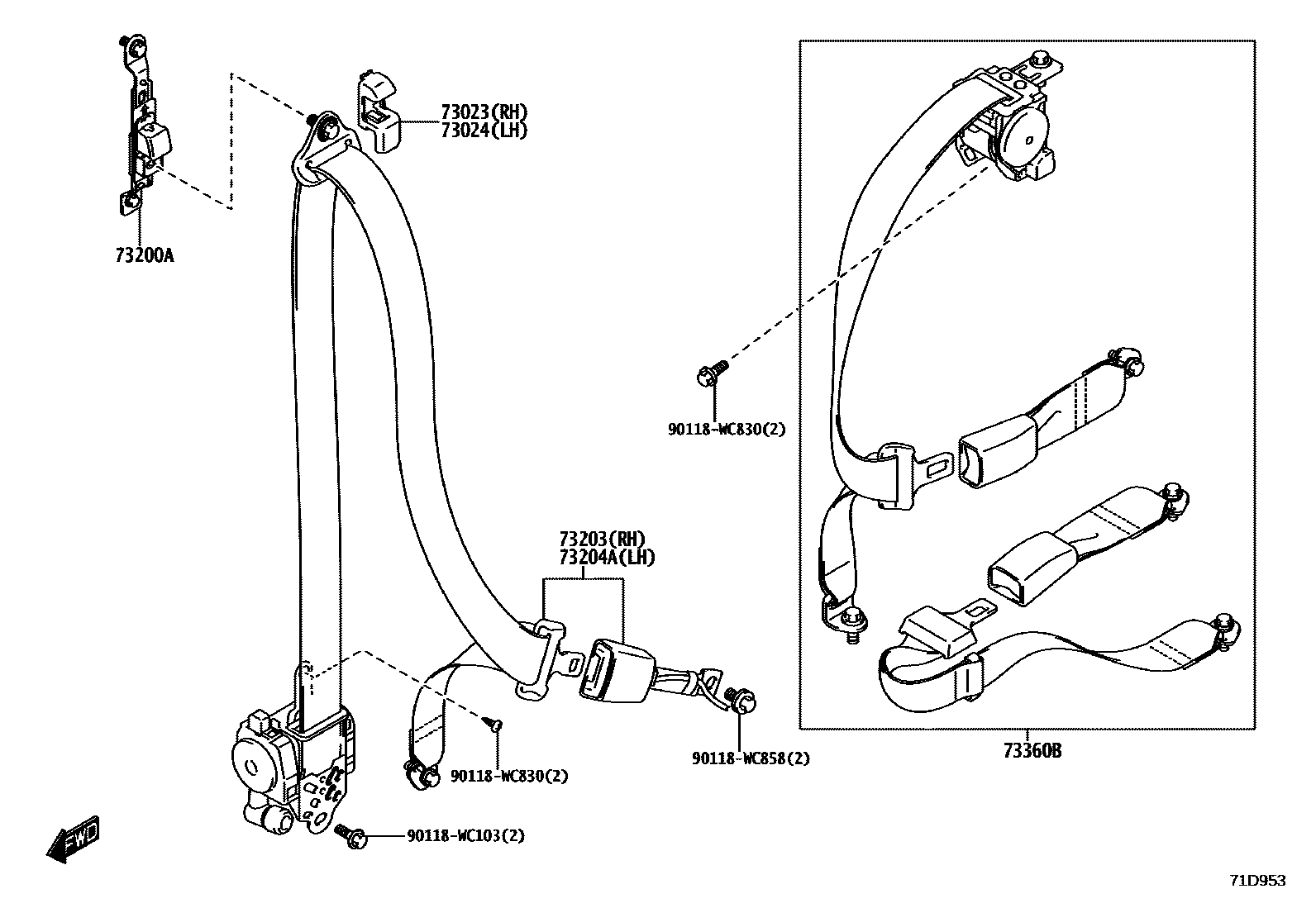

SEAT BELT & CHILD RESTRAINT SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-WC002iK15B..SUD202205-202310

POS.17

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73023-WC002iK15B..SUD202205-202310

POS.17

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-WC003×2iK15B..4FC..R..AFR202107

POS.35

73203BELT SET, FRONT SEAT, RH

main73210-WC009iK15B..4FC..R..AFR202107

POS.16

main73210-WC031iK15B..4FC..R..SA202107

POS.10

73204ABELT SET, FRONT SEAT, LH

main73220-WC008iK15B..4FC..R..SA202107

POS.10

main73220-WC009iK15B..5F..S..AFR202107

POS.16

73360BBELT ASSY, REAR SEAT, OUTER

main73360-WC019iK15B..4FC..R..AFR202107

POS.35

90118WC103

main90118-WC103

90118WC830

main90118-WC830

90118WC858

main90118-WC858

9 parts on this diagram · 1 diagram in section
