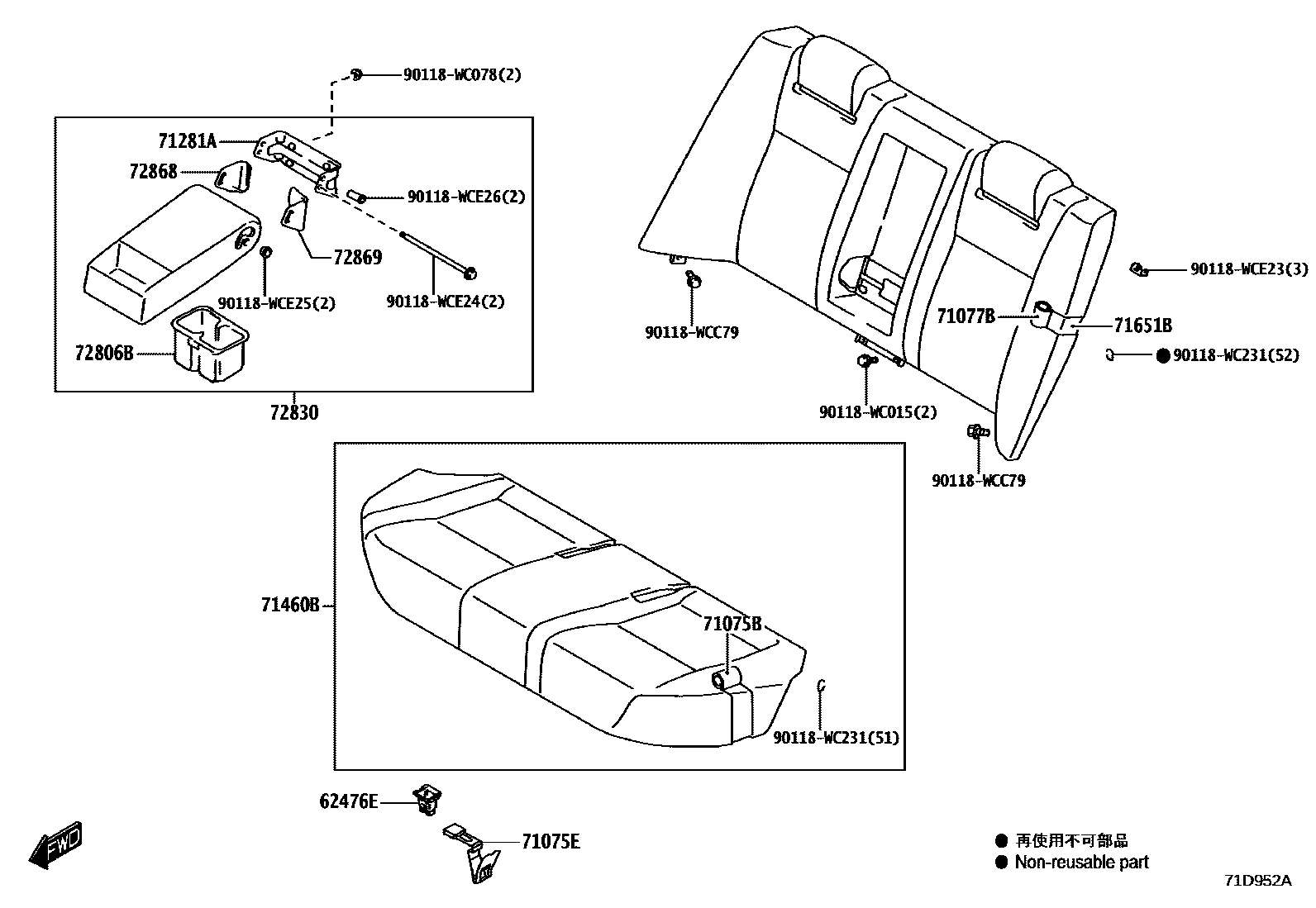

REAR SEAT & SEAT TRACK
62476ECAP, REAR SEAT
POS.10
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
POS.33
POS.32
71075ECLIP(FOR REAR SEAT)
POS.10
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
POS.33
POS.32
71281AHINGE, REAR SEAT CENTER ARMREST
POS.10
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
POS.33
POS.32
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
POS.10
72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
POS.10
72830ARMREST ASSY, REAR SEAT, CENTER
POS.33
POS.32
72868COVER, CENTER ARMREST HINGE, RH
POS.10
72869COVER, CENTER ARMREST HINGE, LH
POS.17
90118WC015
main90118-WC015
90118WC078
main90118-WC078
90118WC231
main90118-WC231
90118WCC79
main90118-WCC79
90118WCE23
main90118-WCE23
90118WCE24
main90118-WCE24
90118WCE25
main90118-WCE25
90118WCE26
main90118-WCE26
19 parts on this diagram · 1 diagram in section
