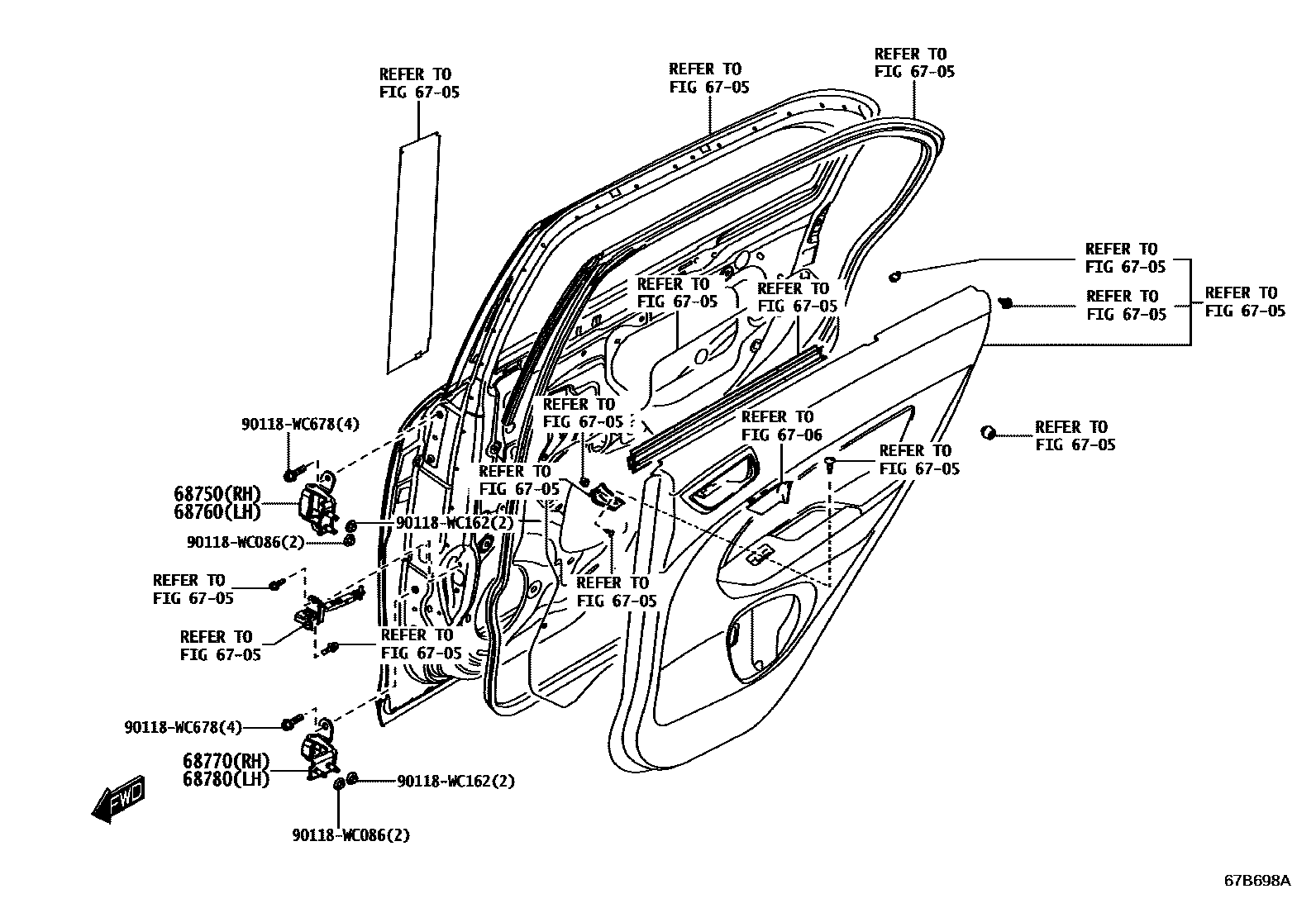

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

6706REAR DOOR LOCK & HANDLE

→ Go to FIG 67-06

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-WC001

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-WC001

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-WC002

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-WC002

90118WC086

main90118-WC086

90118WC162

main90118-WC162

90118WC678

main90118-WC678

9 parts on this diagram · 2 diagrams in section
