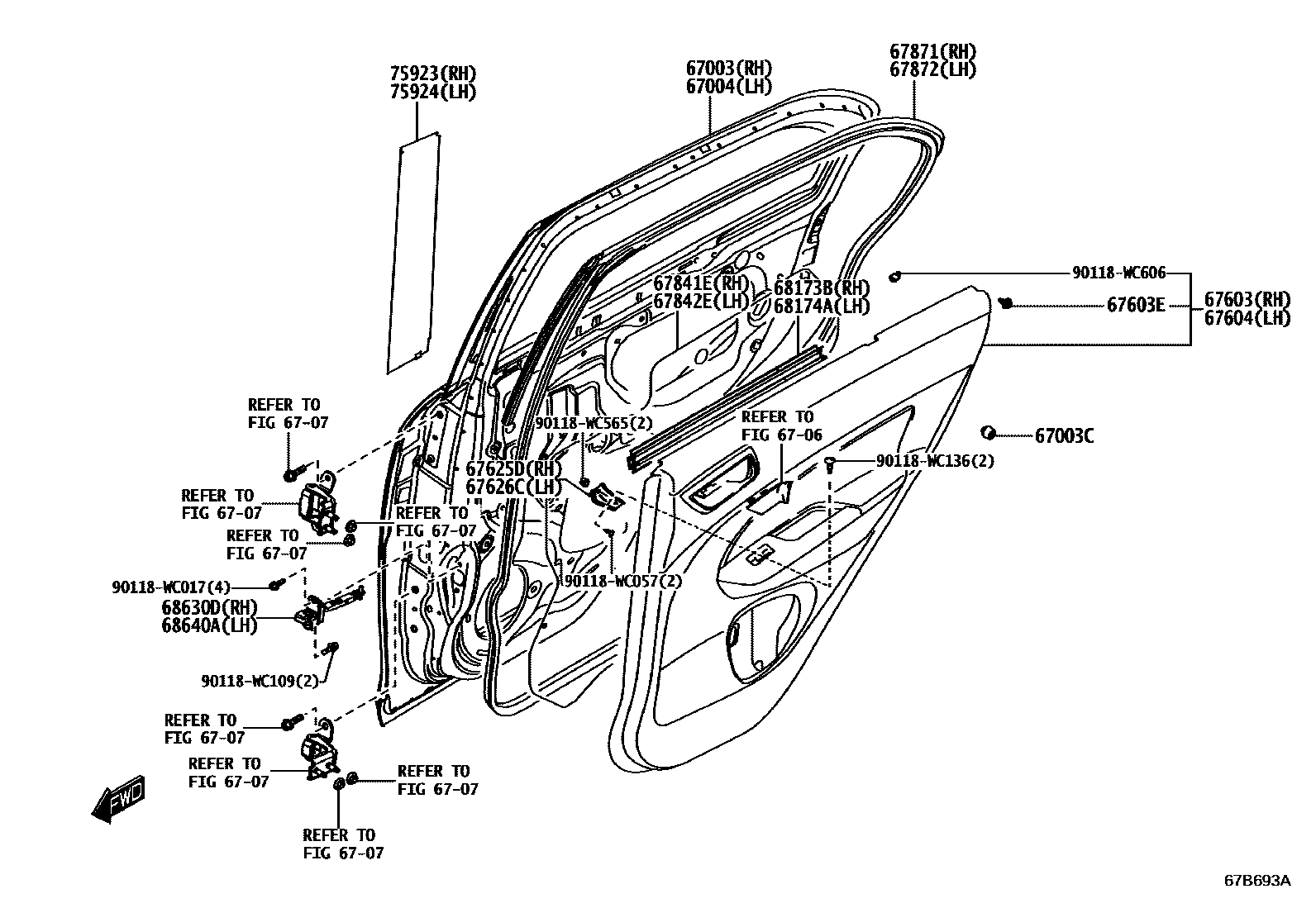

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-WC005iK15B..5F..R..AFR202107

POS.15

67003CCUSHION, REAR DOOR PANEL

main90118-WC601×2iK15B..SUD202205-202310

POS.28

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-WC005iK15B..SUD202205-202310

POS.28

6706

6707

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-WC028iK15B..5F..S..AFR202107

POS.33

main67630-WC029iK15B..5F..R..SA202107

POS.12

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90118-WC263×8iK15B..SUD202205-202310

POS.28

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-WC028iK15B..5F..S..AFR202107

POS.33

main67640-WC029iK15B..SUD202205-202310

POS.28

67625DBRACKET, REAR DOOR TRIM

main90118-WCE11iK15B..SUD202205-202310

POS.28

67626CBRACKET, REAR DOOR TRIM, NO.2

main90118-WCE12iK15B..SUD202205-202310

POS.28

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-WC004iK15B..SUD202205-202310

POS.28

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-WC004iK15B..SUD202205-202310

POS.28

67871WEATHERSTRIP, REAR DOOR, RH

main67871-WC003iK15B..SUD202205-202310

POS.28

67872WEATHERSTRIP, REAR DOOR, LH

main67872-WC003iK15B..SUD202205-202310

POS.28

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68180-WC008iK15B..SUD202205-202310

POS.28

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68230-WC008iK15B..SUD202205-202310

POS.28

68630DCHECK ASSY, REAR DOOR, RH

main68610-WC002iK15B..SUD202205-202310

POS.28

68640ACHECK ASSY, REAR DOOR, LH

main68610-WC002iK15B..SUD202205-202310

POS.28

75923TAPE, BLACK OUT, NO.2 RH

main75927-WC009iK15B..SUD202205-202310

POS.22,TRIM01,02,03,11,12,14&Z7Q ,ZQK ,ZQL ,ZQM ,ZYR ,ZZP

75924TAPE, BLACK OUT, NO.2 LH

main75928-WC009iK15B..SUD202205-202310

POS.22,TRIM01,02,03,11,12,14&Z7Q ,ZQK ,ZQL ,ZQM ,ZYR ,ZZP

90118WC017

main90118-WC017

90118WC057

main90118-WC057

90118WC109

main90118-WC109

90118WC136

main90118-WC136

90118WC565

main90118-WC565

90118WC606

main90118-WC606

26 parts on this diagram · 2 diagrams in section
