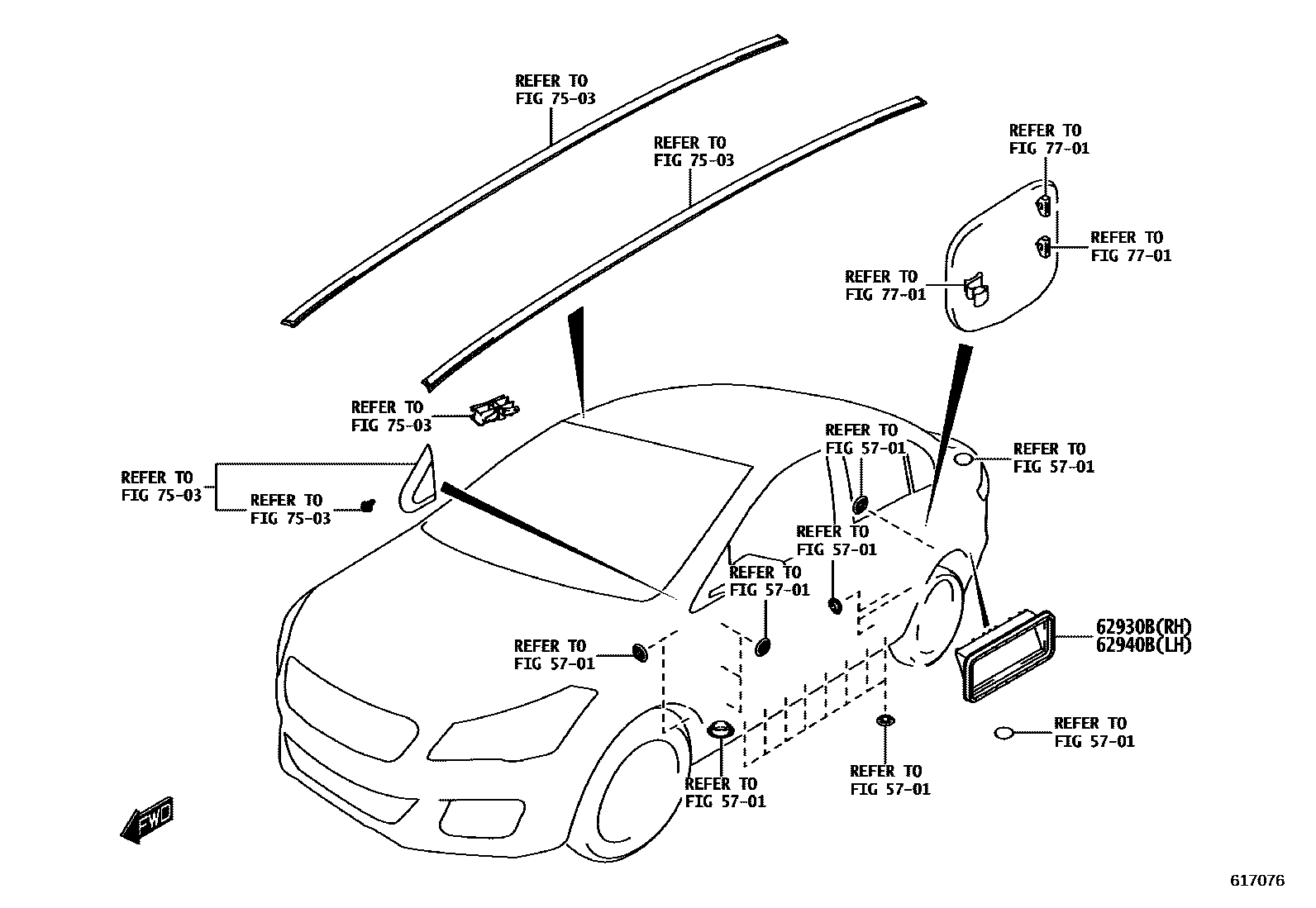

Toyota BELTA 13A — ROOF SIDE VENTILATOR

5701HOLE PLUG

→ Go to FIG 57-01

62930BDUCT ASSY, QUARTER VENT, RH

62940BDUCT ASSY, QUARTER VENT, LH

7503SIDE MOULDING

→ Go to FIG 75-03

7701FUEL TANK & TUBE

→ Go to FIG 77-01

5 parts on this diagram · 1 diagram in section

ROOF SIDE VENTILATOR for Toyota BELTA 13A

This section contains 5 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota BELTA 13A. Key components include: HOLE PLUG, DUCT ASSY, QUARTER VENT, RH, DUCT ASSY, QUARTER VENT, LH, SIDE MOULDING, FUEL TANK & TUBE.
