Toyota URBAN CRUISER 134 — FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
04479CYLINDER KIT, DISC BRAKE, FRONT
04945SHIM KIT, ANTI SQUEAL, FRONT
04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
4303FRONT AXLE HUB
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47741BOOT, FRONT DISC BRAKE CYLINDER
47750CYLINDER ASSY, DISC BRAKE, LH
47781COVER, DISC BRAKE DUST, FRONT RH
47782COVER, DISC BRAKE DUST, FRONT LH
90118WCB94
17 parts on this diagram · 1 diagram in section

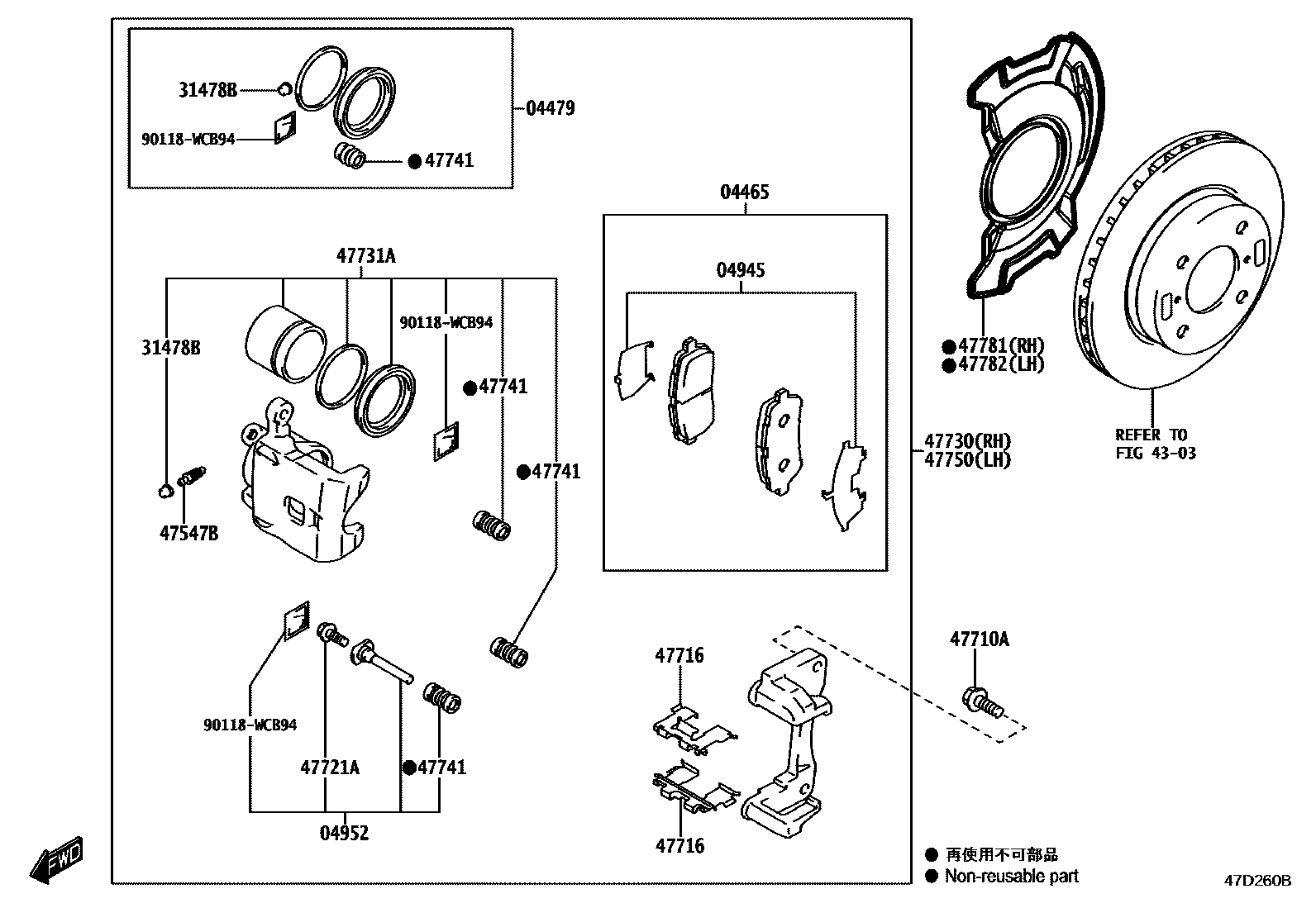

FRONT DISC BRAKE CALIPER & DUST COVER for Toyota URBAN CRUISER 134
This section contains 17 genuine Toyota parts for the FRONT DISC BRAKE CALIPER & DUST COVER system of the Toyota URBAN CRUISER 134. Key components include: PAD KIT, DISC BRAKE, FRONT, CYLINDER KIT, DISC BRAKE, FRONT, SHIM KIT, ANTI SQUEAL, FRONT, PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE, CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE).
