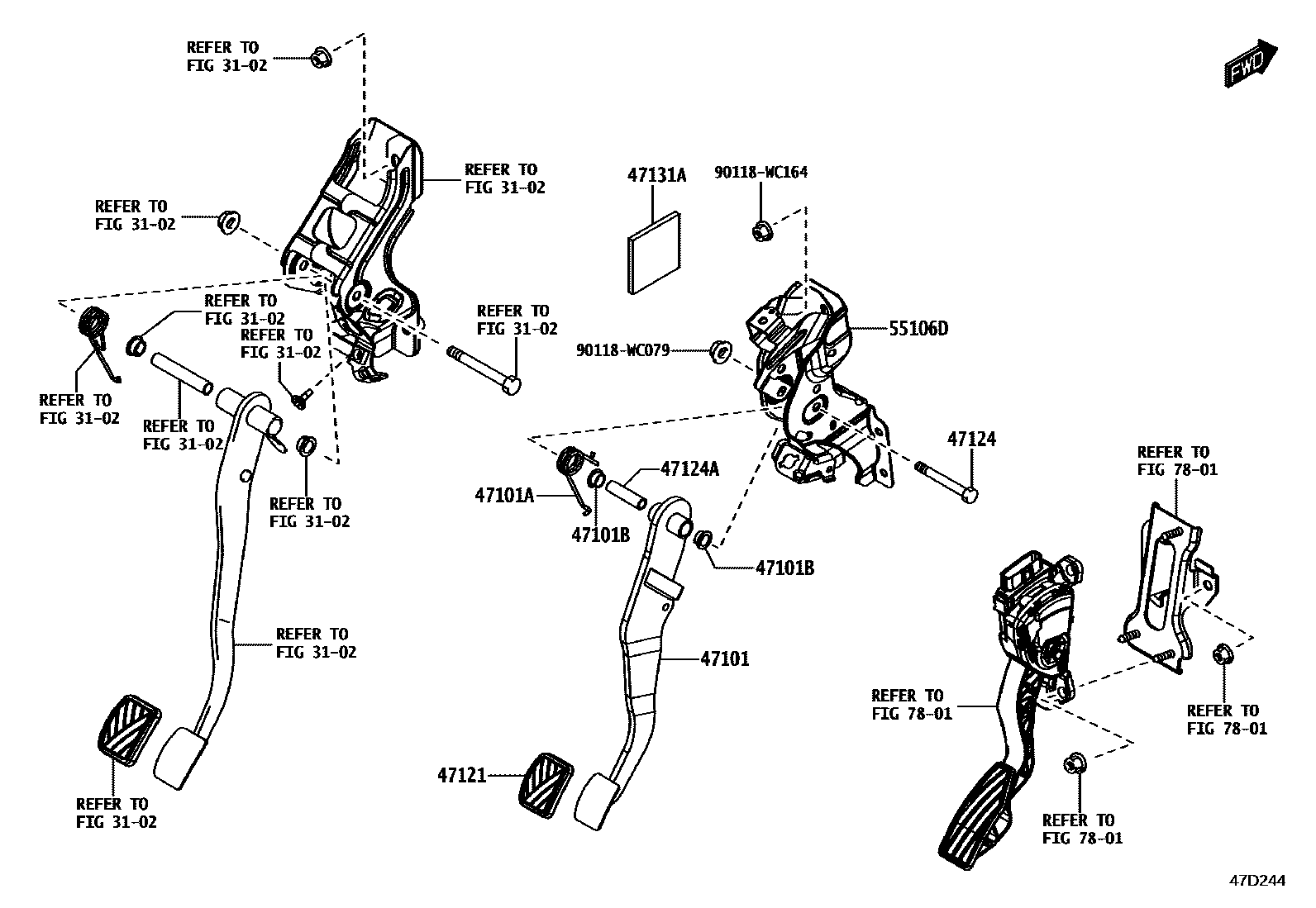

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

3102

47101PEDAL SUB-ASSY, BRAKE

main47101-WC007iK15B..5F..R..SA202107

POS.10

main47101-WC008iK15B..4FC..R..SA202107

POS.27

main47101-WC009iK15B..5F..S..AFR202107

POS.34

main47101-WC010iK15B..SUD202205-202310

POS.17

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90118-WCD65iK15B..4FC..R..SA202107

POS.32

47101BBUSH(FOR BRAKE PEDAL)

main90118-WC219×2iK15B..4FC..R..SA202107

POS.32

47121PAD, BRAKE PEDAL

main47121-WC002iK15B..5F..S..AFR202107

POS.34

main47121-WC003iK15B..4FC..S..SA202107

POS.27

47124SHAFT, BRAKE PEDAL

main90118-WCD66iK15B..4FC..R..SA202107

POS.32

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90118-WC538iK15B..SUD202205-202310

POS.17

47131ACUSHION(FOR BRAKE PADAL STOPPER)

main55356-WC001iK15B..5F..R..SA202107

POS.27

55106DBRACKET SUB-ASSY, PEDAL

main55106-WC004iK15B..5F..R..SA202107

POS.27

main55106-WC006iK15B..5F..S..AFR202107

POS.34

7801

90118WC079

main90118-WC079

90118WC164

main90118-WC164

12 parts on this diagram · 8 diagrams in section
