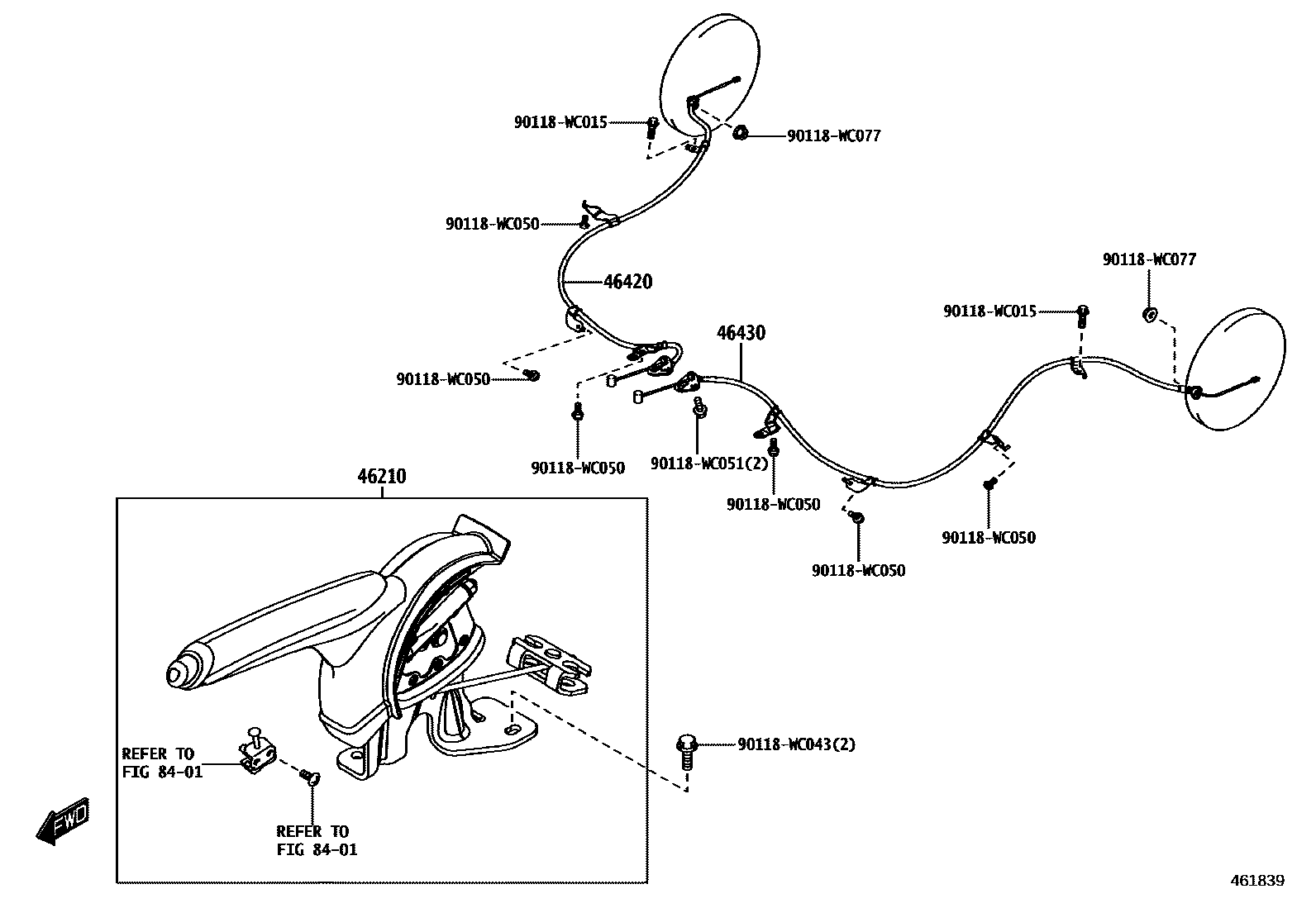

PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-WC003iK15B..SUD202205-202310

POS.17

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-WC005iK15B..SUD202205-202310

POS.17

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-WC005iK15B..SUD202205-202310

POS.17

8401

90118WC015

main90118-WC015

90118WC043

main90118-WC043

90118WC050

main90118-WC050

90118WC051

main90118-WC051

90118WC077

main90118-WC077

9 parts on this diagram · 1 diagram in section
