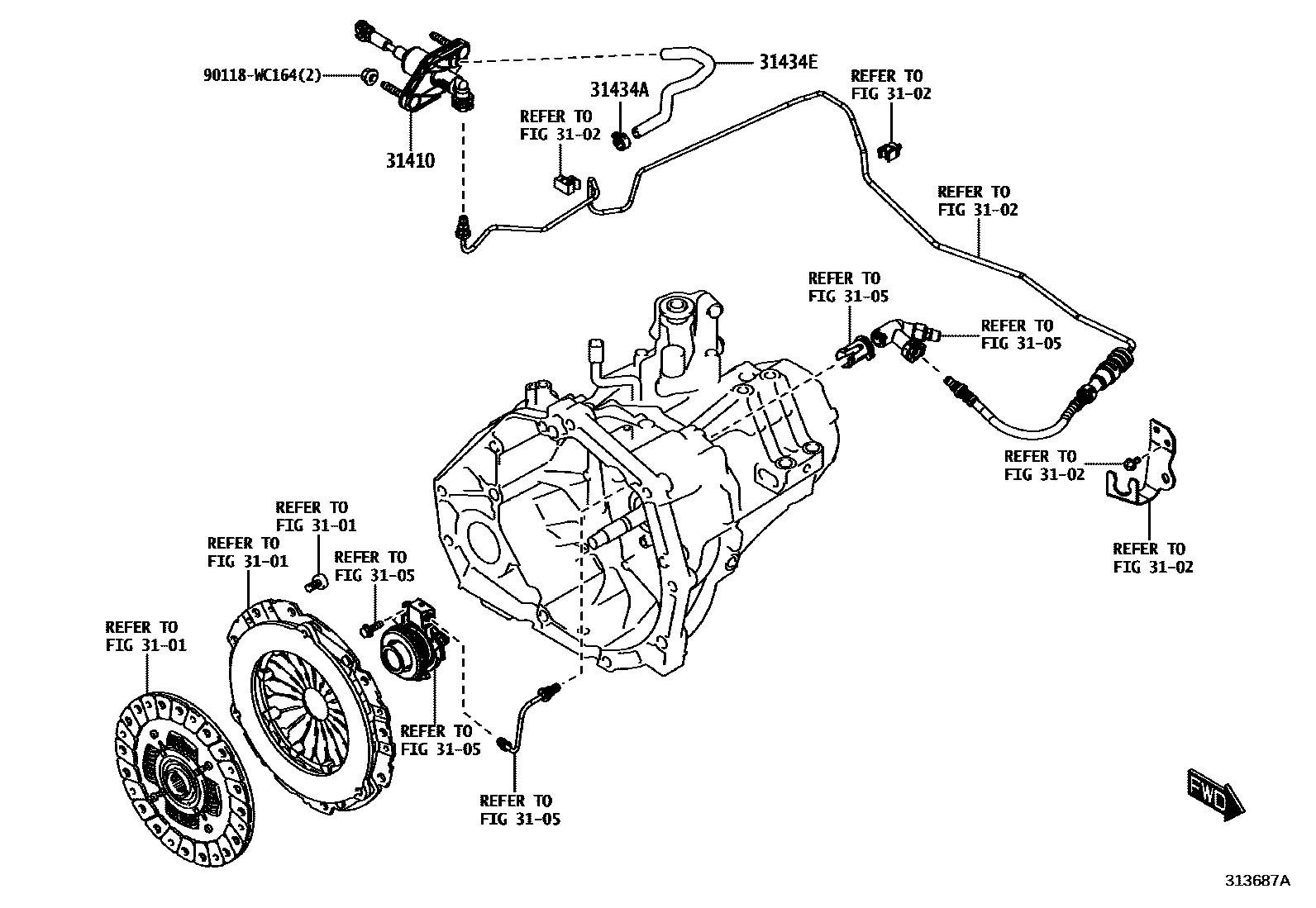

Toyota BELTA 13A — CLUTCH MASTER CYLINDER

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31410CYLINDER ASSY, CLUTCH MASTER

31410-WC003

31410-WC004

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

31434EHOSE, CLUTCH RESERVOIR, NO.1

90118WC164

90118-WC164

7 parts on this diagram · 2 diagrams in section

CLUTCH MASTER CYLINDER for Toyota BELTA 13A

This section contains 7 genuine Toyota parts for the CLUTCH MASTER CYLINDER system of the Toyota BELTA 13A. Key components include: CLUTCH & RELEASE FORK, CLUTCH PEDAL & FLEXIBLE HOSE, CLUTCH RELEASE CYLINDER, CYLINDER ASSY, CLUTCH MASTER, CLIP(FOR CLUTCH RESERVOIR TUBE).
