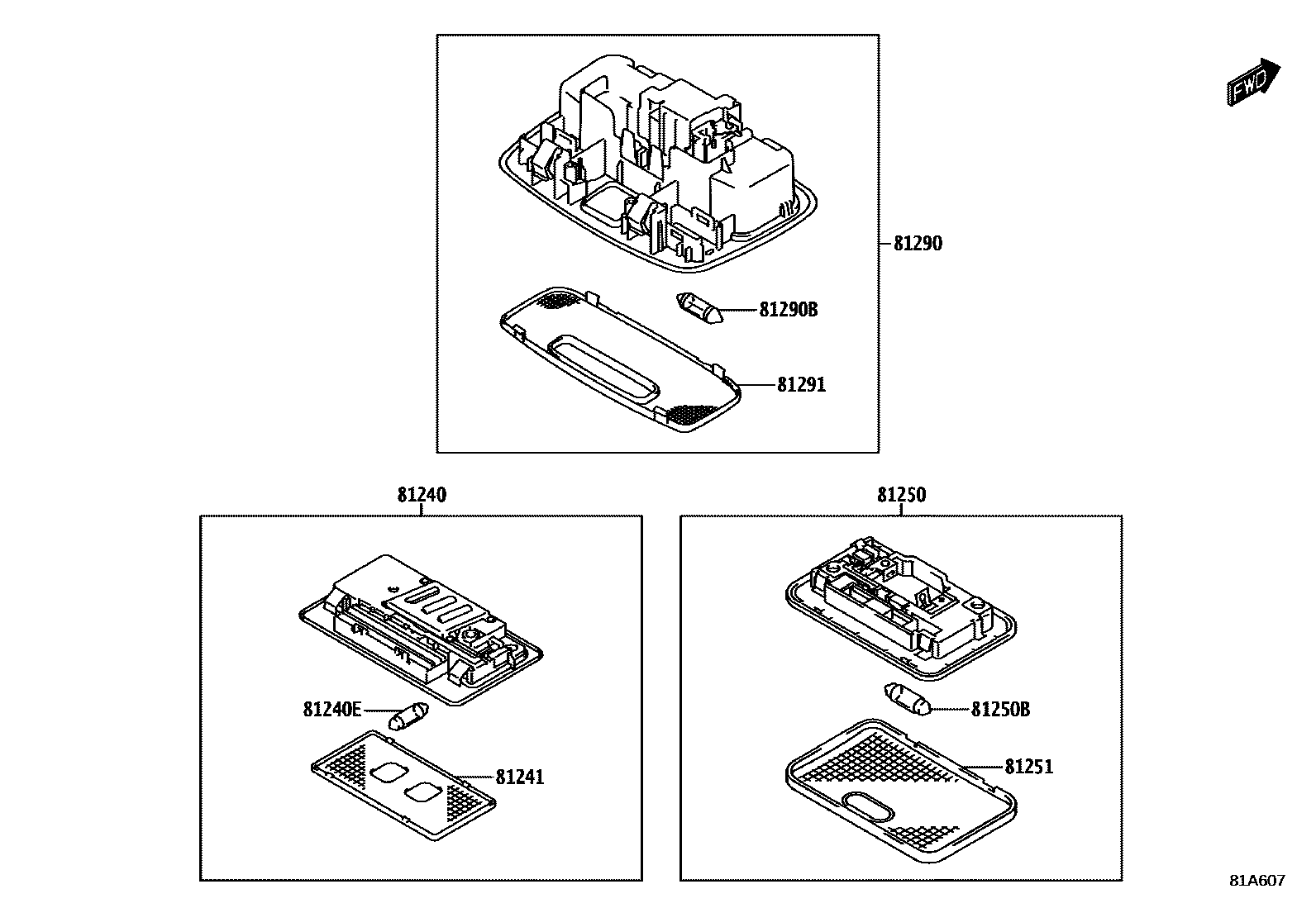

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
POS.1; POS.12; POS.18; POS.24; POS.32; POS.35; POS.6
81240EBULB, ROOM LAMP, NO.2
12V 10W,POS.1; 12V 10W,POS.12; 12V 10W,POS.18; 12V 10W,POS.24; 12V 10W,POS.32; 12V 10W,POS.35; 12V 10W,POS.6
81241LENS, ROOM LAMP, NO.1
POS.1; POS.12; POS.18; POS.24; POS.32; POS.35; POS.6
81250LAMP ASSY, ROOM, NO.2
POS.11; POS.17; POS.23; POS.31
81250BBULB, ROOM LAMP, NO.2
12V 10W,POS.11; 12V 10W,POS.17; 12V 10W,POS.23; 12V 10W,POS.31
81251LENS, ROOM LAMP, NO.2
POS.11; POS.17; POS.23; POS.31
81290LAMP ASSY, ROOM, NO.3
POS.11; POS.17; POS.23; POS.31
81290BBULB, ROOM LAMP, NO.3
12V 10W,POS.11; 12V 10W,POS.17; 12V 10W,POS.23; 12V 10W,POS.31
81291LENS, ROOM LAMP, NO.3(FOR REAR)
POS.11; POS.17; POS.23; POS.31
9 parts on this diagram · 1 diagram in section
