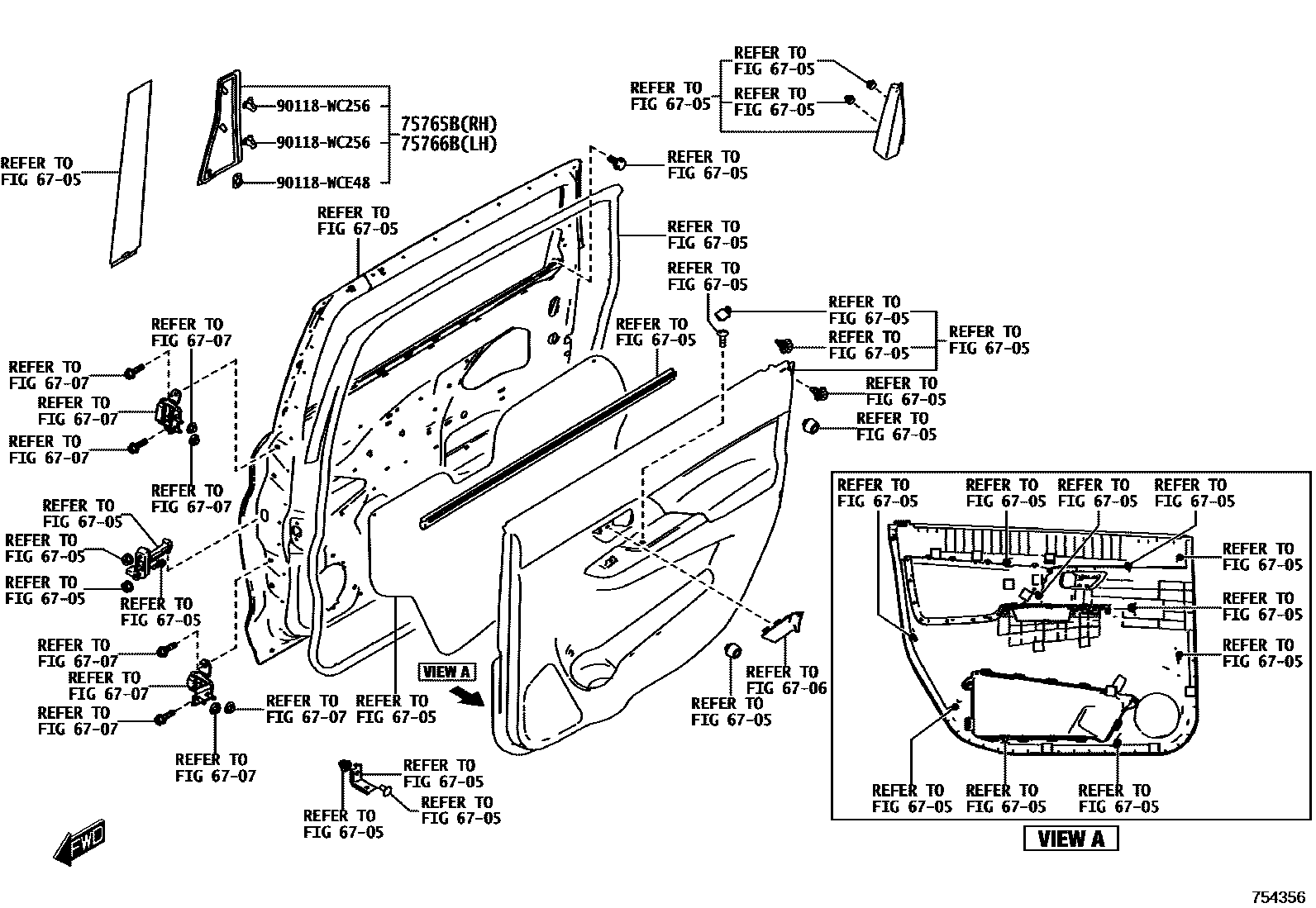

SIDE MOULDING

0001 1 0002 1

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

6706REAR DOOR LOCK & HANDLE

→ Go to FIG 67-06

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main67675-WC002iK15B..SUD202205-202311

POS.11; POS.17; POS.23; POS.31

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main67676-WC002iK15B..SUD202205-202311

POS.11; POS.17; POS.23; POS.31

90118WC256

main90118-WC256

90118WCE48

main90118-WCE48

7 parts on this diagram · 2 diagrams in section
