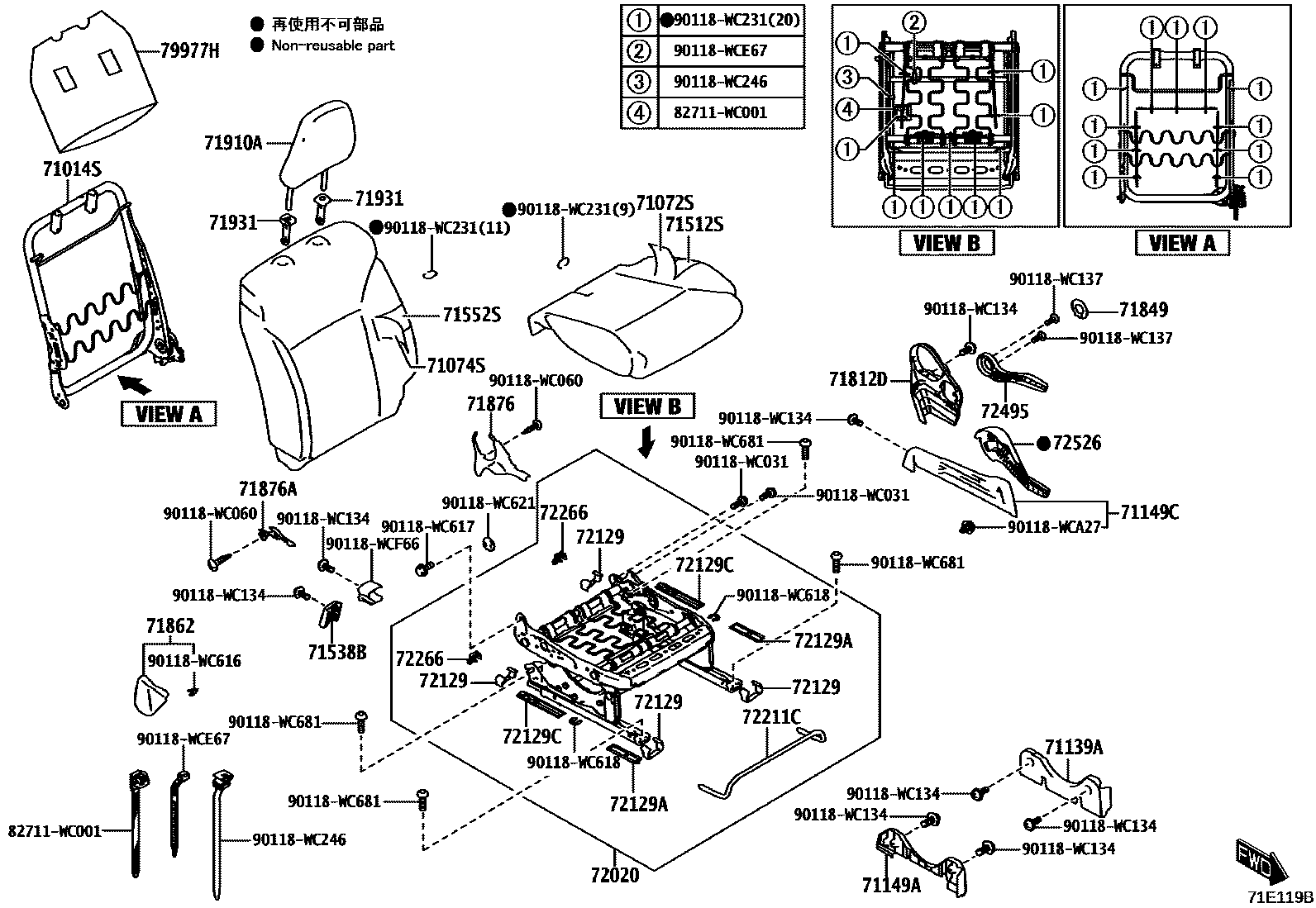

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-WC001iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.3; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
POS.31
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-WC005iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.6; POS.7; POS.8; POS.9
main71072-WC006iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.3; POS.4; POS.5
POS.31
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-WC014iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.3; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
main71074-WC039iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202207
POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.30; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39
71139ACOVER, FRONT SEAT LEG, NO.1
main71139-WC003iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.6; POS.7; POS.8; POS.9
main71139-WC004iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
71149ACOVER, FRONT SEAT LEG, LH
main71149-WC002iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.6; POS.7; POS.8; POS.9
main71149-WC004iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
71149CCOVER, FRONT SEAT LEG, LH (FOR LH SEAT)
main71149-WC003iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
POS.11; POS.17; POS.23; POS.31
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
POS.11; POS.17; POS.23; POS.31
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-WC001iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-WC005iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.6; POS.7; POS.8; POS.9
main71812-WC006iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
71849CAP, SEAT ADJUSTER COVER, LH
POS.11; POS.17; POS.23; POS.31
71862SHIELD, FRONT SEAT CUSHION, INNER LH
POS.11; POS.17; POS.23; POS.31
71876COVER, RECLINING ADJUSTER INSIDE, LH
POS.11; POS.17; POS.23; POS.31
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
POS.11; POS.17; POS.23; POS.31
71910AHEADREST ASSY, FRONT SEAT
main71910-WC014iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
71931SUPPORT, FRONT SEAT HEADREST
main71930-WC001iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
W(LOCK),POS.1; W(LOCK),POS.10; W(LOCK),POS.12; W(LOCK),POS.13; W(LOCK),POS.14; W(LOCK),POS.15; W(LOCK),POS.16; W(LOCK),POS.18; W(LOCK),POS.19; W(LOCK),POS.2; W(LOCK),POS.20; W(LOCK),POS.21; W(LOCK),POS.22; W(LOCK),POS.24; W(LOCK),POS.25; W(LOCK),POS.26; W(LOCK),POS.27; W(LOCK),POS.28; W(LOCK),POS.29; W(LOCK),POS.3; W(LOCK),POS.30; W(LOCK),POS.32; W(LOCK),POS.33; W(LOCK),POS.34; W(LOCK),POS.35; W(LOCK),POS.36; W(LOCK),POS.37; W(LOCK),POS.38; W(LOCK),POS.39; W(LOCK),POS.4; W(LOCK),POS.5; W(LOCK),POS.6; W(LOCK),POS.7; W(LOCK),POS.8; W(LOCK),POS.9
W/O(LOCK),POS.11; W/O(LOCK),POS.17; W/O(LOCK),POS.23; W/O(LOCK),POS.31
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-WC002iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.6; POS.7; POS.8; POS.9
main72020-WC003iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
main72129-WC001×2iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
72129APROTECTOR, SEAT TRACK LOWER RAIL, NO.2
POS.11; POS.17; POS.23; POS.31
72129CPROTECTOR, SEAT TRACK LOWER RAIL, NO.3
POS.11; POS.17; POS.23; POS.31
72211HANDLE, SEAT TRACK ADJUSTING
main72211-WC003iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.24; POS.25; POS.26; POS.27; POS.3; POS.30; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-WC003iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
72266COVER, SEAT TRACK UPPER RAIL, LH
main72125-WC001×2iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.3; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
72495HANDLE, VERTICAL ADJUSTING, LH
POS.11; POS.17; POS.23; POS.31
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-WC001iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
79977HFELT, FRONT SEATBACK, LH
main79977-WC001iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
82711WC001WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-WC001
90118WC031
main90118-WC031
90118WC060
main90118-WC060
90118WC134
main90118-WC134
90118WC137
main90118-WC137
90118WC231
main90118-WC231
90118WC246
main90118-WC246
90118WC616
main90118-WC616
90118WC617
main90118-WC617
90118WC618
main90118-WC618
90118WC621
main90118-WC621
90118WC681
main90118-WC681
90118WCA27
main90118-WCA27
90118WCE67
main90118-WCE67
90118WCF66
main90118-WCF66
41 parts on this diagram · 6 diagrams in section
