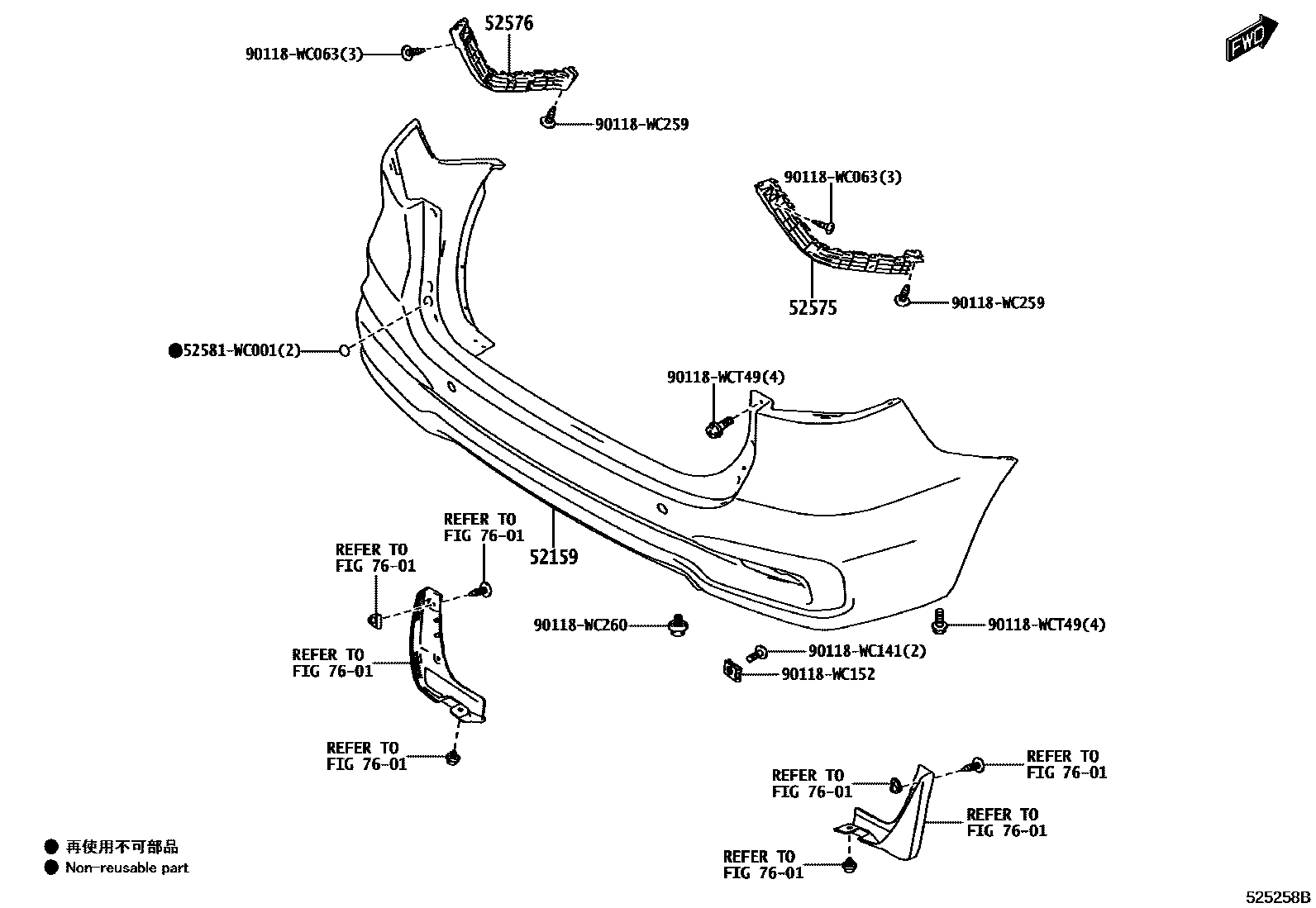

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-WC008i202108

POS.1; POS.12; POS.18; POS.6

main52159-WC010i202108

POS.10; POS.13; POS.14; POS.15; POS.16; POS.19; POS.2; POS.20; POS.21; POS.22; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.7; POS.8; POS.9

52575RETAINER, REAR BUMPER SIDE, RH

main52575-WC005i202108

POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9

52576RETAINER, REAR BUMPER SIDE, LH

main52576-WC006i202205-202311

POS.11; POS.17; POS.23; POS.31

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

52581WC001PROTECTOR, REAR BUMPER, RH

main52581-WC001

90118WC063

main90118-WC063

90118WC141

main90118-WC141

90118WC152
