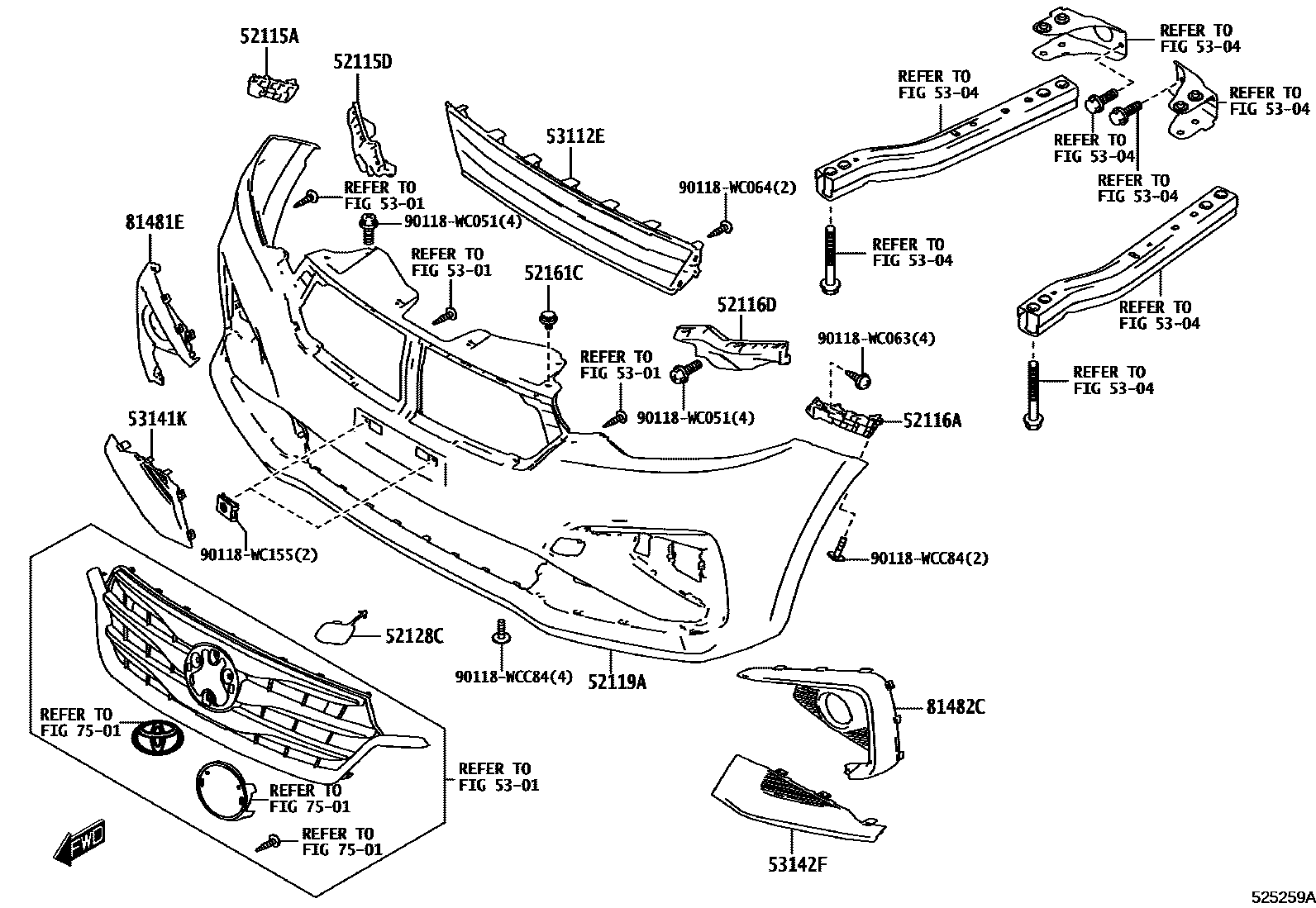

FRONT BUMPER & BUMPER STAY
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52535-WC005iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.3; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH
POS.11; POS.17; POS.23
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52536-WC005iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.3; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH
POS.11; POS.17; POS.23
52119ACOVER, FRONT BUMPER
main52119-WC006iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
PAINT REQ.,POS.1; PAINT REQ.,POS.10; PAINT REQ.,POS.12; PAINT REQ.,POS.13; PAINT REQ.,POS.14; PAINT REQ.,POS.15; PAINT REQ.,POS.16; PAINT REQ.,POS.18; PAINT REQ.,POS.19; PAINT REQ.,POS.2; PAINT REQ.,POS.20; PAINT REQ.,POS.21; PAINT REQ.,POS.22; PAINT REQ.,POS.3; PAINT REQ.,POS.4; PAINT REQ.,POS.5; PAINT REQ.,POS.6; PAINT REQ.,POS.7; PAINT REQ.,POS.8; PAINT REQ.,POS.9
main52119-WC014iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202207
PAINT REQ.,POS.24; PAINT REQ.,POS.25; PAINT REQ.,POS.26; PAINT REQ.,POS.27; PAINT REQ.,POS.28; PAINT REQ.,POS.29; PAINT REQ.,POS.30; PAINT REQ.,POS.32; PAINT REQ.,POS.33; PAINT REQ.,POS.34; PAINT REQ.,POS.35; PAINT REQ.,POS.36; PAINT REQ.,POS.37; PAINT REQ.,POS.38; PAINT REQ.,POS.39
52128CCOVER, FRONT BUMPER HOLE, LH
main52127-WC008iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
NO PAINT REQ.,POS.1; NO PAINT REQ.,POS.10; NO PAINT REQ.,POS.12; NO PAINT REQ.,POS.13; NO PAINT REQ.,POS.14; NO PAINT REQ.,POS.15; NO PAINT REQ.,POS.16; NO PAINT REQ.,POS.18; NO PAINT REQ.,POS.19; NO PAINT REQ.,POS.2; NO PAINT REQ.,POS.20; NO PAINT REQ.,POS.21; NO PAINT REQ.,POS.22; NO PAINT REQ.,POS.3; NO PAINT REQ.,POS.4; NO PAINT REQ.,POS.5; NO PAINT REQ.,POS.6; NO PAINT REQ.,POS.7; NO PAINT REQ.,POS.8; NO PAINT REQ.,POS.9
main52127-WC016iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202207
NO PAINT REQ.,POS.24; NO PAINT REQ.,POS.25; NO PAINT REQ.,POS.26; NO PAINT REQ.,POS.27; NO PAINT REQ.,POS.28; NO PAINT REQ.,POS.29; NO PAINT REQ.,POS.30; NO PAINT REQ.,POS.32; NO PAINT REQ.,POS.33; NO PAINT REQ.,POS.34; NO PAINT REQ.,POS.35; NO PAINT REQ.,POS.36; NO PAINT REQ.,POS.37; NO PAINT REQ.,POS.38; NO PAINT REQ.,POS.39
52161CPIECE, FRONT BUMPER
main90118-WC260×2iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.3; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
5301RADIATOR GRILLE
5304FRONT FENDER APRON & DASH PANEL
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.,POS.11; NO PAINT REQ.,POS.17; NO PAINT REQ.,POS.23
53141KGARNISH, FOG LAMP COVER, RH
main81481-WC009iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.3; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
53142FGARNISH, FOG LAMP COVER, LH
main81482-WC009iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.3; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
81481ECOVER, FOG LAMP, RH
main81481-WC007iK15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
NO PAINT REQ.,POS.12; NO PAINT REQ.,POS.13; NO PAINT REQ.,POS.15; NO PAINT REQ.,POS.18; NO PAINT REQ.,POS.19; NO PAINT REQ.,POS.21; POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
NO PAINT REQ.,POS.11; NO PAINT REQ.,POS.17; NO PAINT REQ.,POS.23
main81481-WC014iK15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202207
NO PAINT REQ.,POS.24; NO PAINT REQ.,POS.25; NO PAINT REQ.,POS.27; NO PAINT REQ.,POS.28; NO PAINT REQ.,POS.32; NO PAINT REQ.,POS.33; NO PAINT REQ.,POS.35; NO PAINT REQ.,POS.36; NO PAINT REQ.,POS.38
NO PAINT REQ.,POS.31
81482CCOVER, FOG LAMP, LH
main81482-WC007iK15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
NO PAINT REQ.,POS.12; NO PAINT REQ.,POS.13; NO PAINT REQ.,POS.15; NO PAINT REQ.,POS.18; NO PAINT REQ.,POS.19; NO PAINT REQ.,POS.21; POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
NO PAINT REQ.,POS.11; NO PAINT REQ.,POS.17; NO PAINT REQ.,POS.23
main81482-WC013iK15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202207
NO PAINT REQ.,POS.24; NO PAINT REQ.,POS.25; NO PAINT REQ.,POS.27; NO PAINT REQ.,POS.28; NO PAINT REQ.,POS.32; NO PAINT REQ.,POS.33; NO PAINT REQ.,POS.35; NO PAINT REQ.,POS.36; NO PAINT REQ.,POS.38
NO PAINT REQ.,POS.31
90118WC051
main90118-WC051
90118WC063
main90118-WC063
90118WC064
main90118-WC064
90118WC155
main90118-WC155
90118WCC84
main90118-WCC84
20 parts on this diagram · 3 diagrams in section
