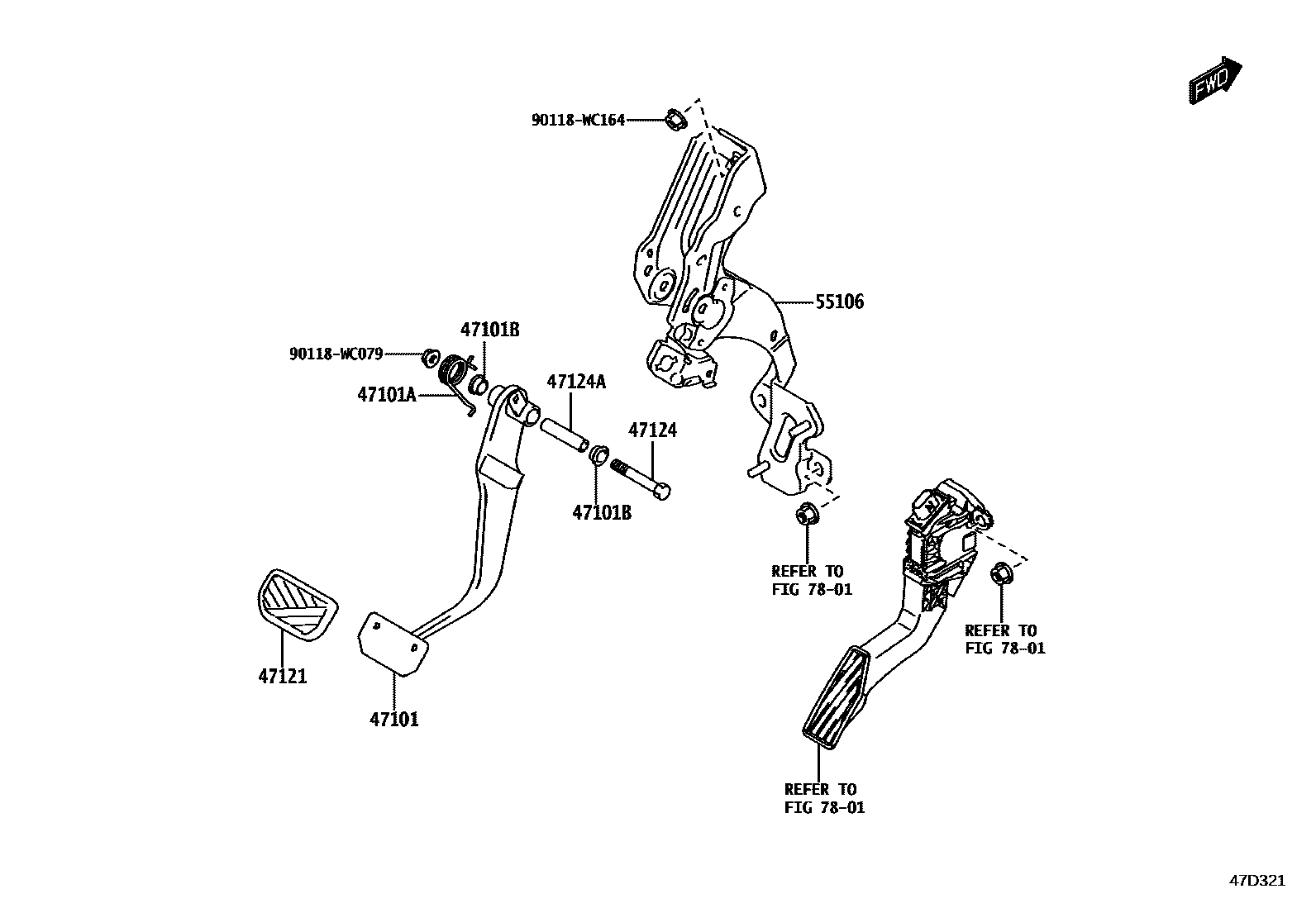

BRAKE PEDAL & BRACKET
47101PEDAL SUB-ASSY, BRAKE
POS.10; POS.12; POS.13; POS.14; POS.24; POS.25; POS.26; POS.6; POS.7
POS.15; POS.16; POS.27; POS.30; POS.8; POS.9
POS.1; POS.18; POS.19; POS.2; POS.20; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37
POS.11; POS.17; POS.23; POS.31
47101ASPRING(FOR BRAKE PEDAL RETURN)
main90118-WC796iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.24; POS.25; POS.26; POS.27; POS.30; POS.6; POS.7; POS.8; POS.9
main90118-WC797iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
47101BBUSH(FOR BRAKE PEDAL)
main90118-WC219×2iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
47121PAD, BRAKE PEDAL
POS.11; POS.17; POS.23; POS.31
main47121-WC002iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
47124SHAFT, BRAKE PEDAL
main90118-WC088iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
main90118-WC676iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.24; POS.25; POS.26; POS.27; POS.30; POS.6; POS.7; POS.8; POS.9
47124ACOLLAR(FOR BRAKE PEDAL SHAFT)
main90118-WC713iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
main90118-WC730iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.24; POS.25; POS.26; POS.27; POS.30; POS.6; POS.7; POS.8; POS.9
55106SUPPORT SUB-ASSY, BRAKE PEDAL
main55106-WC001iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.24; POS.25; POS.26; POS.27; POS.30; POS.6; POS.7; POS.8; POS.9
main55106-WC002iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
7801ACCELERATOR LINK
90118WC079
main90118-WC079
90118WC164
main90118-WC164
10 parts on this diagram · 8 diagrams in section
