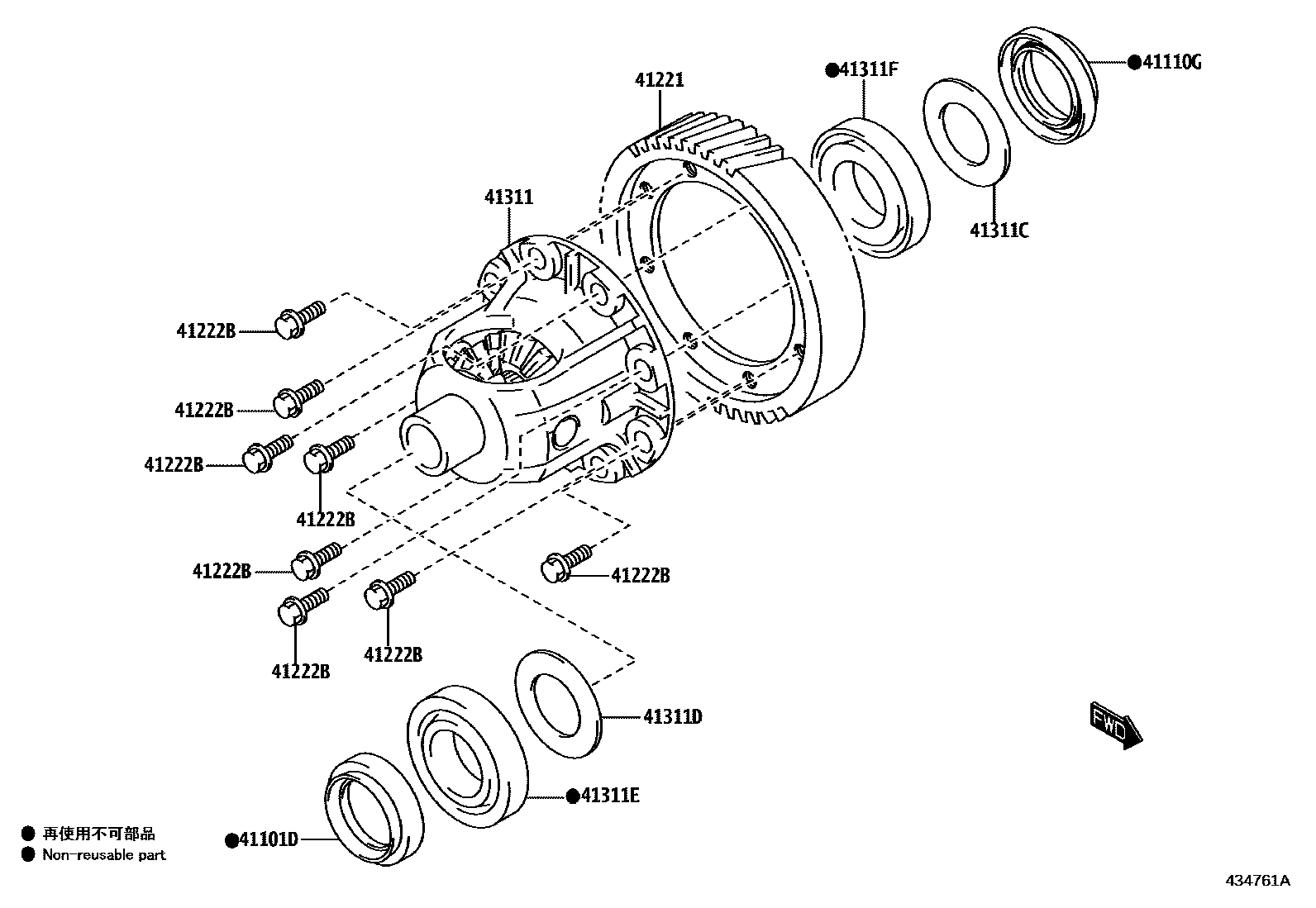

FRONT AXLE HOUSING & DIFFERENTIAL
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
POS.15; POS.16; POS.21; POS.22; POS.27; POS.28; POS.29; POS.30; POS.38; POS.39; POS.4; POS.5; POS.8; POS.9
41110GSEAL, OIL (FOR DIFFERENTIAL SIDE)
main90118-WC421iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,NO.2:REFER ILLUST.; POS.10,NO.2:REFER ILLUST.; POS.12,NO.2:REFER ILLUST.; POS.13,NO.2:REFER ILLUST.; POS.14,NO.2:REFER ILLUST.; POS.18,NO.2:REFER ILLUST.; POS.19,NO.2:REFER ILLUST.; POS.2,NO.2:REFER ILLUST.; POS.20,NO.2:REFER ILLUST.; POS.24,NO.2:REFER ILLUST.; POS.25,NO.2:REFER ILLUST.; POS.26,NO.2:REFER ILLUST.; POS.3,NO.2:REFER ILLUST.; POS.32,NO.2:REFER ILLUST.; POS.33,NO.2:REFER ILLUST.; POS.34,NO.2:REFER ILLUST.; POS.35,NO.2:REFER ILLUST.; POS.36,NO.2:REFER ILLUST.; POS.37,NO.2:REFER ILLUST.; POS.6,NO.2:REFER ILLUST.; POS.7,NO.2:REFER ILLUST.
POS.15; POS.16; POS.21; POS.22; POS.27; POS.28; POS.29; POS.30; POS.38; POS.39; POS.4; POS.5; POS.8; POS.9
main90118-WCA78iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,NO.1:REFER ILLUST.; POS.10,NO.1:REFER ILLUST.; POS.12,NO.1:REFER ILLUST.; POS.13,NO.1:REFER ILLUST.; POS.14,NO.1:REFER ILLUST.; POS.18,NO.1:REFER ILLUST.; POS.19,NO.1:REFER ILLUST.; POS.2,NO.1:REFER ILLUST.; POS.20,NO.1:REFER ILLUST.; POS.24,NO.1:REFER ILLUST.; POS.25,NO.1:REFER ILLUST.; POS.26,NO.1:REFER ILLUST.; POS.3,NO.1:REFER ILLUST.; POS.32,NO.1:REFER ILLUST.; POS.33,NO.1:REFER ILLUST.; POS.34,NO.1:REFER ILLUST.; POS.35,NO.1:REFER ILLUST.; POS.36,NO.1:REFER ILLUST.; POS.37,NO.1:REFER ILLUST.; POS.6,NO.1:REFER ILLUST.; POS.7,NO.1:REFER ILLUST.
41221GEAR, FRONT DIFFERENTIAL RING
POS.15; POS.16; POS.21; POS.22; POS.27; POS.28; POS.29; POS.30; POS.38; POS.39; POS.4; POS.5; POS.8; POS.9
main41221-WC007iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
main90118-WC094×10iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
POS.15; POS.16; POS.21; POS.22; POS.27; POS.28; POS.29; POS.30; POS.38; POS.39; POS.4; POS.5; POS.8; POS.9
41311CASE, FRONT DIFFERENTIAL
main41301-WC002iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
POS.15; POS.16; POS.21; POS.22; POS.27; POS.28; POS.29; POS.30; POS.38; POS.39; POS.4; POS.5; POS.8; POS.9
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
POS.15; POS.16; POS.21; POS.22; POS.27; POS.28; POS.29; POS.30; POS.38; POS.39; POS.4; POS.5; POS.8; POS.9
main90118-WCA84iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.00,POS.1; T=1.00,POS.10; T=1.00,POS.12; T=1.00,POS.13; T=1.00,POS.14; T=1.00,POS.18; T=1.00,POS.19; T=1.00,POS.2; T=1.00,POS.20; T=1.00,POS.24; T=1.00,POS.25; T=1.00,POS.26; T=1.00,POS.3; T=1.00,POS.32; T=1.00,POS.33; T=1.00,POS.34; T=1.00,POS.35; T=1.00,POS.36; T=1.00,POS.37; T=1.00,POS.6; T=1.00,POS.7
main90118-WCA85iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.04,POS.1; T=1.04,POS.10; T=1.04,POS.12; T=1.04,POS.13; T=1.04,POS.14; T=1.04,POS.18; T=1.04,POS.19; T=1.04,POS.2; T=1.04,POS.20; T=1.04,POS.24; T=1.04,POS.25; T=1.04,POS.26; T=1.04,POS.3; T=1.04,POS.32; T=1.04,POS.33; T=1.04,POS.34; T=1.04,POS.35; T=1.04,POS.36; T=1.04,POS.37; T=1.04,POS.6; T=1.04,POS.7
main90118-WCA86iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.08,POS.1; T=1.08,POS.10; T=1.08,POS.12; T=1.08,POS.13; T=1.08,POS.14; T=1.08,POS.18; T=1.08,POS.19; T=1.08,POS.2; T=1.08,POS.20; T=1.08,POS.24; T=1.08,POS.25; T=1.08,POS.26; T=1.08,POS.3; T=1.08,POS.32; T=1.08,POS.33; T=1.08,POS.34; T=1.08,POS.35; T=1.08,POS.36; T=1.08,POS.37; T=1.08,POS.6; T=1.08,POS.7
main90118-WCA87iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.12,POS.1; T=1.12,POS.10; T=1.12,POS.12; T=1.12,POS.13; T=1.12,POS.14; T=1.12,POS.18; T=1.12,POS.19; T=1.12,POS.2; T=1.12,POS.20; T=1.12,POS.24; T=1.12,POS.25; T=1.12,POS.26; T=1.12,POS.3; T=1.12,POS.32; T=1.12,POS.33; T=1.12,POS.34; T=1.12,POS.35; T=1.12,POS.36; T=1.12,POS.37; T=1.12,POS.6; T=1.12,POS.7
main90118-WCA88iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.16,POS.1; T=1.16,POS.10; T=1.16,POS.12; T=1.16,POS.13; T=1.16,POS.14; T=1.16,POS.18; T=1.16,POS.19; T=1.16,POS.2; T=1.16,POS.20; T=1.16,POS.24; T=1.16,POS.25; T=1.16,POS.26; T=1.16,POS.3; T=1.16,POS.32; T=1.16,POS.33; T=1.16,POS.34; T=1.16,POS.35; T=1.16,POS.36; T=1.16,POS.37; T=1.16,POS.6; T=1.16,POS.7
main90118-WCA89iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.20,POS.1; T=1.20,POS.10; T=1.20,POS.12; T=1.20,POS.13; T=1.20,POS.14; T=1.20,POS.18; T=1.20,POS.19; T=1.20,POS.2; T=1.20,POS.20; T=1.20,POS.24; T=1.20,POS.25; T=1.20,POS.26; T=1.20,POS.3; T=1.20,POS.32; T=1.20,POS.33; T=1.20,POS.34; T=1.20,POS.35; T=1.20,POS.36; T=1.20,POS.37; T=1.20,POS.6; T=1.20,POS.7
main90118-WCA90iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.24,POS.1; T=1.24,POS.10; T=1.24,POS.12; T=1.24,POS.13; T=1.24,POS.14; T=1.24,POS.18; T=1.24,POS.19; T=1.24,POS.2; T=1.24,POS.20; T=1.24,POS.24; T=1.24,POS.25; T=1.24,POS.26; T=1.24,POS.3; T=1.24,POS.32; T=1.24,POS.33; T=1.24,POS.34; T=1.24,POS.35; T=1.24,POS.36; T=1.24,POS.37; T=1.24,POS.6; T=1.24,POS.7
main90118-WCA91iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.28,POS.1; T=1.28,POS.10; T=1.28,POS.12; T=1.28,POS.13; T=1.28,POS.14; T=1.28,POS.18; T=1.28,POS.19; T=1.28,POS.2; T=1.28,POS.20; T=1.28,POS.24; T=1.28,POS.25; T=1.28,POS.26; T=1.28,POS.3; T=1.28,POS.32; T=1.28,POS.33; T=1.28,POS.34; T=1.28,POS.35; T=1.28,POS.36; T=1.28,POS.37; T=1.28,POS.6; T=1.28,POS.7
main90118-WCA92iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.32,POS.1; T=1.32,POS.10; T=1.32,POS.12; T=1.32,POS.13; T=1.32,POS.14; T=1.32,POS.18; T=1.32,POS.19; T=1.32,POS.2; T=1.32,POS.20; T=1.32,POS.24; T=1.32,POS.25; T=1.32,POS.26; T=1.32,POS.3; T=1.32,POS.32; T=1.32,POS.33; T=1.32,POS.34; T=1.32,POS.35; T=1.32,POS.36; T=1.32,POS.37; T=1.32,POS.6; T=1.32,POS.7
main90118-WCA93iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.36,POS.1; T=1.36,POS.10; T=1.36,POS.12; T=1.36,POS.13; T=1.36,POS.14; T=1.36,POS.18; T=1.36,POS.19; T=1.36,POS.2; T=1.36,POS.20; T=1.36,POS.24; T=1.36,POS.25; T=1.36,POS.26; T=1.36,POS.3; T=1.36,POS.32; T=1.36,POS.33; T=1.36,POS.34; T=1.36,POS.35; T=1.36,POS.36; T=1.36,POS.37; T=1.36,POS.6; T=1.36,POS.7
main90118-WCA94iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.40,POS.1; T=1.40,POS.10; T=1.40,POS.12; T=1.40,POS.13; T=1.40,POS.14; T=1.40,POS.18; T=1.40,POS.19; T=1.40,POS.2; T=1.40,POS.20; T=1.40,POS.24; T=1.40,POS.25; T=1.40,POS.26; T=1.40,POS.3; T=1.40,POS.32; T=1.40,POS.33; T=1.40,POS.34; T=1.40,POS.35; T=1.40,POS.36; T=1.40,POS.37; T=1.40,POS.6; T=1.40,POS.7
main90118-WCA95iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.44,POS.1; T=1.44,POS.10; T=1.44,POS.12; T=1.44,POS.13; T=1.44,POS.14; T=1.44,POS.18; T=1.44,POS.19; T=1.44,POS.2; T=1.44,POS.20; T=1.44,POS.24; T=1.44,POS.25; T=1.44,POS.26; T=1.44,POS.3; T=1.44,POS.32; T=1.44,POS.33; T=1.44,POS.34; T=1.44,POS.35; T=1.44,POS.36; T=1.44,POS.37; T=1.44,POS.6; T=1.44,POS.7
main90118-WCA96iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.48,POS.1; T=1.48,POS.10; T=1.48,POS.12; T=1.48,POS.13; T=1.48,POS.14; T=1.48,POS.18; T=1.48,POS.19; T=1.48,POS.2; T=1.48,POS.20; T=1.48,POS.24; T=1.48,POS.25; T=1.48,POS.26; T=1.48,POS.3; T=1.48,POS.32; T=1.48,POS.33; T=1.48,POS.34; T=1.48,POS.35; T=1.48,POS.36; T=1.48,POS.37; T=1.48,POS.6; T=1.48,POS.7
main90118-WCA97iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.52,POS.1; T=1.52,POS.10; T=1.52,POS.12; T=1.52,POS.13; T=1.52,POS.14; T=1.52,POS.18; T=1.52,POS.19; T=1.52,POS.2; T=1.52,POS.20; T=1.52,POS.24; T=1.52,POS.25; T=1.52,POS.26; T=1.52,POS.3; T=1.52,POS.32; T=1.52,POS.33; T=1.52,POS.34; T=1.52,POS.35; T=1.52,POS.36; T=1.52,POS.37; T=1.52,POS.6; T=1.52,POS.7
main90118-WCA98iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.56,POS.1; T=1.56,POS.10; T=1.56,POS.12; T=1.56,POS.13; T=1.56,POS.14; T=1.56,POS.18; T=1.56,POS.19; T=1.56,POS.2; T=1.56,POS.20; T=1.56,POS.24; T=1.56,POS.25; T=1.56,POS.26; T=1.56,POS.3; T=1.56,POS.32; T=1.56,POS.33; T=1.56,POS.34; T=1.56,POS.35; T=1.56,POS.36; T=1.56,POS.37; T=1.56,POS.6; T=1.56,POS.7
main90118-WCA99iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.60,POS.1; T=1.60,POS.10; T=1.60,POS.12; T=1.60,POS.13; T=1.60,POS.14; T=1.60,POS.18; T=1.60,POS.19; T=1.60,POS.2; T=1.60,POS.20; T=1.60,POS.24; T=1.60,POS.25; T=1.60,POS.26; T=1.60,POS.3; T=1.60,POS.32; T=1.60,POS.33; T=1.60,POS.34; T=1.60,POS.35; T=1.60,POS.36; T=1.60,POS.37; T=1.60,POS.6; T=1.60,POS.7
main90118-WCB00iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.64,POS.1; T=1.64,POS.10; T=1.64,POS.12; T=1.64,POS.13; T=1.64,POS.14; T=1.64,POS.18; T=1.64,POS.19; T=1.64,POS.2; T=1.64,POS.20; T=1.64,POS.24; T=1.64,POS.25; T=1.64,POS.26; T=1.64,POS.3; T=1.64,POS.32; T=1.64,POS.33; T=1.64,POS.34; T=1.64,POS.35; T=1.64,POS.36; T=1.64,POS.37; T=1.64,POS.6; T=1.64,POS.7
main90118-WCB01iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.68,POS.1; T=1.68,POS.10; T=1.68,POS.12; T=1.68,POS.13; T=1.68,POS.14; T=1.68,POS.18; T=1.68,POS.19; T=1.68,POS.2; T=1.68,POS.20; T=1.68,POS.24; T=1.68,POS.25; T=1.68,POS.26; T=1.68,POS.3; T=1.68,POS.32; T=1.68,POS.33; T=1.68,POS.34; T=1.68,POS.35; T=1.68,POS.36; T=1.68,POS.37; T=1.68,POS.6; T=1.68,POS.7
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
POS.15; POS.16; POS.21; POS.22; POS.27; POS.28; POS.29; POS.30; POS.38; POS.39; POS.4; POS.5; POS.8; POS.9
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
POS.15; POS.16; POS.21; POS.22; POS.27; POS.28; POS.29; POS.30; POS.38; POS.39; POS.4; POS.5; POS.8; POS.9
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
POS.15; POS.16; POS.21; POS.22; POS.27; POS.28; POS.29; POS.30; POS.38; POS.39; POS.4; POS.5; POS.8; POS.9
main90118-WCB69iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
9 parts on this diagram · 4 diagrams in section
