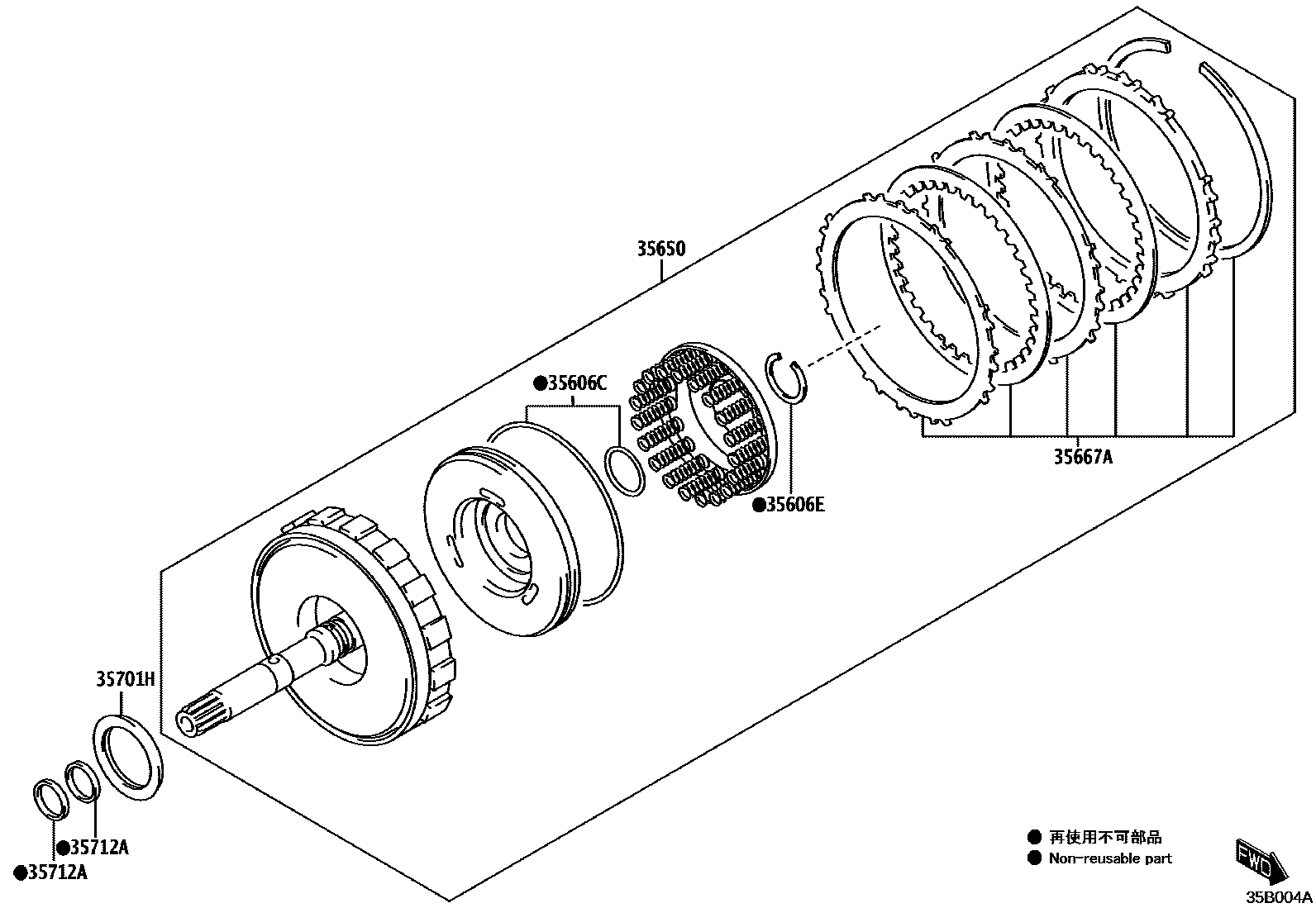

Toyota RUMION — BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35606CRING, O (FOR DIRECT CLUTCH PISTON)
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35650CLUTCH ASSY, REAR MULTIPLE DISC
35667ADISK, DIRECT CLUTCH
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
35712ARING, INPUT SHAFT OIL SEAL
6 parts on this diagram · 3 diagrams in section
BRAKE BAND & MULTIPLE DISC CLUTCH (ATM) for Toyota RUMION
This section contains 15 genuine Toyota parts for the BRAKE BAND & MULTIPLE DISC CLUTCH (ATM) system of the Toyota RUMION. Key components include: PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM), BEARING, THRUST NEEDLE ROLLER, RING, O (FOR DIRECT CLUTCH PISTON), RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING), CLUTCH ASSY, FRONT MULTIPLE DISC.
