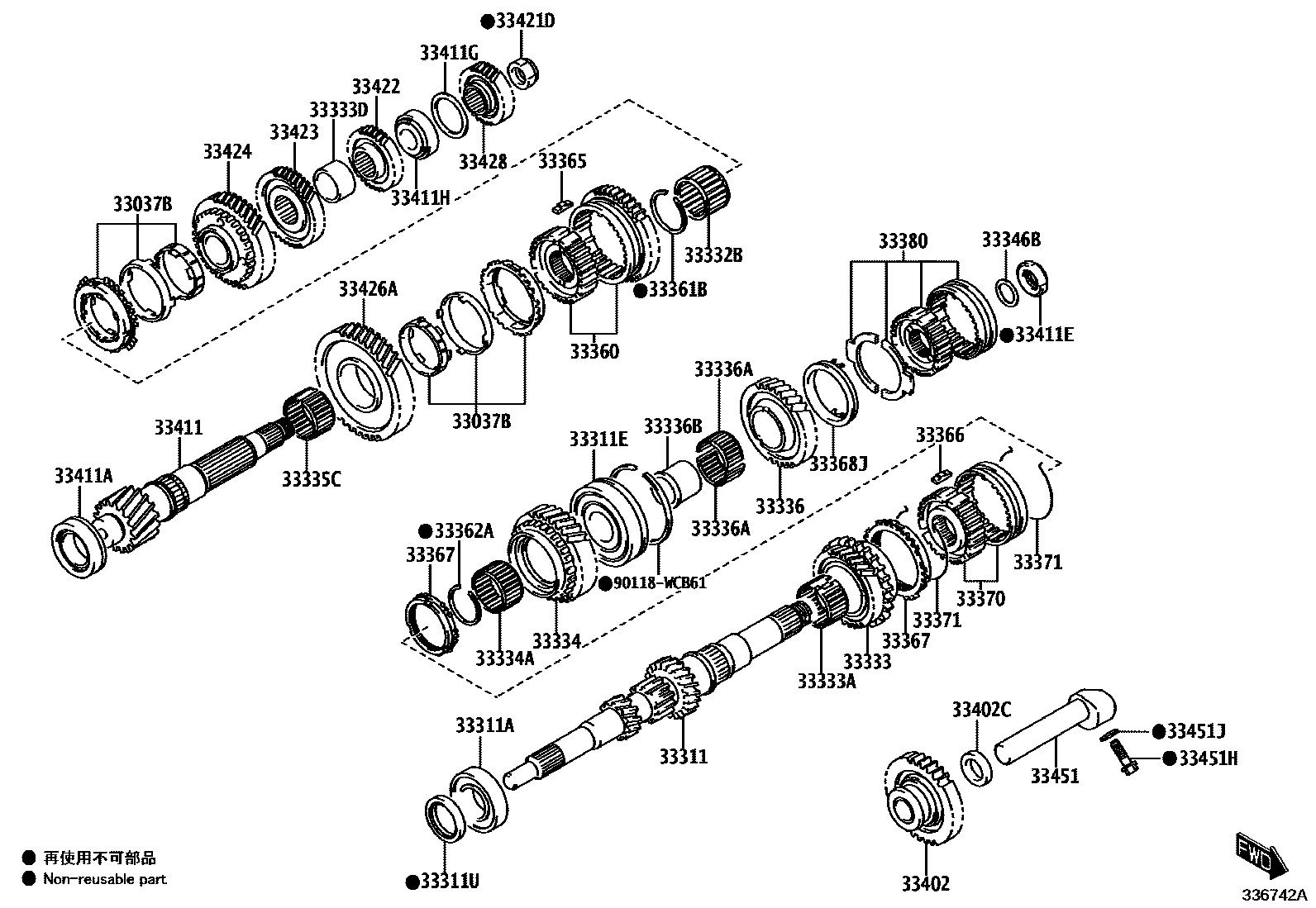

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
main33367-WC003×2iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33311SHAFT, INPUT
main33311-WC003iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33311ABEARING (FOR INPUT SHAFT FRONT)
main90118-WCA59iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
main90118-WCA60iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33311USEAL, OIL (FOR INPUT SHAFT)
main90118-WCA58iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90118-WCA69iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33333GEAR, 3RD
main33034-WC002iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90118-WCA63iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33333DSPACER (FOR 3RD GEAR)
main33431-WC003iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33334GEAR, 4TH
main33035-WC003iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
main90118-WCB67iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90118-WCA66iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33336GEAR, 5TH
main33036-WC005iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
main90118-WCA65×2iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33336BSPACER (FOR 5TH GEAR BEARING)
main90118-WCB66iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33346BWASHER, 5TH GEAR THRUST
main90118-WC882iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33360HUB ASSY, SYNCHRONIZER, NO.1
main33360-WC001iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,VENDOR 1; POS.10,VENDOR 1; POS.12,VENDOR 1; POS.13,VENDOR 1; POS.14,VENDOR 1; POS.18,VENDOR 1; POS.19,VENDOR 1; POS.2,VENDOR 1; POS.20,VENDOR 1; POS.24,VENDOR 1; POS.25,VENDOR 1; POS.26,VENDOR 1; POS.3,VENDOR 1; POS.32,VENDOR 1; POS.33,VENDOR 1; POS.34,VENDOR 1; POS.35,VENDOR 1; POS.36,VENDOR 1; POS.37,VENDOR 1; POS.6,VENDOR 1; POS.7,VENDOR 1
main33360-WC003iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,VENDOR 2; POS.10,VENDOR 2; POS.12,VENDOR 2; POS.13,VENDOR 2; POS.14,VENDOR 2; POS.18,VENDOR 2; POS.19,VENDOR 2; POS.2,VENDOR 2; POS.20,VENDOR 2; POS.24,VENDOR 2; POS.25,VENDOR 2; POS.26,VENDOR 2; POS.3,VENDOR 2; POS.32,VENDOR 2; POS.33,VENDOR 2; POS.34,VENDOR 2; POS.35,VENDOR 2; POS.36,VENDOR 2; POS.37,VENDOR 2; POS.6,VENDOR 2; POS.7,VENDOR 2
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
main90118-WCA70iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
main90118-WCA71iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-WC002×3iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33394-WC001×3iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33367RING, SYNCHRONIZER, NO.1
main33368-WC002×2iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
main33369-WC004iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33370HUB ASSY, SYNCHRONIZER, NO.2
main33370-WC001iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
main33371-WC001×2iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33380HUB ASSY, SYNCHRONIZER, NO.3
main33380-WC001iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33402GEAR SUB-ASSY, REVERSE IDLER
main33402-WC002iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,VENDOR 1; POS.10,VENDOR 1; POS.12,VENDOR 1; POS.13,VENDOR 1; POS.14,VENDOR 1; POS.18,VENDOR 1; POS.19,VENDOR 1; POS.2,VENDOR 1; POS.20,VENDOR 1; POS.24,VENDOR 1; POS.25,VENDOR 1; POS.26,VENDOR 1; POS.3,VENDOR 1; POS.32,VENDOR 1; POS.33,VENDOR 1; POS.34,VENDOR 1; POS.35,VENDOR 1; POS.36,VENDOR 1; POS.37,VENDOR 1; POS.6,VENDOR 1; POS.7,VENDOR 1
main33402-WC003iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,VENDOR 2; POS.10,VENDOR 2; POS.12,VENDOR 2; POS.13,VENDOR 2; POS.14,VENDOR 2; POS.18,VENDOR 2; POS.19,VENDOR 2; POS.2,VENDOR 2; POS.20,VENDOR 2; POS.24,VENDOR 2; POS.25,VENDOR 2; POS.26,VENDOR 2; POS.3,VENDOR 2; POS.32,VENDOR 2; POS.33,VENDOR 2; POS.34,VENDOR 2; POS.35,VENDOR 2; POS.36,VENDOR 2; POS.37,VENDOR 2; POS.6,VENDOR 2; POS.7,VENDOR 2
33402CWASHER, PLATE (FOR REVERSE IDLER)
main90118-WC891iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33411COUNTERSHAFT
main33321-WC005iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90118-WCA61iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33411ENUT(FOR COUNTER GEAR SHAFT)
main90118-WC875iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,VENDOR 1; POS.10,VENDOR 1; POS.12,VENDOR 1; POS.13,VENDOR 1; POS.14,VENDOR 1; POS.18,VENDOR 1; POS.19,VENDOR 1; POS.2,VENDOR 1; POS.20,VENDOR 1; POS.24,VENDOR 1; POS.25,VENDOR 1; POS.26,VENDOR 1; POS.3,VENDOR 1; POS.32,VENDOR 1; POS.33,VENDOR 1; POS.34,VENDOR 1; POS.35,VENDOR 1; POS.36,VENDOR 1; POS.37,VENDOR 1; POS.6,VENDOR 1; POS.7,VENDOR 1
main90118-WCS86iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,VENDOR 2; POS.10,VENDOR 2; POS.12,VENDOR 2; POS.13,VENDOR 2; POS.14,VENDOR 2; POS.18,VENDOR 2; POS.19,VENDOR 2; POS.2,VENDOR 2; POS.20,VENDOR 2; POS.24,VENDOR 2; POS.25,VENDOR 2; POS.26,VENDOR 2; POS.3,VENDOR 2; POS.32,VENDOR 2; POS.33,VENDOR 2; POS.34,VENDOR 2; POS.35,VENDOR 2; POS.36,VENDOR 2; POS.37,VENDOR 2; POS.6,VENDOR 2; POS.7,VENDOR 2
33411GSHIM(FOR COUNTER GEAR SHAFT BEARING SETTING)
main90118-WC894iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=0.65,POS.1; T=0.65,POS.10; T=0.65,POS.12; T=0.65,POS.13; T=0.65,POS.14; T=0.65,POS.18; T=0.65,POS.19; T=0.65,POS.2; T=0.65,POS.20; T=0.65,POS.24; T=0.65,POS.25; T=0.65,POS.26; T=0.65,POS.3; T=0.65,POS.32; T=0.65,POS.33; T=0.65,POS.34; T=0.65,POS.35; T=0.65,POS.36; T=0.65,POS.37; T=0.65,POS.6; T=0.65,POS.7
main90118-WC895iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=0.70,POS.1; T=0.70,POS.10; T=0.70,POS.12; T=0.70,POS.13; T=0.70,POS.14; T=0.70,POS.18; T=0.70,POS.19; T=0.70,POS.2; T=0.70,POS.20; T=0.70,POS.24; T=0.70,POS.25; T=0.70,POS.26; T=0.70,POS.3; T=0.70,POS.32; T=0.70,POS.33; T=0.70,POS.34; T=0.70,POS.35; T=0.70,POS.36; T=0.70,POS.37; T=0.70,POS.6; T=0.70,POS.7
main90118-WC896iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=0.75,POS.1; T=0.75,POS.10; T=0.75,POS.12; T=0.75,POS.13; T=0.75,POS.14; T=0.75,POS.18; T=0.75,POS.19; T=0.75,POS.2; T=0.75,POS.20; T=0.75,POS.24; T=0.75,POS.25; T=0.75,POS.26; T=0.75,POS.3; T=0.75,POS.32; T=0.75,POS.33; T=0.75,POS.34; T=0.75,POS.35; T=0.75,POS.36; T=0.75,POS.37; T=0.75,POS.6; T=0.75,POS.7
main90118-WC897iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=0.80,POS.1; T=0.80,POS.10; T=0.80,POS.12; T=0.80,POS.13; T=0.80,POS.14; T=0.80,POS.18; T=0.80,POS.19; T=0.80,POS.2; T=0.80,POS.20; T=0.80,POS.24; T=0.80,POS.25; T=0.80,POS.26; T=0.80,POS.3; T=0.80,POS.32; T=0.80,POS.33; T=0.80,POS.34; T=0.80,POS.35; T=0.80,POS.36; T=0.80,POS.37; T=0.80,POS.6; T=0.80,POS.7
main90118-WC898iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=0.85,POS.1; T=0.85,POS.10; T=0.85,POS.12; T=0.85,POS.13; T=0.85,POS.14; T=0.85,POS.18; T=0.85,POS.19; T=0.85,POS.2; T=0.85,POS.20; T=0.85,POS.24; T=0.85,POS.25; T=0.85,POS.26; T=0.85,POS.3; T=0.85,POS.32; T=0.85,POS.33; T=0.85,POS.34; T=0.85,POS.35; T=0.85,POS.36; T=0.85,POS.37; T=0.85,POS.6; T=0.85,POS.7
main90118-WC899iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=0.90,POS.1; T=0.90,POS.10; T=0.90,POS.12; T=0.90,POS.13; T=0.90,POS.14; T=0.90,POS.18; T=0.90,POS.19; T=0.90,POS.2; T=0.90,POS.20; T=0.90,POS.24; T=0.90,POS.25; T=0.90,POS.26; T=0.90,POS.3; T=0.90,POS.32; T=0.90,POS.33; T=0.90,POS.34; T=0.90,POS.35; T=0.90,POS.36; T=0.90,POS.37; T=0.90,POS.6; T=0.90,POS.7
main90118-WCA00iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=0.95,POS.1; T=0.95,POS.10; T=0.95,POS.12; T=0.95,POS.13; T=0.95,POS.14; T=0.95,POS.18; T=0.95,POS.19; T=0.95,POS.2; T=0.95,POS.20; T=0.95,POS.24; T=0.95,POS.25; T=0.95,POS.26; T=0.95,POS.3; T=0.95,POS.32; T=0.95,POS.33; T=0.95,POS.34; T=0.95,POS.35; T=0.95,POS.36; T=0.95,POS.37; T=0.95,POS.6; T=0.95,POS.7
main90118-WCA01iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.00,POS.1; T=1.00,POS.10; T=1.00,POS.12; T=1.00,POS.13; T=1.00,POS.14; T=1.00,POS.18; T=1.00,POS.19; T=1.00,POS.2; T=1.00,POS.20; T=1.00,POS.24; T=1.00,POS.25; T=1.00,POS.26; T=1.00,POS.3; T=1.00,POS.32; T=1.00,POS.33; T=1.00,POS.34; T=1.00,POS.35; T=1.00,POS.36; T=1.00,POS.37; T=1.00,POS.6; T=1.00,POS.7
main90118-WCA02iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.05,POS.1; T=1.05,POS.10; T=1.05,POS.12; T=1.05,POS.13; T=1.05,POS.14; T=1.05,POS.18; T=1.05,POS.19; T=1.05,POS.2; T=1.05,POS.20; T=1.05,POS.24; T=1.05,POS.25; T=1.05,POS.26; T=1.05,POS.3; T=1.05,POS.32; T=1.05,POS.33; T=1.05,POS.34; T=1.05,POS.35; T=1.05,POS.36; T=1.05,POS.37; T=1.05,POS.6; T=1.05,POS.7
main90118-WCA03iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.10,POS.1; T=1.10,POS.10; T=1.10,POS.12; T=1.10,POS.13; T=1.10,POS.14; T=1.10,POS.18; T=1.10,POS.19; T=1.10,POS.2; T=1.10,POS.20; T=1.10,POS.24; T=1.10,POS.25; T=1.10,POS.26; T=1.10,POS.3; T=1.10,POS.32; T=1.10,POS.33; T=1.10,POS.34; T=1.10,POS.35; T=1.10,POS.36; T=1.10,POS.37; T=1.10,POS.6; T=1.10,POS.7
main90118-WCA04iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.15,POS.1; T=1.15,POS.10; T=1.15,POS.12; T=1.15,POS.13; T=1.15,POS.14; T=1.15,POS.18; T=1.15,POS.19; T=1.15,POS.2; T=1.15,POS.20; T=1.15,POS.24; T=1.15,POS.25; T=1.15,POS.26; T=1.15,POS.3; T=1.15,POS.32; T=1.15,POS.33; T=1.15,POS.34; T=1.15,POS.35; T=1.15,POS.36; T=1.15,POS.37; T=1.15,POS.6; T=1.15,POS.7
main90118-WCA05iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
T=1.20,POS.1; T=1.20,POS.10; T=1.20,POS.12; T=1.20,POS.13; T=1.20,POS.14; T=1.20,POS.18; T=1.20,POS.19; T=1.20,POS.2; T=1.20,POS.20; T=1.20,POS.24; T=1.20,POS.25; T=1.20,POS.26; T=1.20,POS.3; T=1.20,POS.32; T=1.20,POS.33; T=1.20,POS.34; T=1.20,POS.35; T=1.20,POS.36; T=1.20,POS.37; T=1.20,POS.6; T=1.20,POS.7
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
main90118-WCA62iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33421DNUT(FOR COUNTER GEAR REAR)
main90118-WC875iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,VENDOR 1; POS.10,VENDOR 1; POS.12,VENDOR 1; POS.13,VENDOR 1; POS.14,VENDOR 1; POS.18,VENDOR 1; POS.19,VENDOR 1; POS.2,VENDOR 1; POS.20,VENDOR 1; POS.24,VENDOR 1; POS.25,VENDOR 1; POS.26,VENDOR 1; POS.3,VENDOR 1; POS.32,VENDOR 1; POS.33,VENDOR 1; POS.34,VENDOR 1; POS.35,VENDOR 1; POS.36,VENDOR 1; POS.37,VENDOR 1; POS.6,VENDOR 1; POS.7,VENDOR 1
main90118-WCS86iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,VENDOR 2; POS.10,VENDOR 2; POS.12,VENDOR 2; POS.13,VENDOR 2; POS.14,VENDOR 2; POS.18,VENDOR 2; POS.19,VENDOR 2; POS.2,VENDOR 2; POS.20,VENDOR 2; POS.24,VENDOR 2; POS.25,VENDOR 2; POS.26,VENDOR 2; POS.3,VENDOR 2; POS.32,VENDOR 2; POS.33,VENDOR 2; POS.34,VENDOR 2; POS.35,VENDOR 2; POS.36,VENDOR 2; POS.37,VENDOR 2; POS.6,VENDOR 2; POS.7,VENDOR 2
33422GEAR, COUNTERSHAFT 4TH SPEED
main33422-WC003iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33423GEAR, COUNTERSHAFT 3RD SPEED
main33423-WC002iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33424GEAR, COUNTERSHAFT 2ND SPEED
main33332-WC002iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33426AGEAR, COUNTERSHAFT, 1ST SPEED
main33335-WC002iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33428GEAR, COUNTERSHAFT 5TH
main33428-WC005iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33451SHAFT, REVERSE IDLER GEAR
main33451-WC003iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
main90118-WC393iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,VENDOR 1; POS.10,VENDOR 1; POS.12,VENDOR 1; POS.13,VENDOR 1; POS.14,VENDOR 1; POS.18,VENDOR 1; POS.19,VENDOR 1; POS.2,VENDOR 1; POS.20,VENDOR 1; POS.24,VENDOR 1; POS.25,VENDOR 1; POS.26,VENDOR 1; POS.3,VENDOR 1; POS.32,VENDOR 1; POS.33,VENDOR 1; POS.34,VENDOR 1; POS.35,VENDOR 1; POS.36,VENDOR 1; POS.37,VENDOR 1; POS.6,VENDOR 1; POS.7,VENDOR 1
main90118-WCS87iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1,VENDOR 2; POS.10,VENDOR 2; POS.12,VENDOR 2; POS.13,VENDOR 2; POS.14,VENDOR 2; POS.18,VENDOR 2; POS.19,VENDOR 2; POS.2,VENDOR 2; POS.20,VENDOR 2; POS.24,VENDOR 2; POS.25,VENDOR 2; POS.26,VENDOR 2; POS.3,VENDOR 2; POS.32,VENDOR 2; POS.33,VENDOR 2; POS.34,VENDOR 2; POS.35,VENDOR 2; POS.36,VENDOR 2; POS.37,VENDOR 2; POS.6,VENDOR 2; POS.7,VENDOR 2
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
main90118-WC183iK15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.18; POS.19; POS.2; POS.20; POS.24; POS.25; POS.26; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.6; POS.7
90118WCB61
main90118-WCB61
43 parts on this diagram · 1 diagram in section
