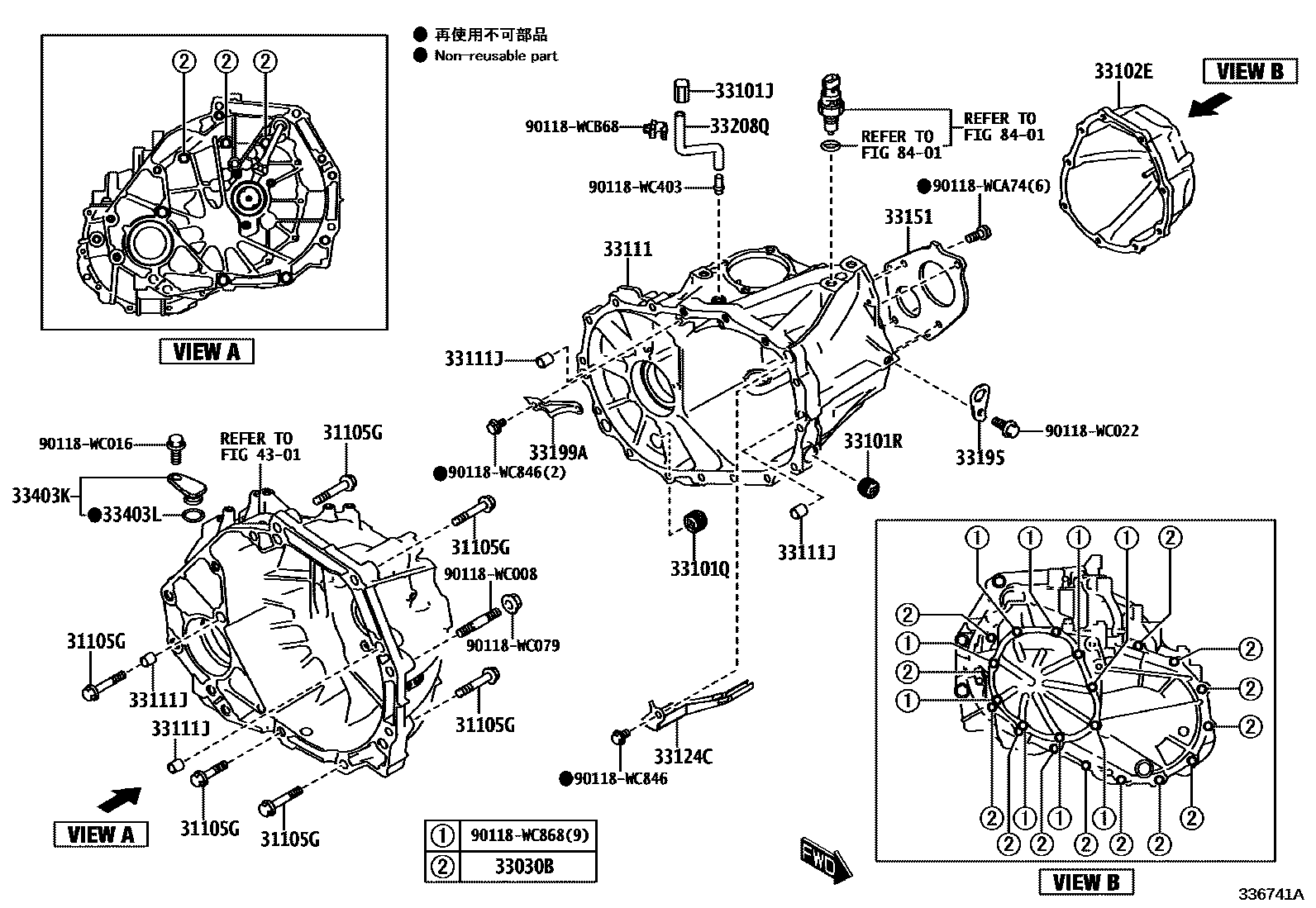

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90118-WC658×6iK15B..I..AFR202108

POS.18

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90118-WC027×16iK15B..I..AFR202108

POS.18

33101JPLUG, BREATHER

main90118-WC424iK15B..I..AFR202108

POS.18

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90118-WC200×2iK15B..I..AFR202108

POS.18

sub90118-WCU53

33101RPLUG, NO.2(FOR TRANSMISSION CASE)

main90118-WC199iK15B..I..AFR202108

POS.18

sub90118-WCU36

33102ECOVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-WC002iK15B..I..AFR202108

POS.18

33111CASE, MANUAL TRANSMISSION

main90118-WCA72iK15B..I..AFR202108

POS.18

sub33111-WC015

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90118-WC066×4iK15B..I..AFR202108

POS.18

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-WC004iK15B..I..AFR202108

POS.18

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-WC001iK15B..I..AFR202108

POS.14,VENDOR 2

main90118-WCE29iK15B..I..AFR202108

POS.10,VENDOR 1

33195HANGER, TRANSMISSION CASE, NO.1

main33195-WC003iK15B..I..AFR202108

POS.18

33199APROTECTOR, BREATHER

main33199-WC002iK15B..I..AFR202108

POS.18

33208QHOSE, BREATHER

main90118-WCA76iK15B..I..AFR202108

POS.18

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-WC001iK15B..I..AFR202108

POS.18

33403LRING, O

main90118-WC214iK15B..I..AFR202108

POS.18

4301

8401

90118WC008

main90118-WC008

90118WC016

main90118-WC016

90118WC022

main90118-WC022

90118WC079

main90118-WC079

90118WC403

main90118-WC403

90118WC846

main90118-WC846

90118WC868

main90118-WC868

90118WCA74

main90118-WCA74

90118WCB68

main90118-WCB68

26 parts on this diagram · 1 diagram in section
