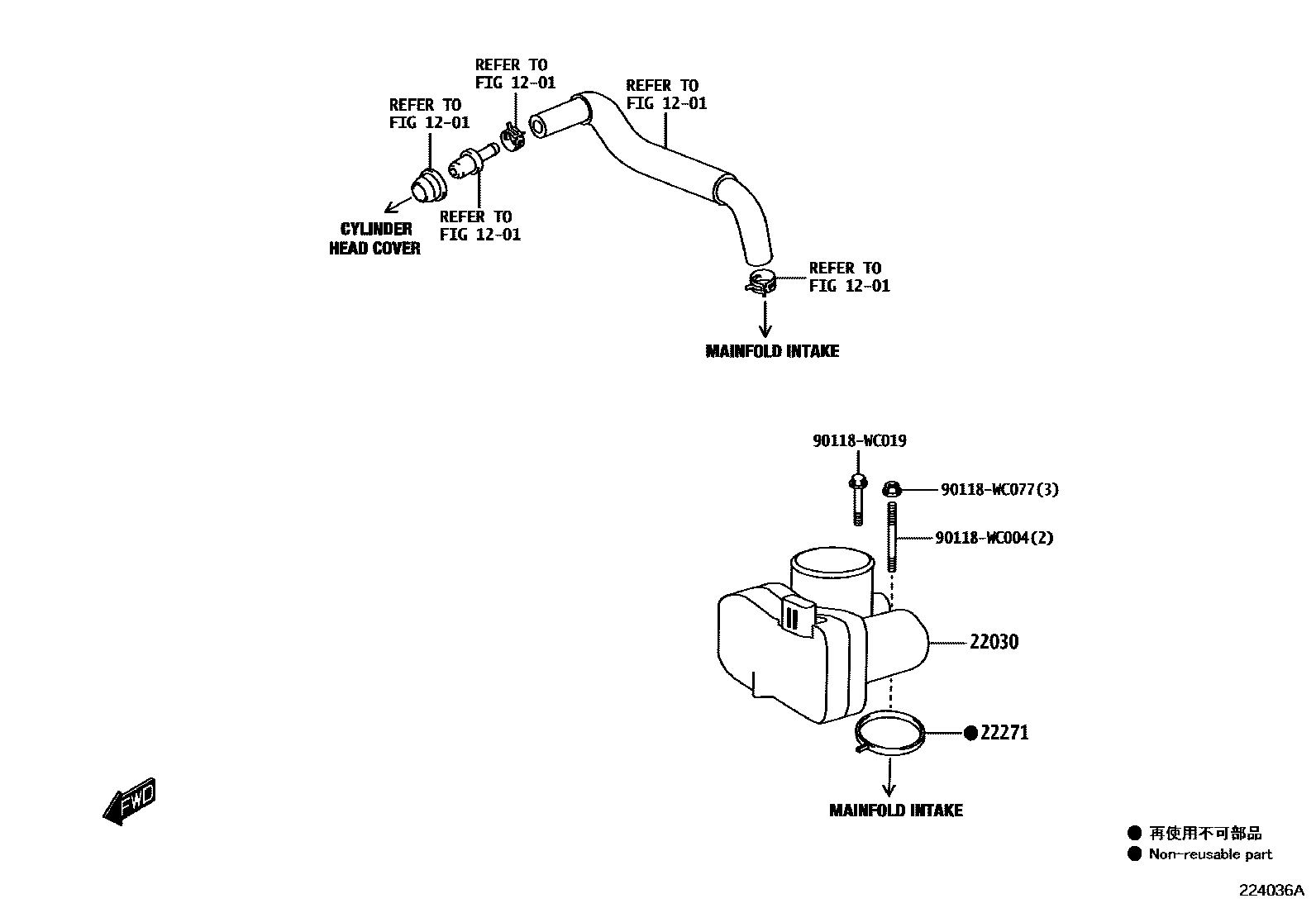

Toyota RUMION — FUEL INJECTION SYSTEM

1201VENTILATION HOSE

→ Go to FIG 12-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

22030-WC002

22271GASKET, THROTTLE BODY

90118WC004

90118WC019

90118WC077

6 parts on this diagram · 5 diagrams in section

FUEL INJECTION SYSTEM for Toyota RUMION

This section contains 21 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota RUMION. Key components include: VENTILATION HOSE, MANIFOLD, AIR CLEANER, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY.
