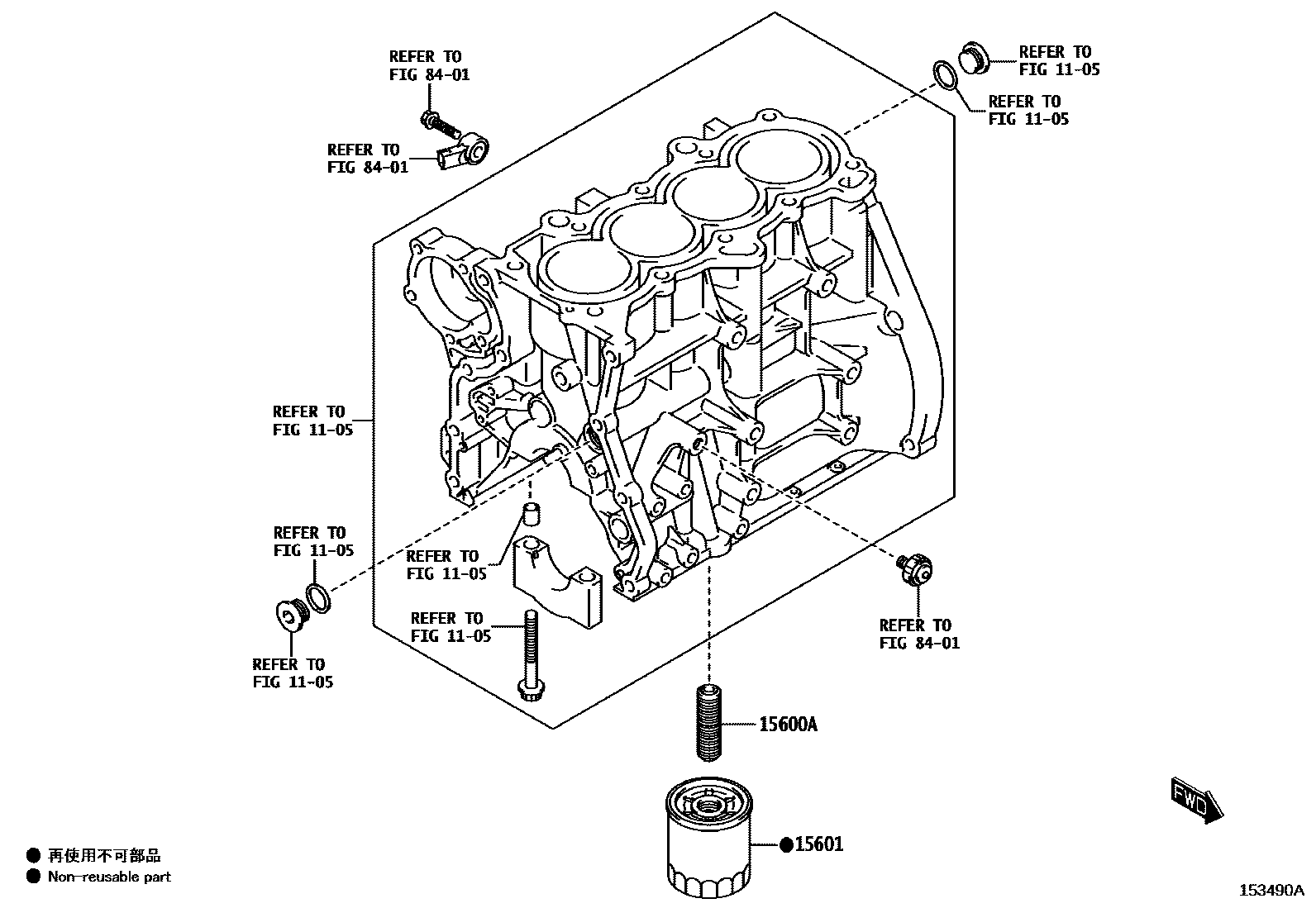

OIL FILTER

1105CYLINDER BLOCK

→ Go to FIG 11-05

15600AUNION(FOR OIL FILTER)

main90118-WC296iK15B..K15B..SUD202205-202311

POS.11; POS.17; POS.23; POS.31

15601FILTER SUB-ASSY, OIL

main90118-WC341iK15B..K15B..SUD202205-202311

POS.11; POS.17; POS.23; POS.31

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4 parts on this diagram · 1 diagram in section
