ANTENNA

0001 1 0002 1 0003 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8602SPEAKER

→ Go to FIG 86-02

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

86101CORD SUB-ASSY, ANTENNA

main86101-WC009iK15C202308

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-WC011iK15C202308

86300JANTENNA ASSY, ROOF

main86300-WC006iK15C202308

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-WC004iK15C202308

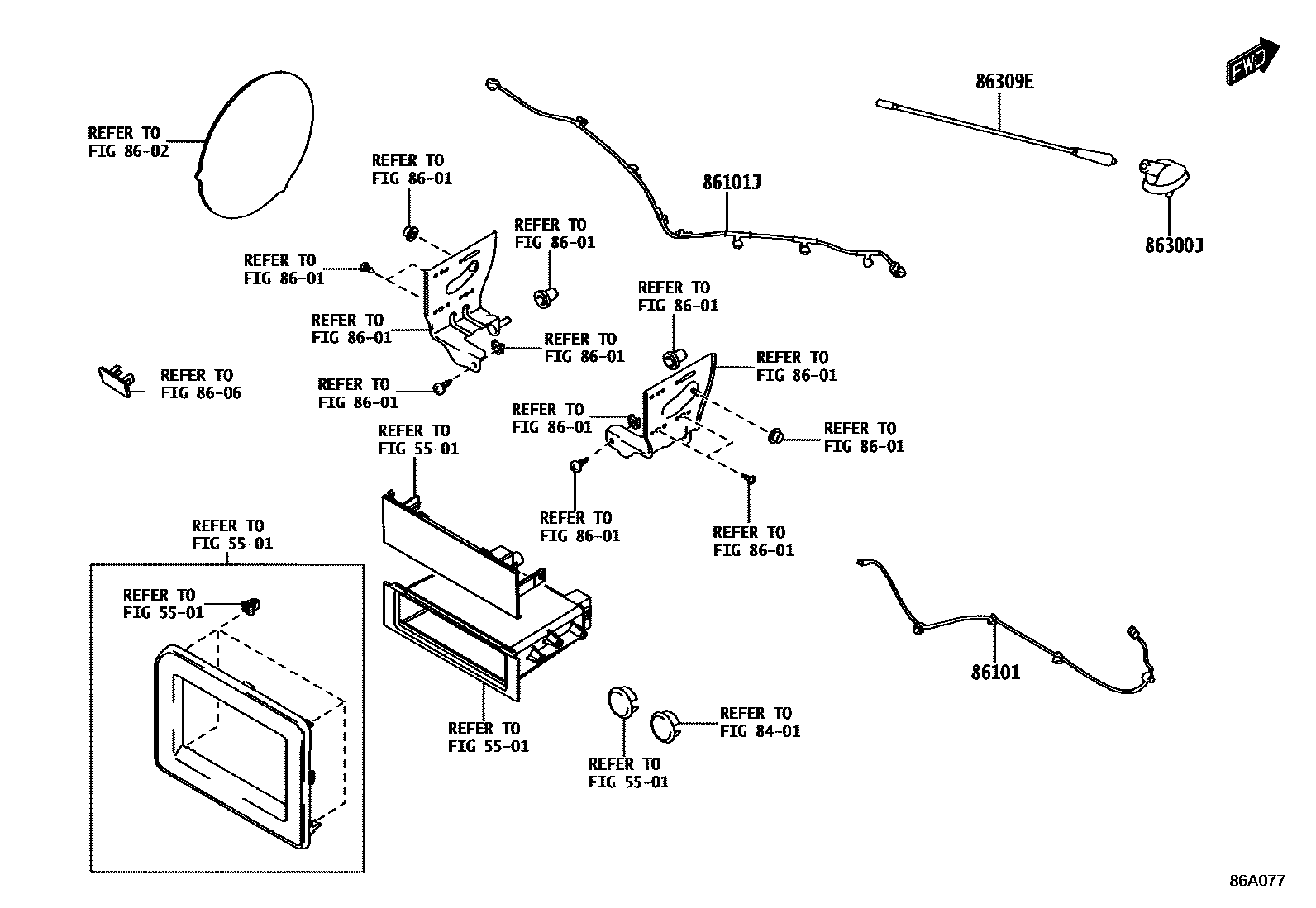

9 parts on this diagram · 3 diagrams in section
