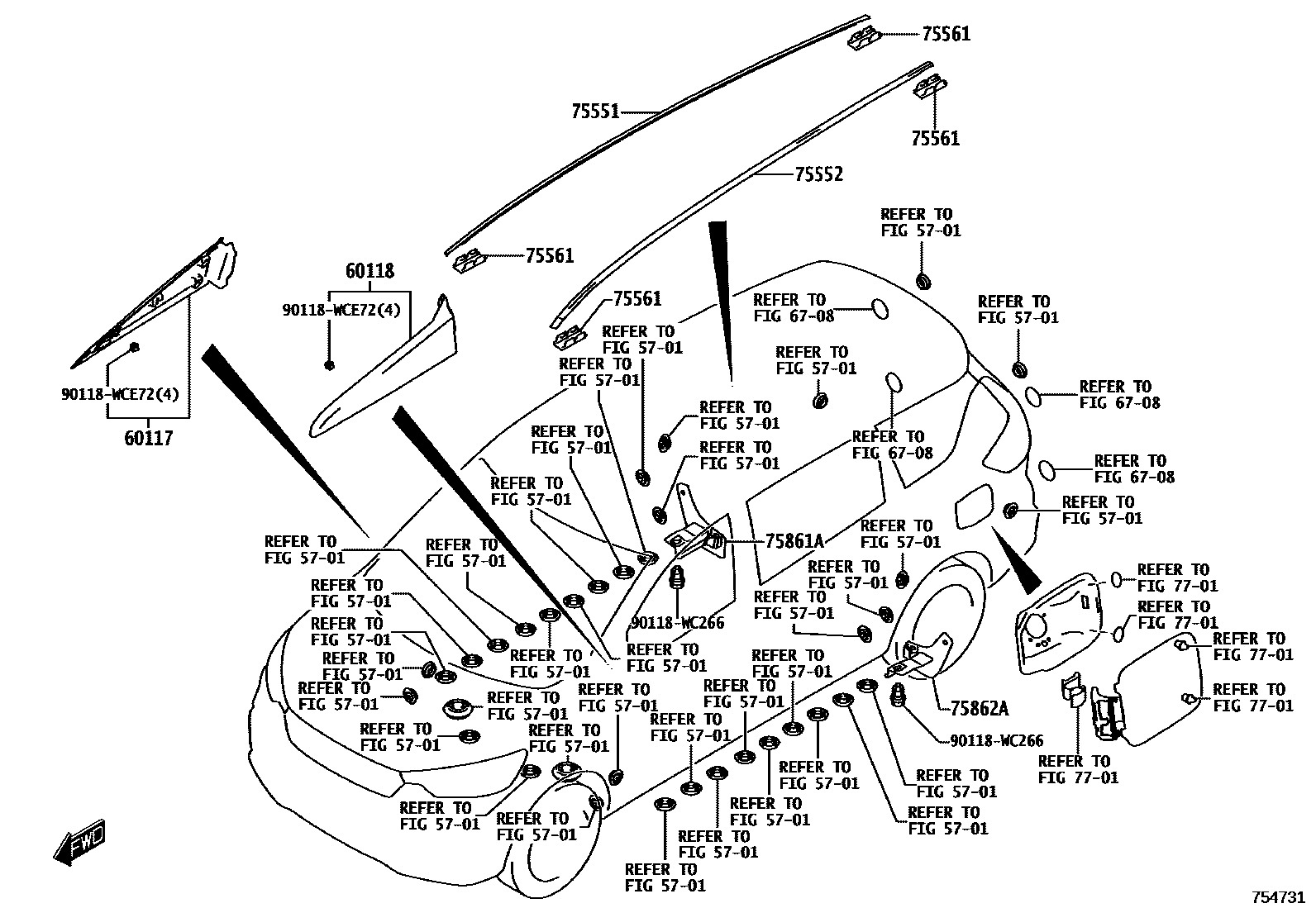

SIDE MOULDING

0001 1 0002 1

5701HOLE PLUG

→ Go to FIG 57-01

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-WC004iK15C202308

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-WC003iK15C202308

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75555-WC002iK15C202308

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75556-WC002iK15C202308

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-WC003×4iK15C202308

75861APROTECTOR, ROCKER PANEL MOULDING, NO.1

main64621-WC003iK15C202308

75862APROTECTOR, ROCKER PANEL MOULDING, NO.2

main64621-WC004iK15C202308

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90118WC266

main90118-WC266

90118WCE72

main90118-WCE72

12 parts on this diagram · 2 diagrams in section
