71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-WC003i202308

POS.1; POS.10; POS.11; POS.13; POS.14; POS.16; POS.2; POS.4; POS.5; POS.7; POS.8; POS.9

main71014-WC004i202308

POS.12; POS.15; POS.3; POS.6

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-WC035i202308

POS.12; POS.15; POS.3; POS.6

main71074-WC036i202308

POS.8; POS.9

main71074-WC037i202308

POS.1; POS.10; POS.13; POS.16; POS.4; POS.7

main71074-WC038i202308

POS.11; POS.14; POS.2; POS.5

71139ACOVER, FRONT SEAT LEG, NO.1

main71139-WC003i202308

71149ACOVER, FRONT SEAT LEG, LH

main71149-WC002i202308

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-WC019i202308

POS.1; POS.10; POS.13; POS.16; POS.4; POS.7; POS.8; POS.9

main71420-WC020i202308

POS.11; POS.12; POS.14; POS.15; POS.2; POS.3; POS.5; POS.6

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-WC001i202308

POS.1; POS.10; POS.11; POS.13; POS.14; POS.16; POS.2; POS.4; POS.5; POS.7; POS.8; POS.9

main71552-WC003i202308

POS.12; POS.15; POS.3; POS.6

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-WC010i202308

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-WC006i202308

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-WC005i202308

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-WC006i202308

71910AHEADREST ASSY, FRONT SEAT

main71910-WC042i202308

POS.11; POS.12; POS.14; POS.15; POS.2; POS.3; POS.5; POS.6

main71910-WC044i202308

POS.1; POS.10; POS.13; POS.16; POS.4; POS.7; POS.8; POS.9

71931SUPPORT, FRONT SEAT HEADREST

main71930-WC009i202308

W(LOCK),VENDOR 1

main71930-WC010i202308

W(LOCK),VENDOR 2

main71931-WC009i202308

W/O(LOCK),VENDOR 1

main71931-WC010i202308

W/O(LOCK),VENDOR 2

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-WC001×2i202308

72129APROTECTOR, SEAT TRACK LOWER RAIL, NO.2

main72129-WC002×2i202308

72129CPROTECTOR, SEAT TRACK LOWER RAIL, NO.3

main72125-WC002×2i202308

72211HANDLE, SEAT TRACK ADJUSTING

main72211-WC003i202308

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-WC003i202308

72266COVER, SEAT TRACK UPPER RAIL, LH

main72125-WC001i202308

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-WC005i202308

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-WC007i202308

POS.12; POS.15; POS.3; POS.6

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

79977HFELT, FRONT SEATBACK, LH

main79977-WC001i202308

POS.1; POS.10; POS.11; POS.13; POS.14; POS.16; POS.2; POS.4; POS.5; POS.7; POS.8; POS.9

main79977-WC005i202308

POS.12; POS.15; POS.3; POS.6

82711WC001WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-WC001

90118WC031

main90118-WC031

90118WC060

main90118-WC060

90118WC231

main90118-WC231

90118WC247

main90118-WC247

90118WC615

main90118-WC615

90118WC616

main90118-WC616

90118WC617

main90118-WC617

90118WC618

main90118-WC618

90118WC621

main90118-WC621

90118WC681

main90118-WC681

90118WC728

main90118-WC728

90118WC729

main90118-WC729

90118WCA27

main90118-WCA27

90118WCE67

main90118-WCE67

90118WCF66

main90118-WCF66

90118WCF94

main90118-WCF94

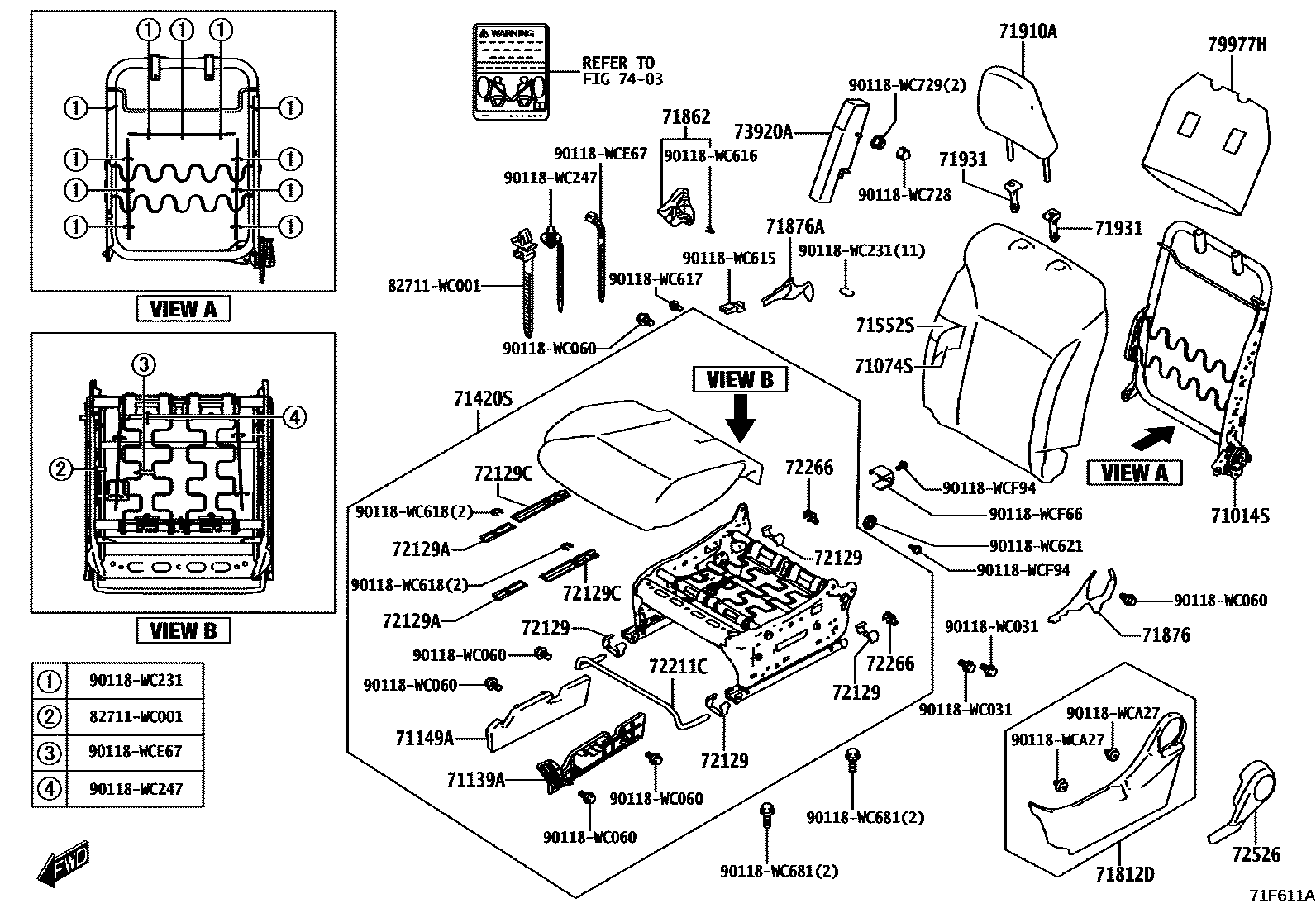

FRONT SEAT & SEAT TRACK
